D-Link DIR-850L User Manual

82D-Link DIR-850L User Manual
Section 3 - Conguration

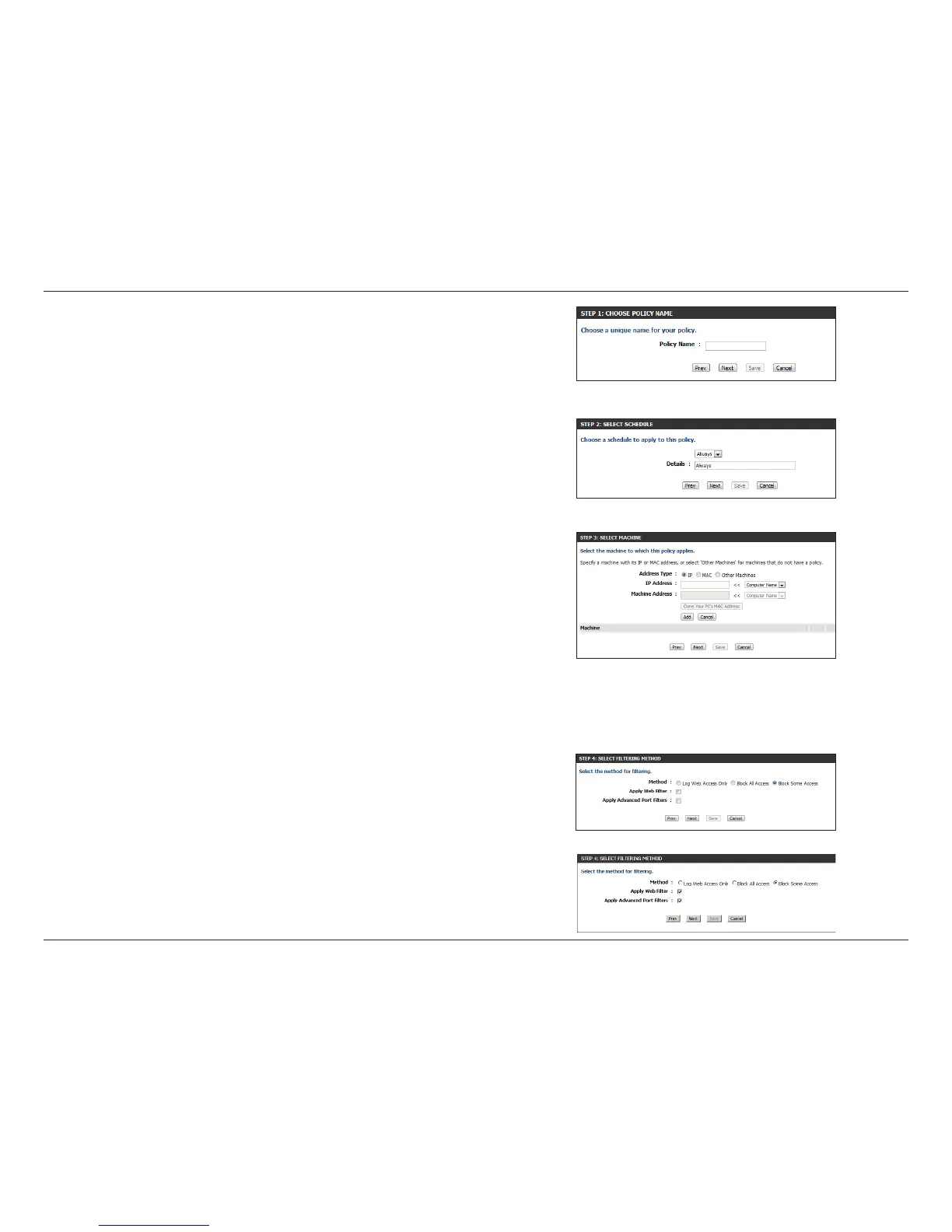

Enter a name for the policy and then click Next to continue.
Select a schedule (i.e., Always) from the drop-down menu and then
click Next to continue.
Enter the following information and then click Next to continue.
• Address Type - Select IP address, MAC address, or Other
Machines.
• IP Address - Enter the IP address of the computer you want
to apply the rule to.
• Machine Address - Enter the PC MAC address or click on
Clone Your PCs MAC Address.
Click Add and then click Next to continue.
Select the ltering method.
If you choose to Block Some Access, check Apply Web Filter and/or
Apply Advanced Port Filters.
Click Next to continue.

D-Link DIR-850L Specifications

Operating Environment

operating temperature	32 ~ 104 °F (0 ~ 40 °C)
non-operating temperature	-4 ~ 149 °F (-20 ~ 65 °C)
operating humidity	10% - 90% non-condensing

Power

input voltage	100~240 V (±20%), 50~60 Hz
output voltage	DC 12 V
output current	2 A

Wireless Specifications

wireless interface 2.4 GHz	IEEE 802.11b/g/n
wireless interface 5 GHz	IEEE 802.11a/n/ac
antenna type	Two dual-band internal antennas (2.4 GHz and 5 GHz)

Weight and Dimensions

dimensions	93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
weight	330 grams (11.6 ounces)
