Hardware Overview

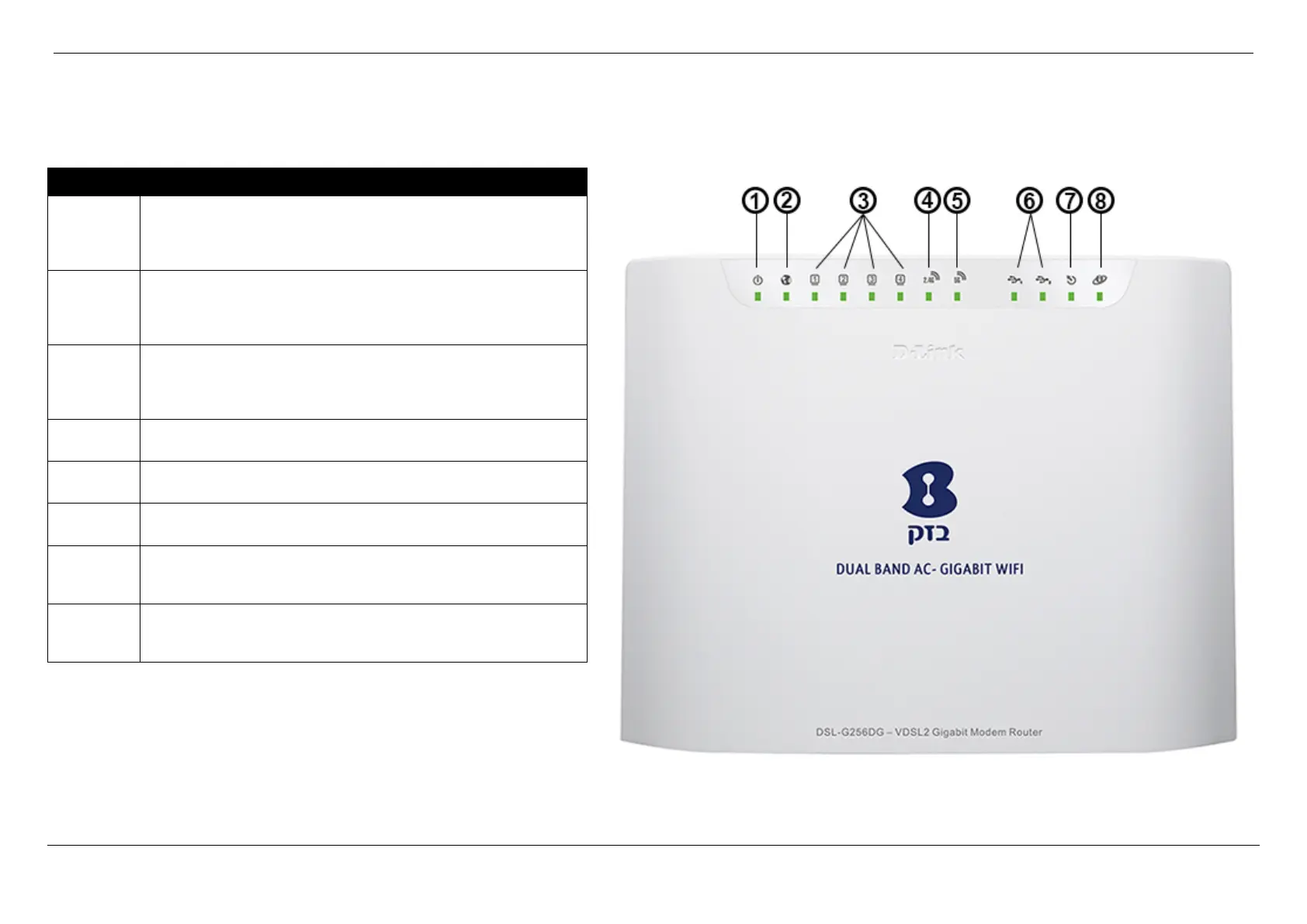

Front Panel
Number Description
1
Power - A steady green light indicates the unit is powered on. When
the device is powered off this remains dark. During the Power-On
Self-Test this light will be red. If this light remains red after the POST,
a malfunction has occurred.
2
WAN - A solid light indicates a valid link on startup. This light will
blink when there is activity currently passing through the port. A
green light will be illuminated for a 10/100Mbps connection and an
amber light will be illuminated for a 1000Mbps connection.
3
LAN - A solid light indicates a valid link on startup. This light will blink
when there is activity currently passing through the Ethernet port. A
green light will be illuminated for a 10/100Mbps connection and an
amber light will be illuminated for a 1000Mbps connection.
4
2.4GHz WLAN - Steady green light indicates a wireless connection.
A blinking green light indicates activity on the WLAN.
5
5GHz WLAN - Steady green light indicates a wireless connection. A
blinking green light indicates activity on the WLAN.
6
USB - Steady green light indicates a successful USB connection.
Dark if no USB device is connected.
7
DSL - Steady green light indicates a valid VDSL connection. This will
light after the VDSL negotiation process has been settled. A blinking
green light indicates activity on the WAN (VDSL) interface.
8
Internet - Steady green light indicates a successful Internet
connection. Steady red light indicates failed Internet connection. Dark
if no WAN protocol is configured.
