[FRONT WHEEL REMOVAL]
① Raise the front wheel off the ground
by placing a support block under the
engine.
② Loosen the oval screw and remove the
speedometer cable.
③ Remove the front caliper assembly
from the front fork by removing the
fixing bolts.
④ Loosen the axle nut.
⑤ Withdraw the front wheel axle and
remove the front wheel.
⑥ Install in the reverse order of removal.
●Fit the caliper over the disc, taking care
not to damage the brake pads. Install
the caliper fixing bolts, and tighten to a
torque of : 2.7kgf
··
m
●Tighten the front axle nut to the specified
torque.
FRONT AXLE NUT TORQUE
: 6kgf
··
m
⑦ After assembling, operate brake for a
number of times and see if wheel is
turning smoothly without getting
interruption.

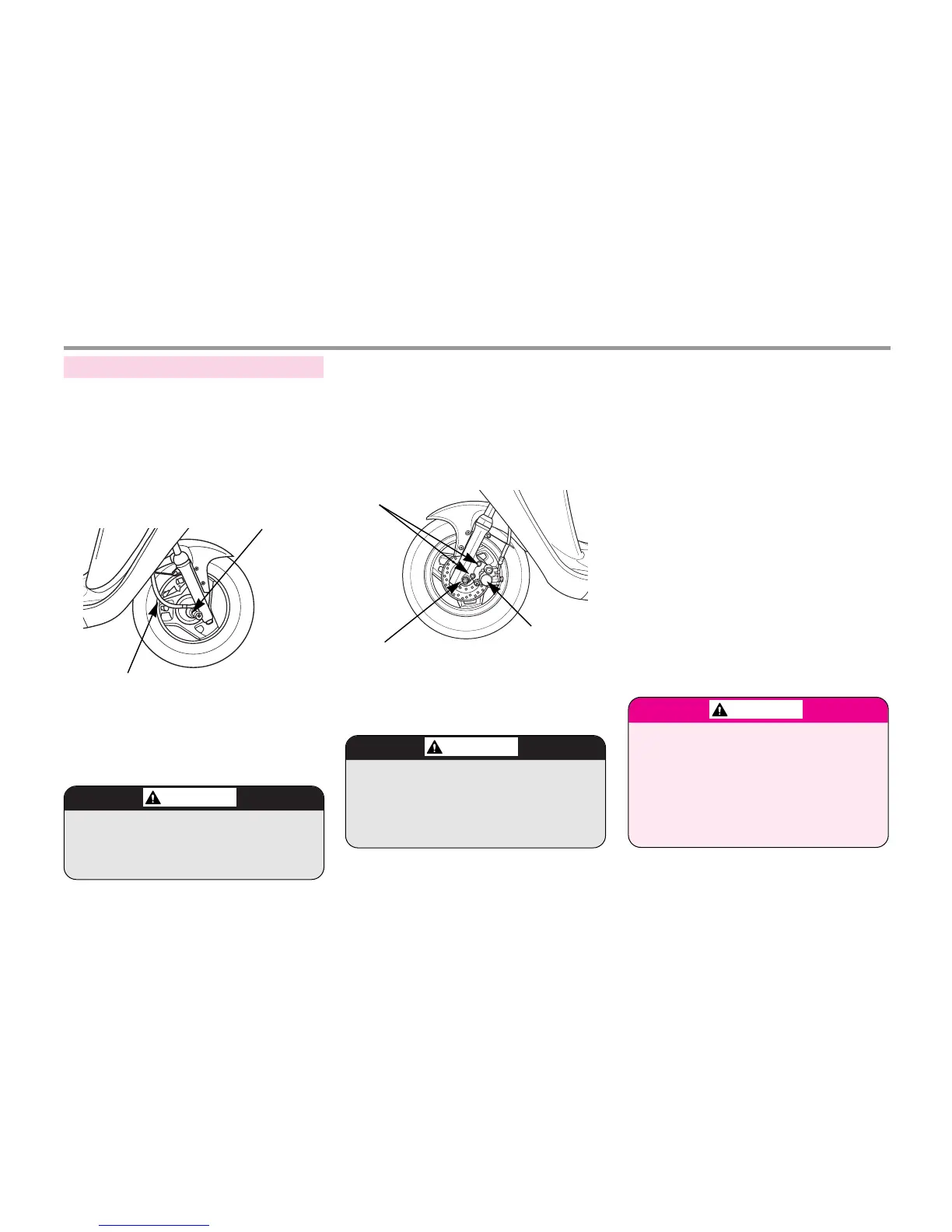

WHEEL REMOVAL
FRONTWHEELAXLE
SPEEDOMETERCABLE
FIXINGBOLTS
AXLENUT
FRONT
CALIPER
CAUTION
●Do not operate brake lever after the
front wheel is removed. It will make
wheel assembling difficult.
CAUTION
●When installing the wheel, care- fully
fit the left brake disk between the
brake pads to avoid damaging the
pads.
WARNING
●If a torque wrench was not used for
installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.
