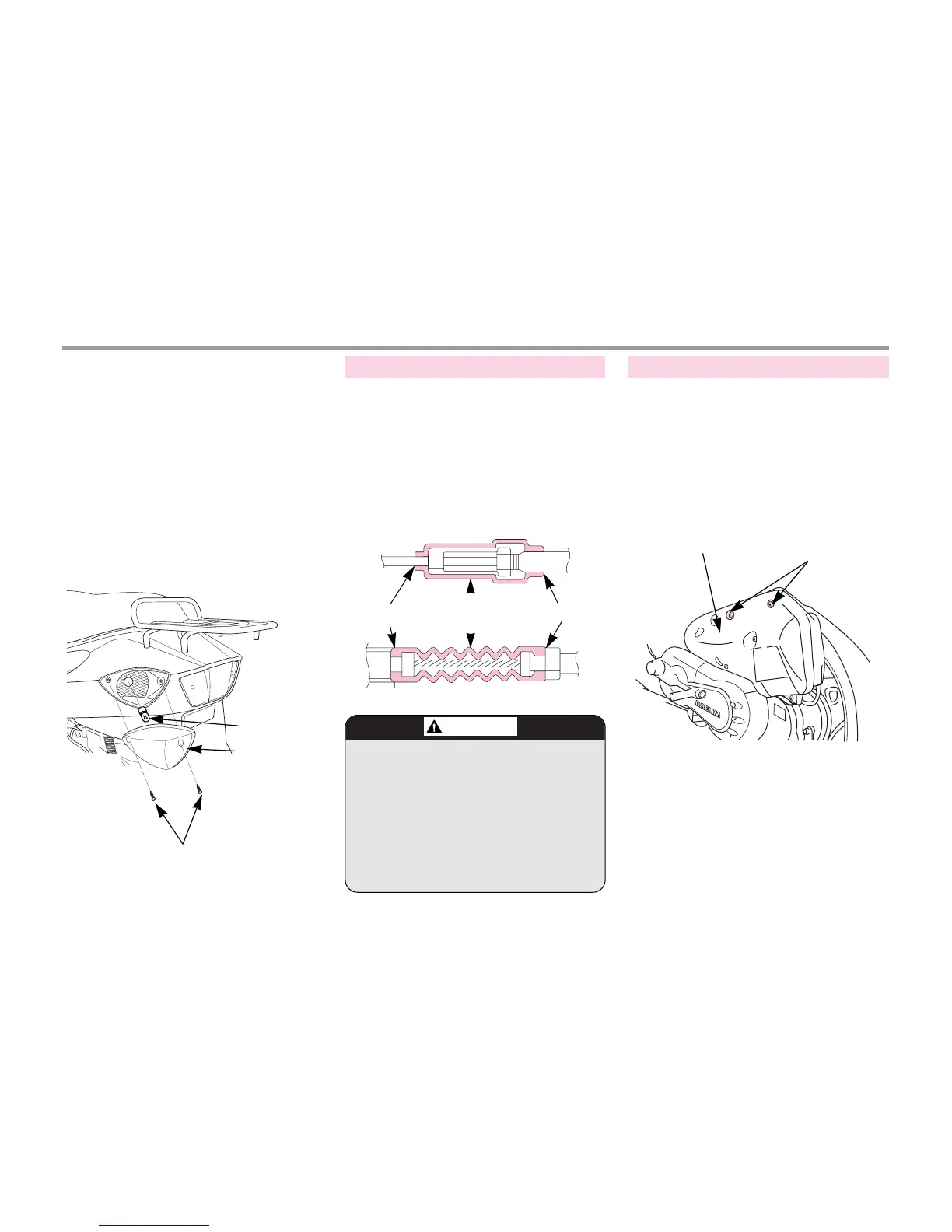

<Rear Winker Bulb>
① Loosen two screws to disassemble a
winker lens.
② Rotate a bulb to counterclockwise to
disassemble.
③ Replace it with new bulb. Apply
reverse order of disassembly for
assembly.
REAR WINKER BULB : 12V RY 10W
A rubber part is assembled on the cable to
protect the inner cable.
Make sure that this part is placed firmly
around the correct part of the cable.
When washing the car, do not directly
spray water on to the rubber part is dirty,
use a dry cloth to clean this area.
<REMOVAL>
① Loosen the 5 washer screws and
remove the air cleaner case cover.
② Inspect the air cleaner element.
③ Install in the reverse order of removal.
45
SCREWS
BULB
WINKERLENS
CABLE RUBBER PART
AIR CLEANER ELEMENT INSPECTION
●Infiltration of the foreign materials or
water caused by damage of lever
(disengagement, tearing, etc.) may
cause freezing in winter season
resulting in faulty operation, sudden
accelation and braking force decrease.
If any damage is found, replace with
the new on immediately.
INSPECTIONPART INSPECTIONPARTRUBBER
SCREWS
AIRCLEANERCASECOVER
