Description of Each Block
-15-

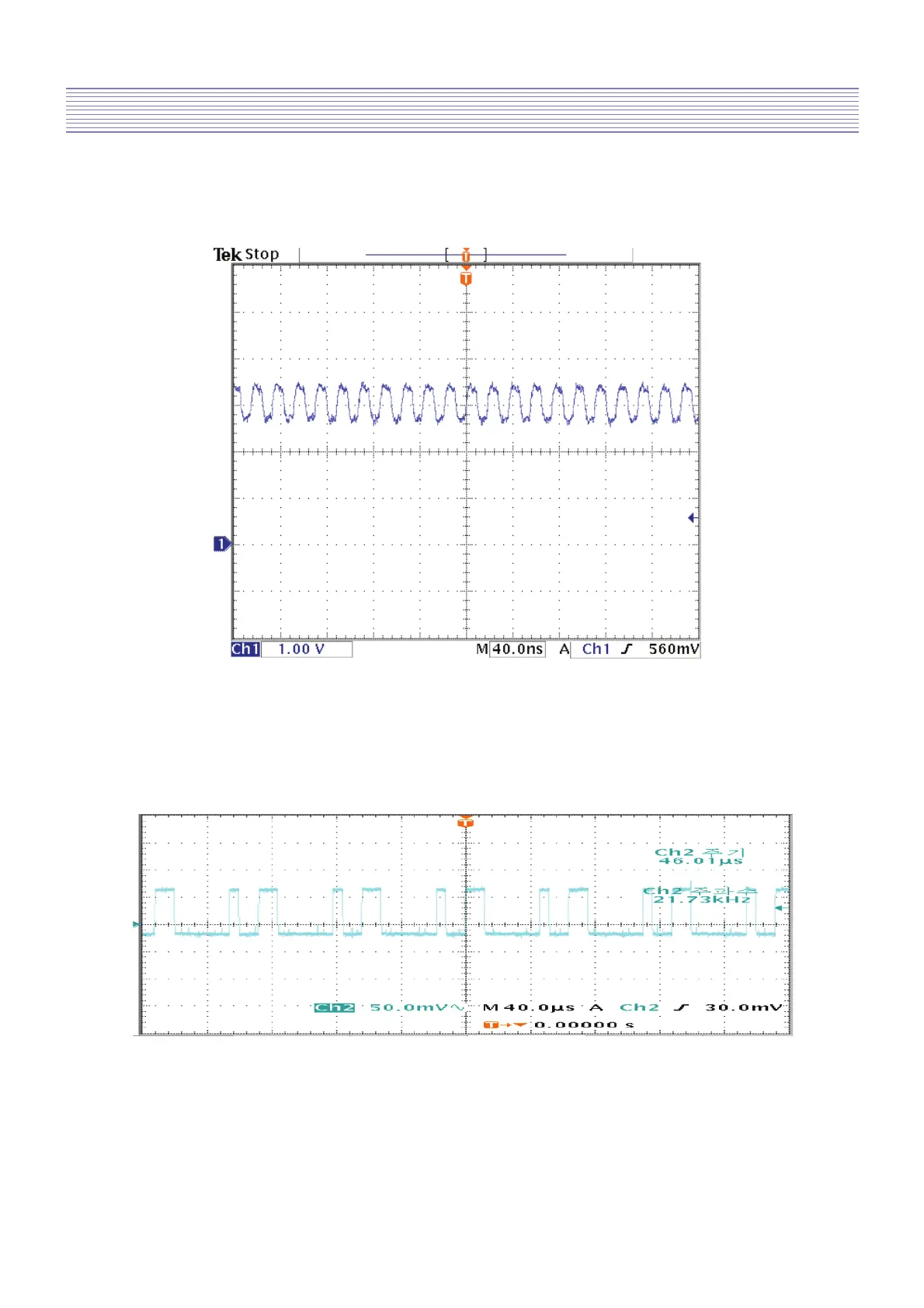

4-2-4. HDMI signal
Location : RC465, RC466, RC467, RC468, RC469, RC470, RC471, RC472
4-2-5. R/G/B PROCESSING(SCART1, TELETEXT R/G/B)
R signal (input to IC505)
Location : RC450
14
16
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
2
1 Safety Precautions
3
2 Product Specification
4
Available Input Signal
6
3 Block Diagram
7
4 Description of each Block
8
Block Diagram of Main IC and TP
8
Overview
9
Composite Video, Y/C(S-Video) and SCART(CVBS, RGB) Composite Video
9
DTV/DVD Signal
11
Pc(Personal Computer) Signal
13
HDMI Signal
15
R/G/B Processing(Scart1, Teletext R/G/B)
15
Audio Signal Processing, KEY, and LED
17
Power Pcb
22
5 Service Mode
25
Check Initial Menu Data
25
Entering SERVICE MODE
26
6 WHITE BALANCE Adjusting Method
29
7 Main Pcbs Trouble Diagnosis
30
MAIN PCB Trouble Diagnosis
30
Common Checking Process When "No Signal of Noraster
30
When no Sound
37
When Control Key Does Not Operate
39
When Remote Controller Does Not Operate
40
Power Pcb
42
8 Trouble Diagnosis
43
Facts You Must Know When Diagnosis and Repairing
43
Typical Symptoms of PCB Problem or Bad Connection
44
9 Structure of LCD Set
45
10 Exploded View
47
11 Part List
53
Part List
59
12 Circuit Diagram
67
