- 5 -

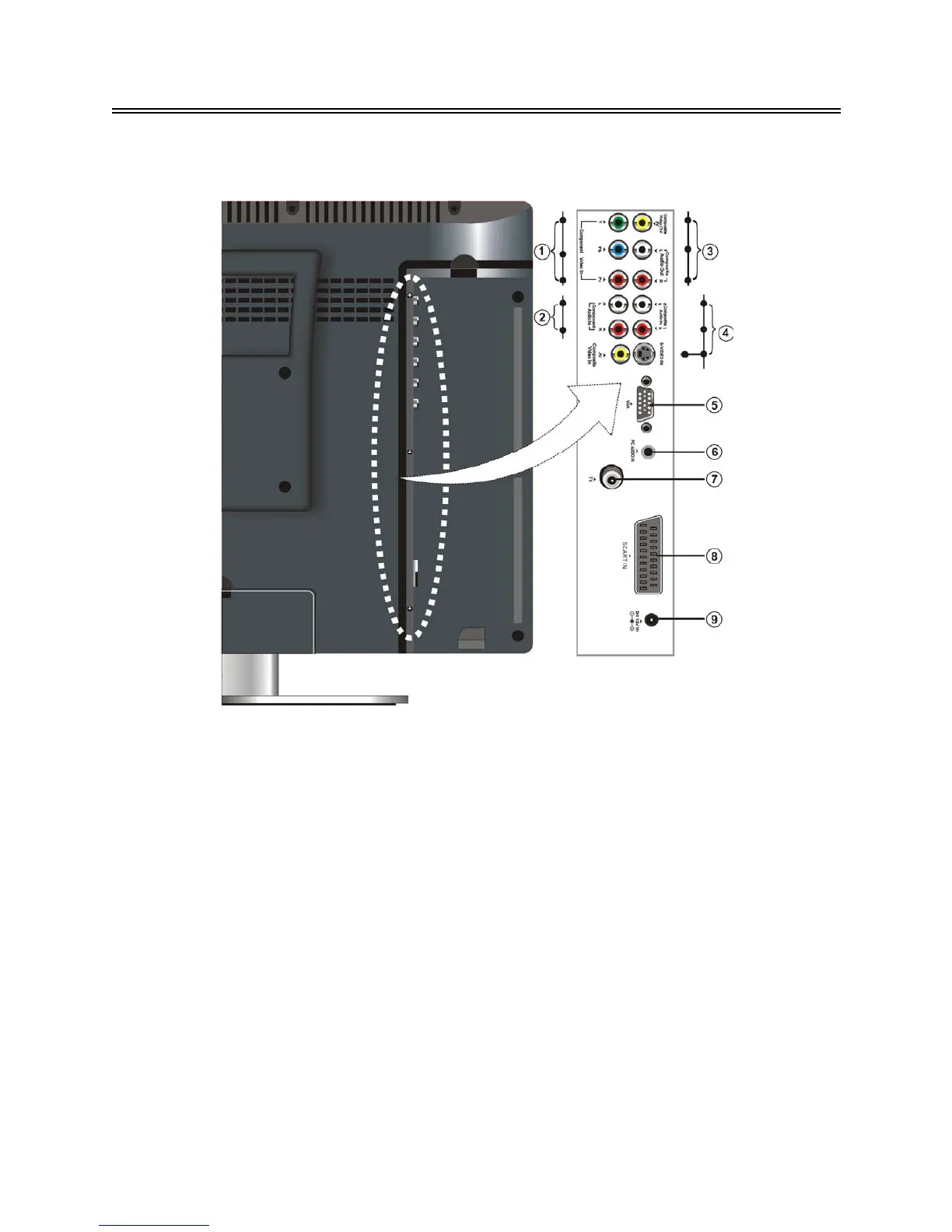

Rear Panel
Open the back cover on the right side of the unit’s rear panel and you will see all jacks, as
shown below:
1. Y/Pb/Pr Input Jacks
Connect the Y/Pb/Pr input in Component
mode.
2. Y/Pb/Pr L/R Audio Input Jacks
Connect the L/R audio input in Component
mode.
3. Composite A/V Output Jacks
Connect to output the Audio/Video signals
in Composite mode.
4. S-VIDEO and Composite A/V Input
Jacks
Connect to the S-VIDEO input in S-VIDEO
mode or composite input in Composite
mode. The L/R audio input jacks can be
used in both S-VIDEO and Composite
modes.
5. VGA Input Jack
Connect the VGA input in VGA mode.
6. PC AUDIO Input Jack
Connect to the PC audio output jack.
7. TV Antenna Input Jack
Connect the external TV signal input
source.
8. SCART Input Jack
Connect to the Scart input in Scart mode.
9. DC 12V Input Jack
Connect the power supply.
