Daikin 2MXM50M User Manual

ESIE16-02B | Part 5. Appendix 5.5. Component overview of unit
RA R32 Split & multi split M-Series
Page 110 4/04/17 | Version 1.1
5.5. Component overview of unit
5.5.1. Indoor unit
Not available yet.
5.5.2. Outdoor unit

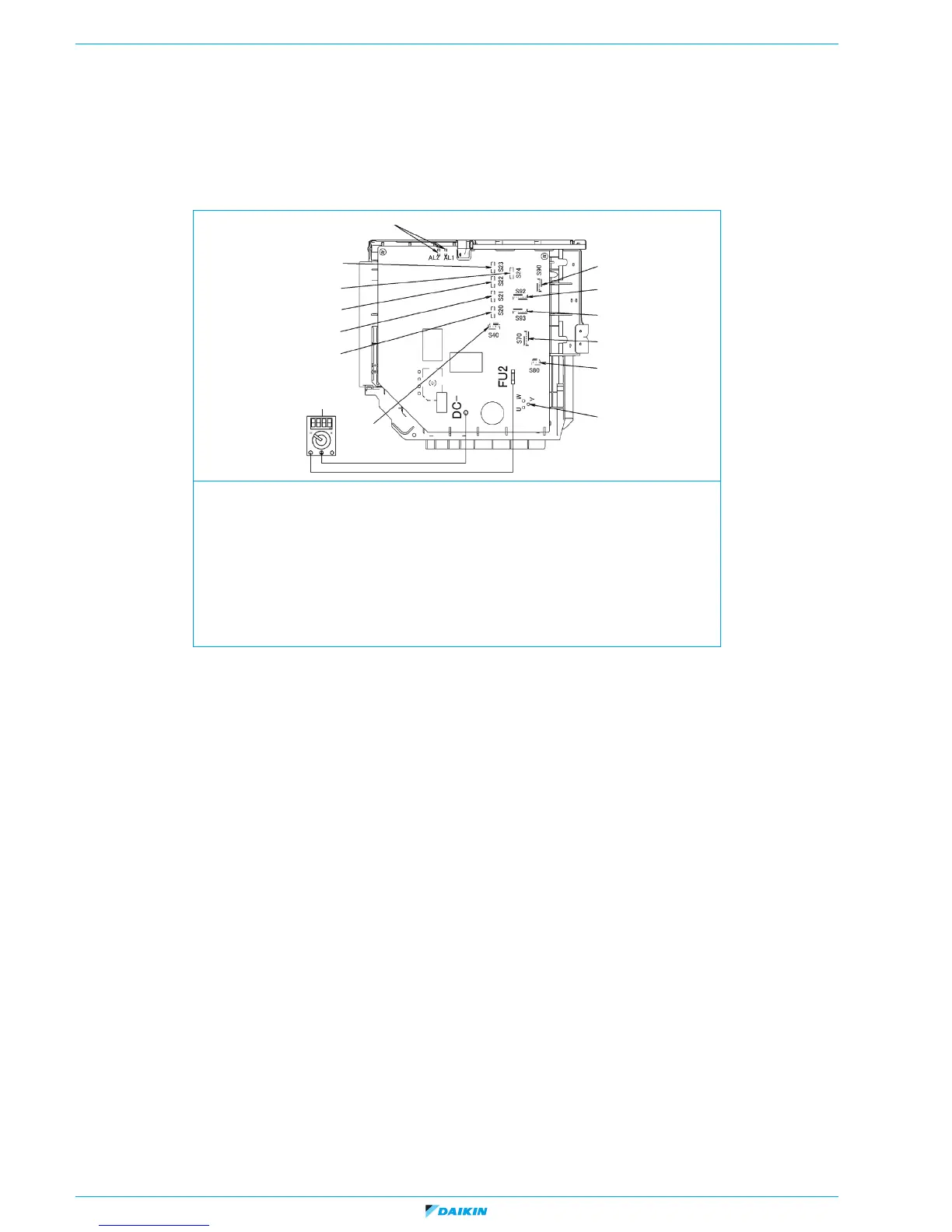

Figure 5-27: Component overview - outdoor unit
1. Thermistor lead wire connector 8. Multimeter (DC voltage range)
2. Thermistor lead wire connector (gas pipe) 9. Electronic expansion valve coil lead wire connection
(room - A)
3. Thermistor lead wire connector (liquid pipe) 10. Electronic expansion valve coil lead wire
connection (room - B)
4. Fan motor lead wire connector 11. Electronic expansion valve coil lead wire
connection (room - C)
5. Four way valve lead wire connector 12. Electronic expansion valve coil lead wire
connection (room - E) *
6. Compressor lead wire connector 13. Electronic expansion valve coil lead wire
connection (room - D) *
7. OL lead wire connector * high pressure switch 14. Solenoid valve lead wire connector *
* may not be present depending on the model
1
2
3
4
5
6
7*
8
9
10
11
12*
13*
14*

Daikin 2MXM50M Specifications

General

Type	Air conditioner outdoor unit
Multi-split	-
Product color	White
Gas hose diameter	9.5 mm
Drain hose diameter	16 mm
Liquid hose diameter	6.35 mm
Outdoor unit depth	285 mm
Outdoor unit width	765 mm
Outdoor unit height	550 mm
Outdoor unit weight	41000 g
Outdoor unit noise level	486.35 dB
Outdoor unit package depth	357 mm
Outdoor unit package width	900 mm
Outdoor unit package height	614 mm
Outdoor unit package weight	43000 g
Outdoor unit sound power level	62 dB
Current	16 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
