ESIE16-02B | Part 3. Repair 3.3. Unit specific repair procedures
4/04/17 | Version 1.1 Page 87
RA R32 Split & multi split M-Series
3.3.2.11. Replacing thermistors
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
3. Remove plate work when required, see "Basic removal" on page 68.
PROCEDURE
Removal
1. Locate thermistor that needs to be replaced, see "Component checklist" on page 121.
2. Cut the tie wraps (1) that fix the insulation (3) and the thermistor wire (2).
3. Cut the insulation (3) and remove it.
4. Pull the clip (5) that fixes the thermistor (6).
5. Remove the thermistor (6) from the thermistor holder (4).

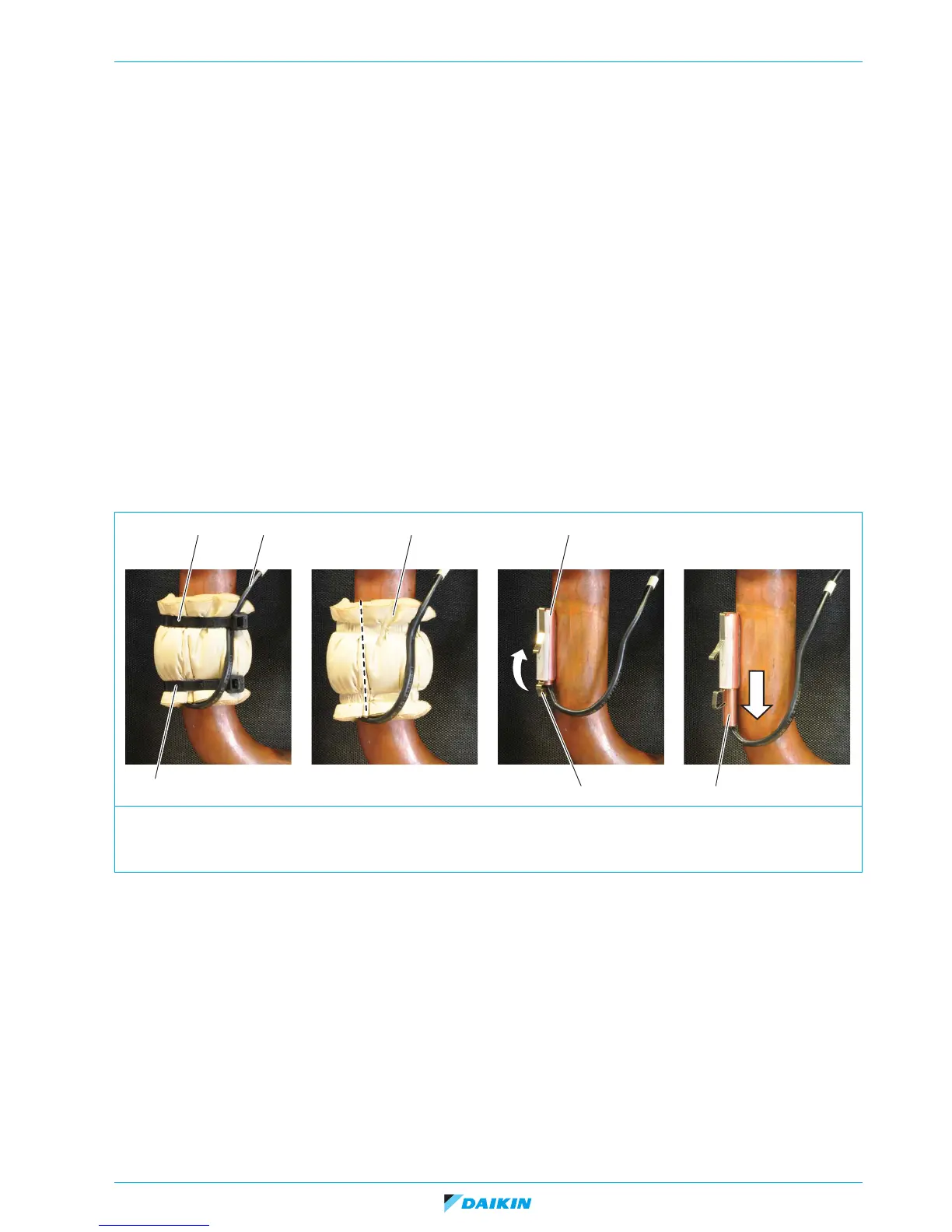

Figure 3-17: Replacing a thermistor
Installation
1. Proceed in reverse order.
1. Tie wrap 4. Thermistor holder
2. Thermistor wire 5. Clip
3. Insulation 6. Thermistor
2 3 41
1
5 6

Daikin 2MXM50M Specifications

General

Type	Air conditioner outdoor unit
Multi-split	-
Product color	White
Gas hose diameter	9.5 mm
Drain hose diameter	16 mm
Liquid hose diameter	6.35 mm
Outdoor unit depth	285 mm
Outdoor unit width	765 mm
Outdoor unit height	550 mm
Outdoor unit weight	41000 g
Outdoor unit noise level	486.35 dB
Outdoor unit package depth	357 mm
Outdoor unit package width	900 mm
Outdoor unit package height	614 mm
Outdoor unit package weight	43000 g
Outdoor unit sound power level	62 dB
Current	16 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
