7 | Unit installation
Installer reference guide
80
EPRA08~12EAV3+W1 + ETVH12SU18+23EA6V
Daikin Altherma 3 H MT F
4P644482-1 – 2021.03
7.4 Mounting the indoor unit
7.4.1 About mounting the indoor unit
Typical workflow
Mounting the indoor unit typically consists of the following stages:
1 Installing the indoor unit.
7.4.2 Precautions when mounting the indoor unit
INFORMATION
Also read the precautions and requirements in the following chapters:
▪ "2General safety precautions"[410]
▪ "7.1Preparing the installation site"[464]
7.4.3 To install the indoor unit

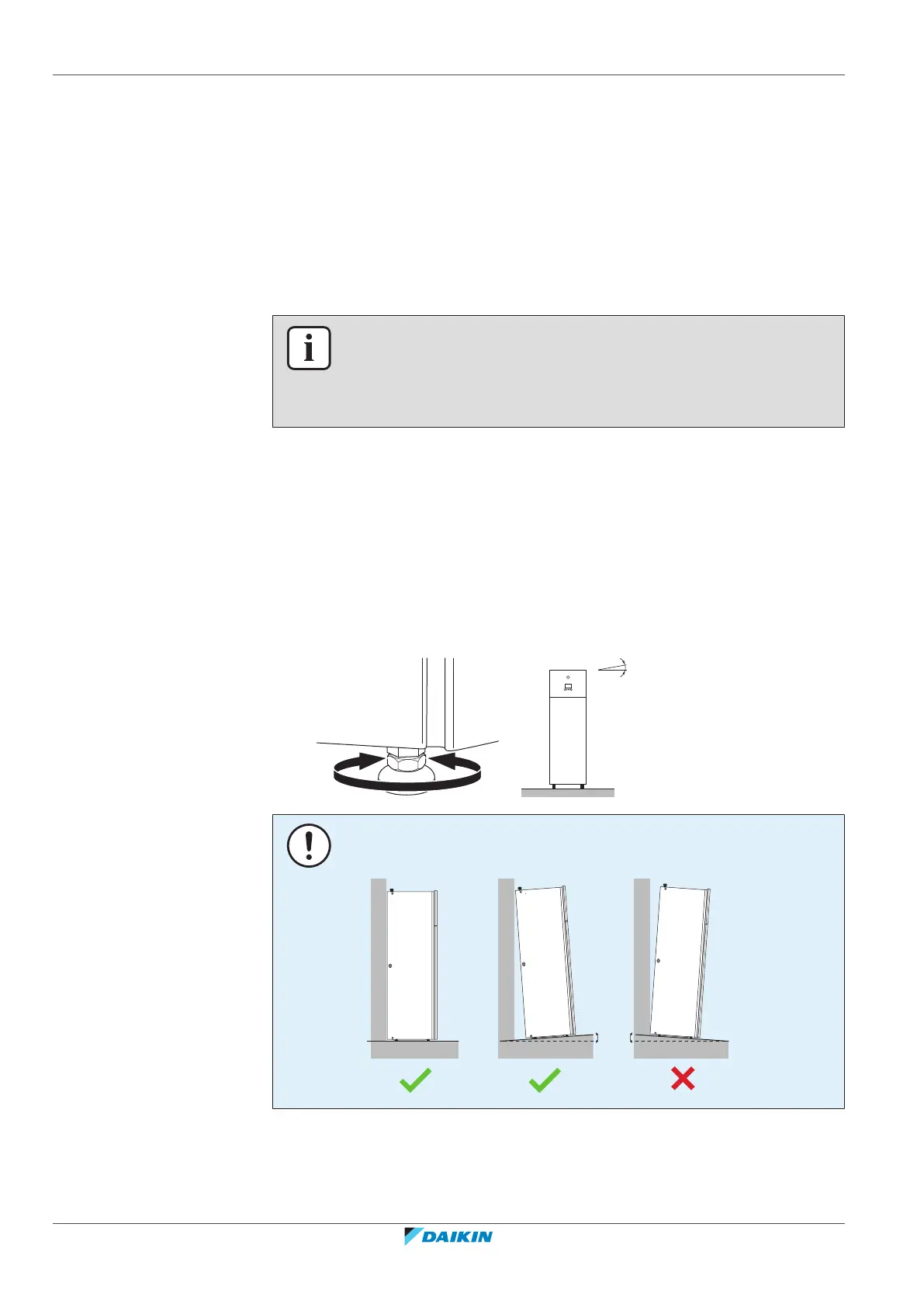

1 Lift the indoor unit from the pallet and place it on the floor. Also see "4.3.3To
handle the indoor unit"[426].
2 Connect the drain hose to the drain. See "7.4.4To connect the drain hose to
the drain"[481].
3 Slide the indoor unit into position.
4 Adjust the height of the leveling feet to compensate for floor irregularities.
The maximum allowed deviation is 1°.
≤1°
NOTICE
Do NOT tilt the unit forwards:
0°
1° 1°

Daikin Altherma 3 H MT W Specifications

General

Energy efficiency class (Heating)	A+++
Energy efficiency class (Cooling)	A++
Refrigerant	R-32
Type	Air to Water
Heating capacity	4 - 16 kW
Operating range (heating)	-25°C to 35°C
Weight (Outdoor Unit)	85 kg
