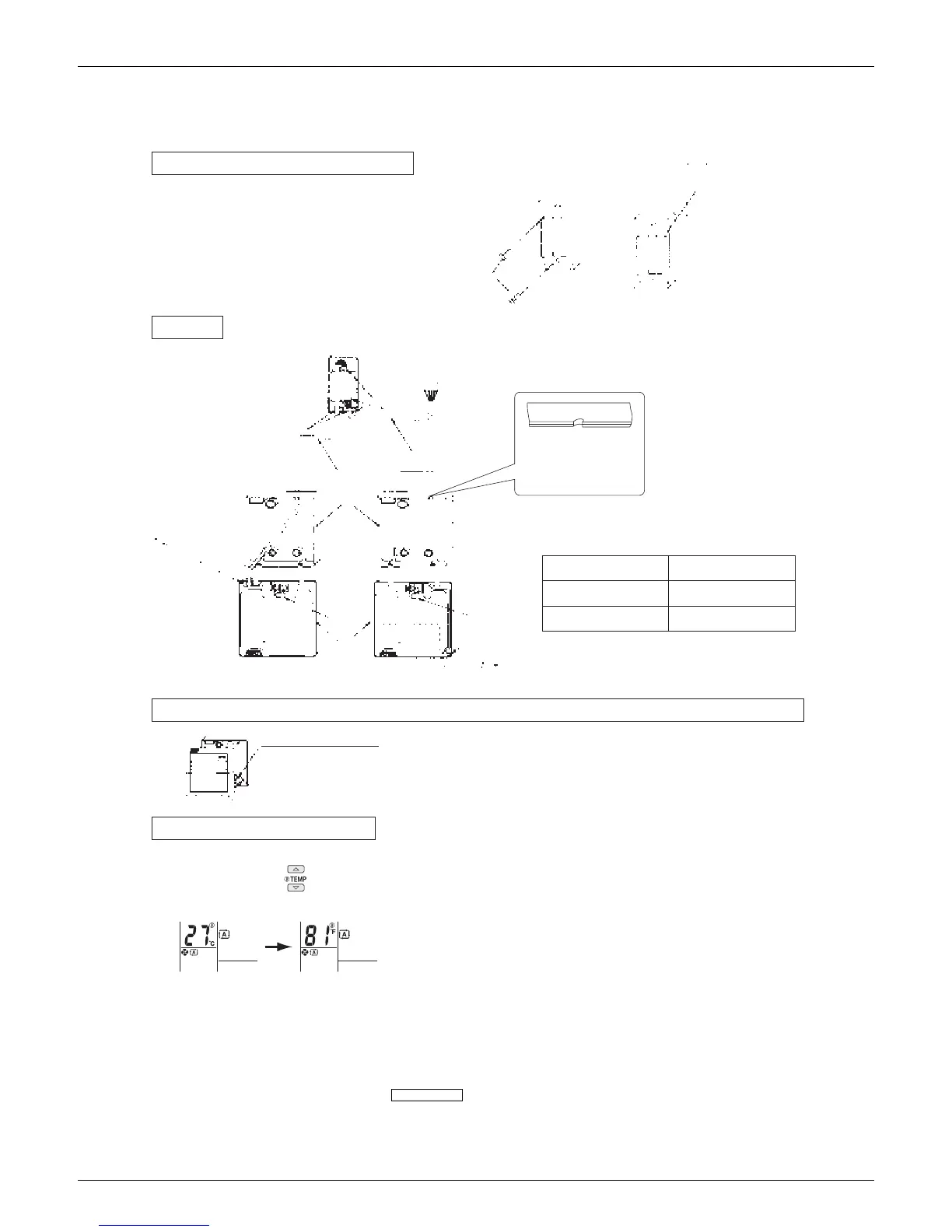

Remove the upper case of the remote control adapter
and secure the lower case assembly.
During mounting of the remote
controller cord, be careful not to pinch
or otherwise damage the wires.
(Remote controller cord 4 wire)
2. Securing the remote control adapter
3. Wiring
4.
Placing the upper case assembly of the remote controller and the upper case of the remote controller adapter back into their original positions
5. Temperature indication change
Wood screws (φ3.5mm x 16mm)
(Mounting with supplied wood screws)
Remote control adapter (attached)
(Mounting with supplied double-face adhesive tape)
Double-face
adhesive tape
Attached
five-wire cord
Remote controller cord
(Note 1)
Connector
Connector
Connector
Tie-band
(to secure the cord)
Tie-band
(to secure the cord)
Tie-band
(to secure the cord)
Upper case
assembly
Lower case
(Cord drawn out on the back)
Catch the lower hook first.
(Cord drawn out on the top)
To remote control adapter
Remote controller
board
Remote controller
board
Note 1) Ground the both ends of the shielded wire.
Using wire cutters, make
a notch for wiring and
then seal the notch to
ensure it is waterproof.
To indoor unit S21-HA connector
Remote controller cord 4 wire
Item No.
BRCW901A03
BRCW901A08
Length
Approx. 3m (10ft)
Approx. 8m (26ft)
To change from Celsius temperature indication to Fahrenheit one
Press and hold down at the
same time for 5 seconds while the
Celsius temperature is indicated.
← See Operation Manual
To Next Page
