Choosing an Installation Site
•
Before choosing the installation site, obtain user approval.
1.
Indoor unit
•
The indoor unit should be sited in a place where:
1) the restrictions on installation specified in the indoor unit installation drawings are met,
2) both air inlet and air outlet have clear paths met,
3) the unit is not in the path of direct sunlight,
4) the unit is away from the source of heat or steam,
5) there is no source of machine oil vapour (this may shorten indoor unit life),
6) cool (warm) air is circulated throughout the room,
7) the unit is away from electronic ignition type fluorescent lamps (inverter or rapid start type) as they may shorten the
remote controller range,
8)
the unit is at least 3.5 feet (1m) away from any television or radio set (unit may cause interference with the picture or sound),
9) no laundry equipment is located.
Mounting plate
1
Remote controller holder
1
Operation manual
1
Mounting plate fixing screw
3/16” × 1” (M4 × 25mm)
6
Fixing screw for remote controller
holder 1/8” × 13/16” (M3 × 20mm)
2
Installation manual
1
Titanium apatite photocatalytic
air-purifying filter
2
Dry battery AAA. LR03
(alkaline)
2
Wireless remote controller
1
Indoor unit fixing screw
3/16” × 1/2” (M4 × 12mm)
2
Indoor unit
A
K
A
E
J
B
F
K
C
G
D
H
2.
Wireless remote controller
1) Turn on all the fluorescent lamps in the room, if any, and find the site where remote control signals are properly received
by the indoor unit (within 23 feet (7m)).

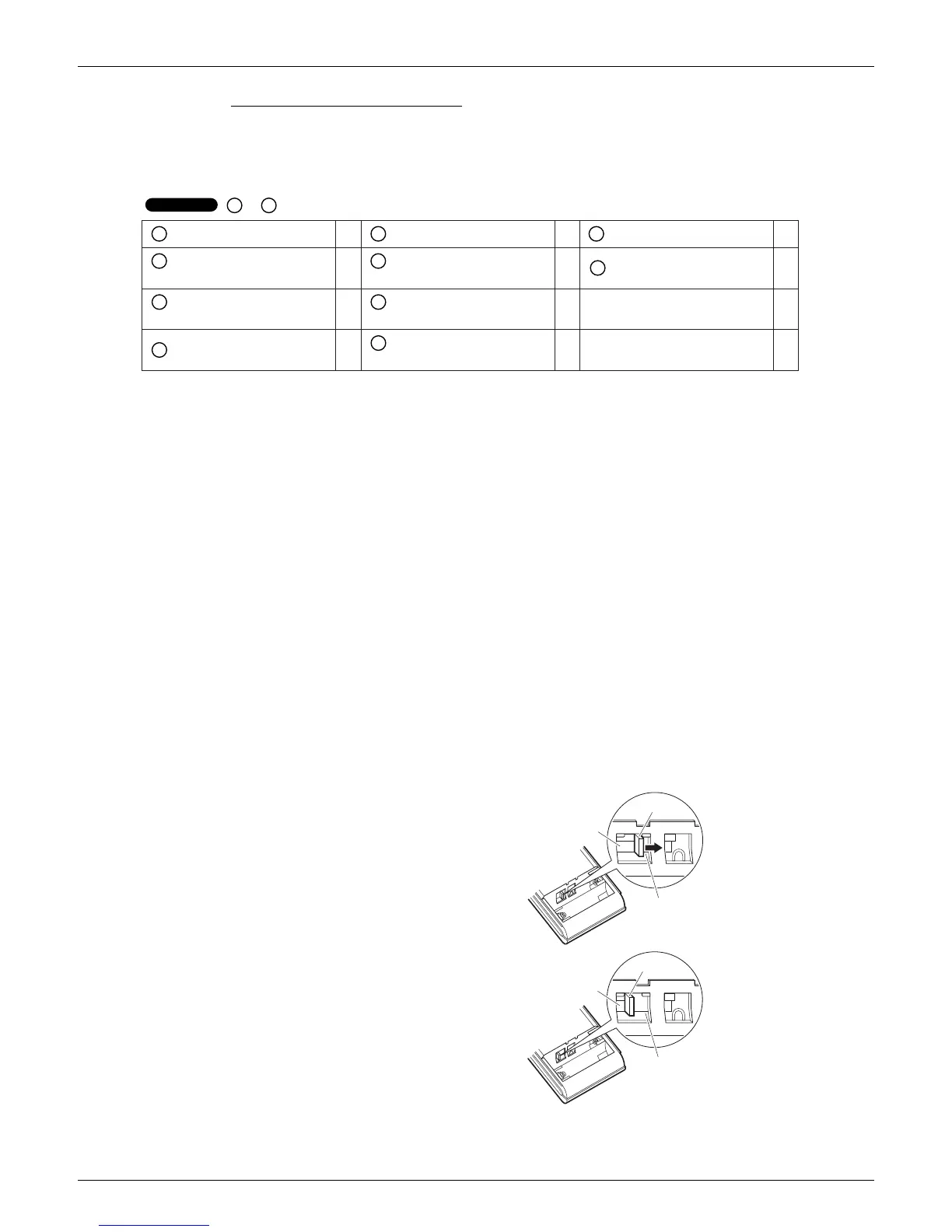

2) Make the DIP switch settings. Set according to the type of unit purchased by the customer. The default settings are on
the heat pump side.
• For cooling only (Outdoor unit model: RKN)
Set the DIP switch on the cooling only side.
• For heat pump (Outdoor unit model: RXN)
Check that the DIP switch is on the heat pump side.
If they are set on the cooling only side, move them to the heat pump side.
DIP switch
Heat pump
Cooling only
DIP switch
Heat pump
Cooling only
