Daikin FTXN15KVJU User Manual

Optional Accessories EDUS041111_a
164 Room Air Conditioners K-Series

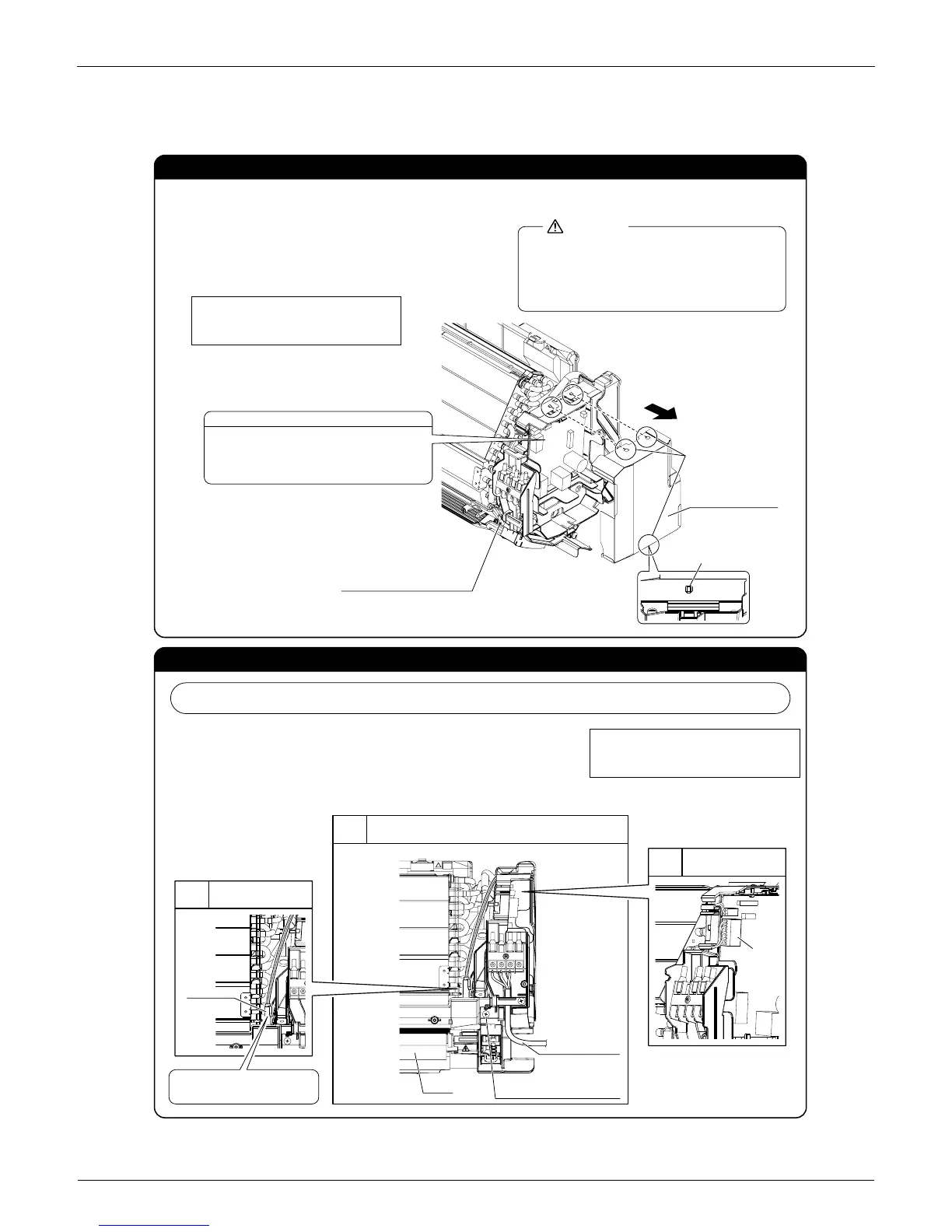

Positions of communication wiring and mounting
screw of electrical component box
Fig. 1
Position of thermistor Fig. 3
Position of each
connector
Fig. 2
Electrical component box
Removing electrical component cover
Removing electrical component box
On completion of the connection of the
electrical component (this set), mount the
removed parts to the original positions.
If there is a workspace on the right-hand side of
the indoor unit, the installation work can be
conducted without removing the electrical
component box.
On completion of the connection of the
electrical component (this set), mount the
removed parts to the original positions.
* Refer to the surface page for the removal of each part in detail.
*1 Remove the front panel.
*2 Remove the front grille.
*3 Remove the service lid of the indoor unit.
4 Remove the cover of the electrical component cover.
1. Remove the flap (in control of wind directions upward and downward).
2. Disconnect the communication wiring (see Fig. 1).
3. Disconnect the S200 connector (see Fig. 2).
4. Disconnect the heat changer from the thermistor (see Fig. 3).
5. Remove the mounting screw of the electrical component box, and remove the electrical component box (see Fig. 1).
If there is a workspace on the right-hand side of the indoor unit, the installation work can be conducted without removing
the electrical component box.
WARNING
• Be sure to turn OFF the power at the time of
installation work.
Do not touch any electric parts with the power
turned ON. Otherwise, an electric shock may be
received.front panel.
Mounting screw of electrical
component box.
Remove the tabs.
Electric component
cover
Tab
Mounting screw of electrical
component box
Flap
Communication
wiring
Thermistor
Make sure that the mounting bracket
of the thermistor will not fall off.
S200
