Daikin R32 Series User Manual

6 | Installation
Installer reference guide
31
3(A)MXM+3(A)MXF+4MXM+5MXM
R32 Split series
4P600463-1B – 2020.05

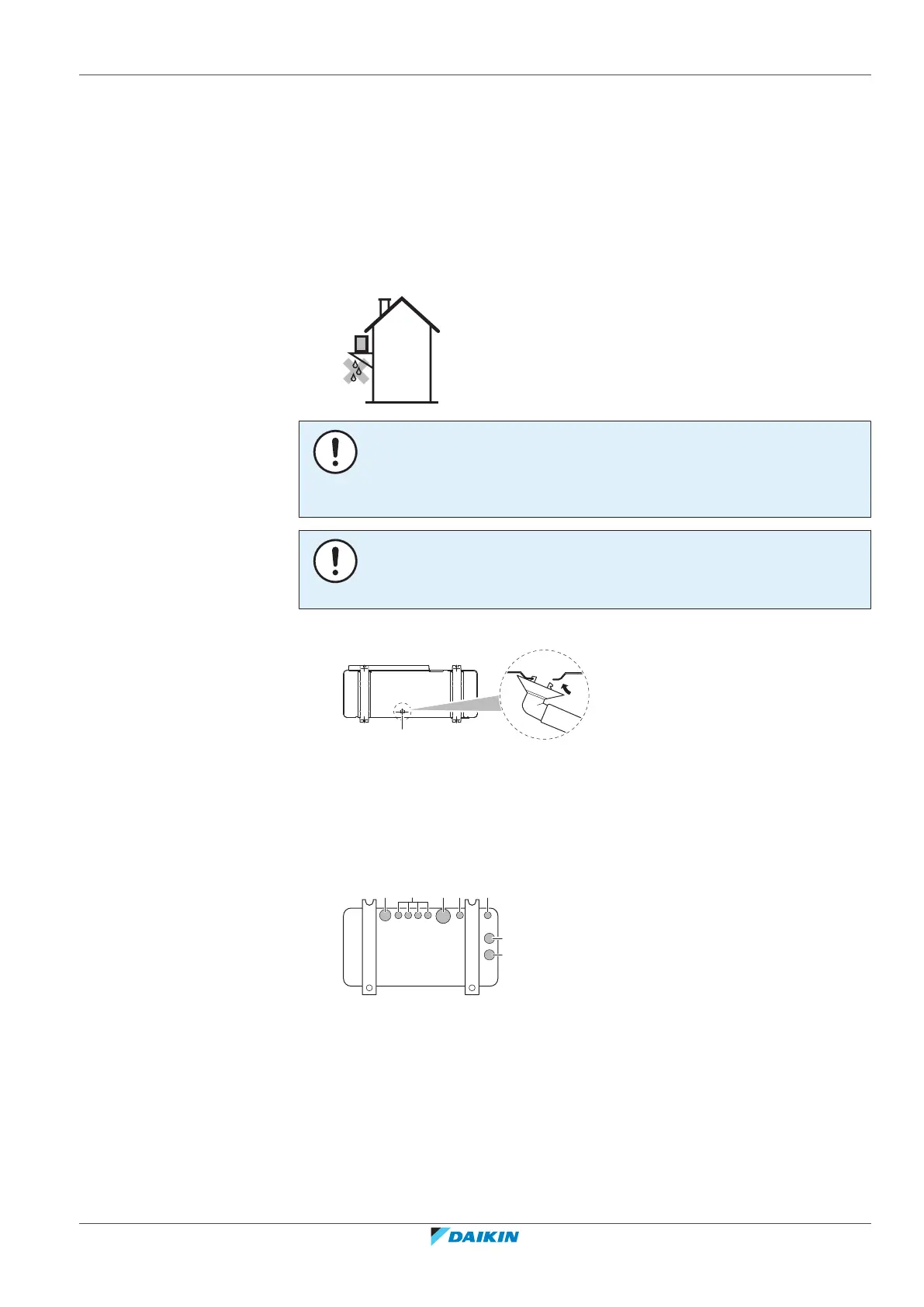

▪ Install the unit on a base to make sure that there is proper drainage in order to
avoid ice accumulation.
▪ Prepare a water drainage channel around the foundation to drain waste water
away from the unit.
▪ Avoid drain water flowing over the footpath, so that it does NOT become slippery
in case of ambient freezing temperatures.
▪ If you install the unit on a frame, install a waterproof plate within 150mm of the
bottom side of the unit in order to prevent water from getting into the unit and
to avoid drain water dripping (see the following figure).
NOTICE
In cold areas, do NOT use a drain socket, hose and caps (large, small) with the
outdoor unit. Take adequate measures so that the evacuated condensate CANNOT
freeze.
NOTICE
If the drain holes of the outdoor unit are blocked up by a mounting base or floor
surface, place additional foot bases ≤30mm under the outdoor unit's feet.
▪ Use a drain socket for drainage if necessary.
a
a Drain hole
To close the drain holes and attach the drain socket
1 Install drain caps (accessory f) and (accessory g). Make sure the edges of the
drain caps close off the holes completely.
2 Install the drain socket.
a cb b b
a
a
a Drain hole. Install a drain cap (large).
b Drain hole. Install a drain cap (small).
c Drain hole for drain socket
6.3.6 To prevent the outdoor unit from falling over
In case the unit is installed in places where strong wind can tilt the unit, take
following measure:
1 Prepare 2 cables as indicated in the following illustration (field supply).
2 Place the 2 cables over the outdoor unit.

Daikin R32 Series Specifications

General

Refrigerant	R32
Airflow Direction Control	Yes
Type	Split System
Cooling Capacity	Varies by model
Heating Capacity	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Noise Level (Indoor Unit)	Varies by model
Noise Level (Outdoor Unit)	Varies by model
Power Supply	Varies by model
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
