6 | Installation
Installer reference guide
48
3(A)MXM+3(A)MXF+4MXM+5MXM
R32 Split series
4P600463-1B – 2020.05

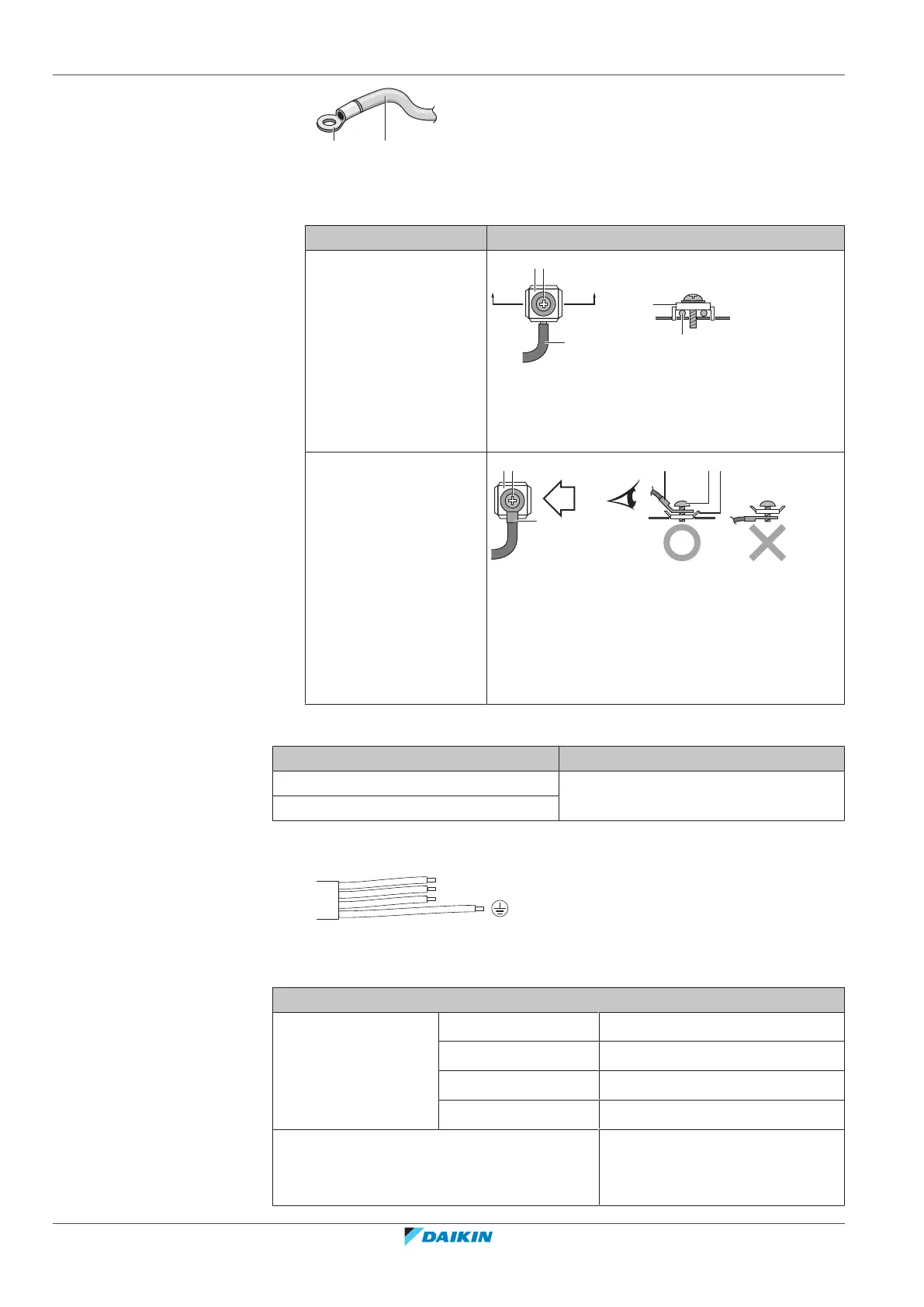

b a
a Stranded conductor wire
b Round crimp-style terminal
▪ Use the following methods for installing wires:
Wire type Installation method
Single-core wire
c b
c
aa
A
AA´
A´
a Curled single-core wire
b Screw
c Flat washer
Stranded conductor wire
with round crimp-style
terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
O Allowed
X NOT allowed
Tightening torques
Item Tightening torque (N•m)
M4 (X1M) 1.2
M4 (earth)
▪ The earth wire between the wire retainer and the terminal must be longer than
the other wires.
1-3
6.7.4 Specifications of standard wiring components
Component
Power supply cable Voltage 220~240V
Phase 1~
Frequency 50Hz
Wire type A
Interconnection cable (indoor↔outdoor) 4-core cable 1.5mm
2
or 2.5mm
2
and applicable for 220~240V
H05RN-F (60245 IEC 57)

Daikin R32 Series Specifications

General

Refrigerant	R32
Airflow Direction Control	Yes
Type	Split System
Cooling Capacity	Varies by model
Heating Capacity	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Noise Level (Indoor Unit)	Varies by model
Noise Level (Outdoor Unit)	Varies by model
Power Supply	Varies by model
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
