Daikin R32 Series User Manual

6 | Installation
Installer reference guide
50
3(A)MXM+3(A)MXF+4MXM+5MXM
R32 Split series
4P600463-1B – 2020.05
e-B
e-E
e-C
e-D
a-A
e-A
a-C a-D
a-E
a-B
b c
d

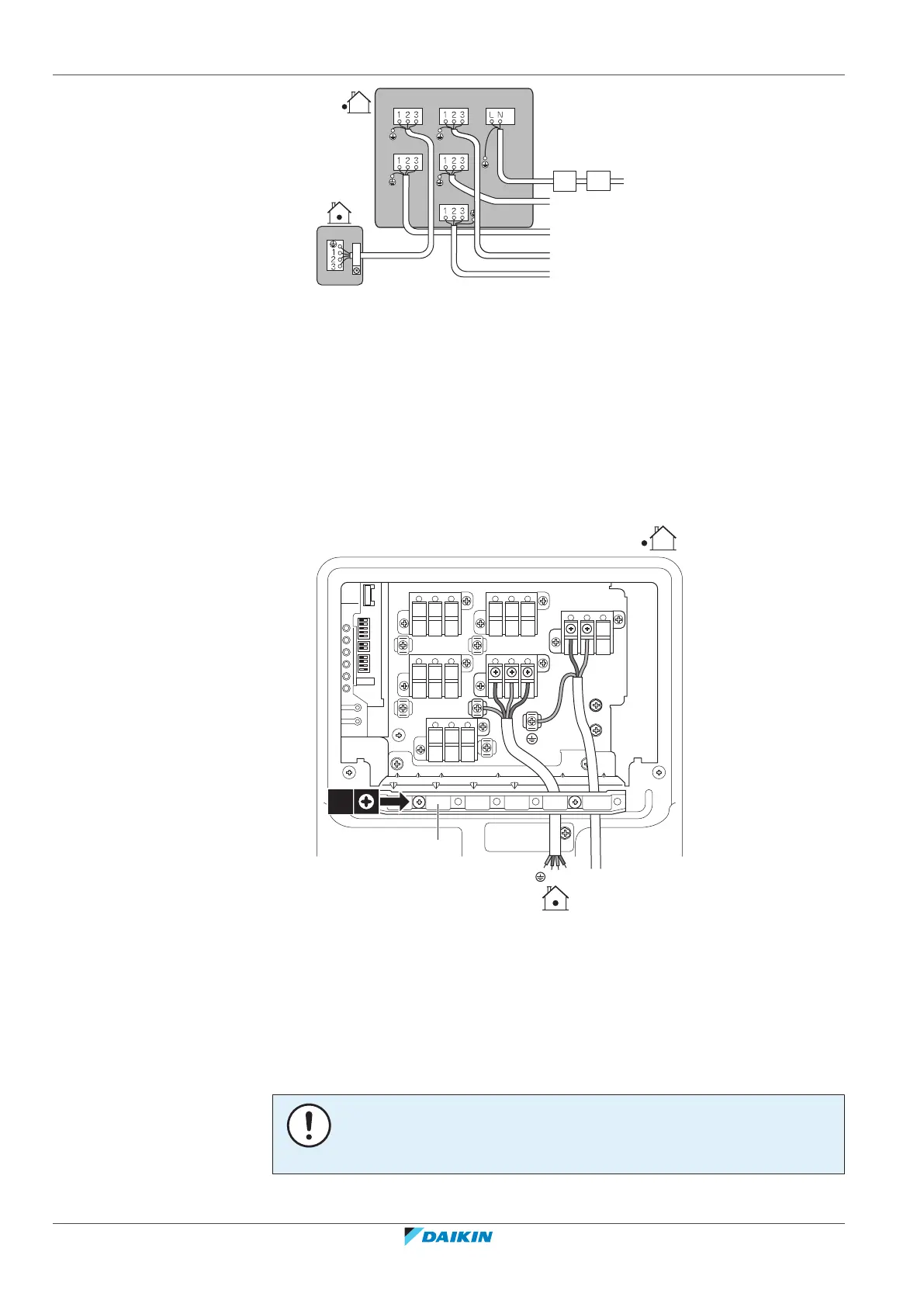

a Terminal for room (A, B, C, D, E)*
b Circuit breaker
c Earth leakage circuit breaker
d Power supply wire
e Interconnection wire for room (A, B, C, D, E)*
*May differ depending on the model.
5 Tighten the terminal screws securely using a Philips screwdriver.
6 Check that the wires do not disconnect by pulling them lightly.
7 Firmly secure the wire retainer to avoid external stress on wire terminations.
8 Pass the wiring through the cutout on the bottom of the protection plate.
9 Make sure the electrical wiring does not contact with the gas piping.
L N
1 2 3
1 2 3
2×
a
a Wire retainer
10 Reattach the switch box cover and the service cover.
6.8 Finishing the outdoor unit installation
6.8.1 To finish the outdoor unit installation
NOTICE
It is recommended that the refrigerant piping between indoor and outdoor unit is
installed in a ducting or the refrigerant piping is wrapped with finishing tape.
1 Insulate and fix the refrigerant piping and cables as follows:
