Si001406EB PCBs
Removal Procedure 11

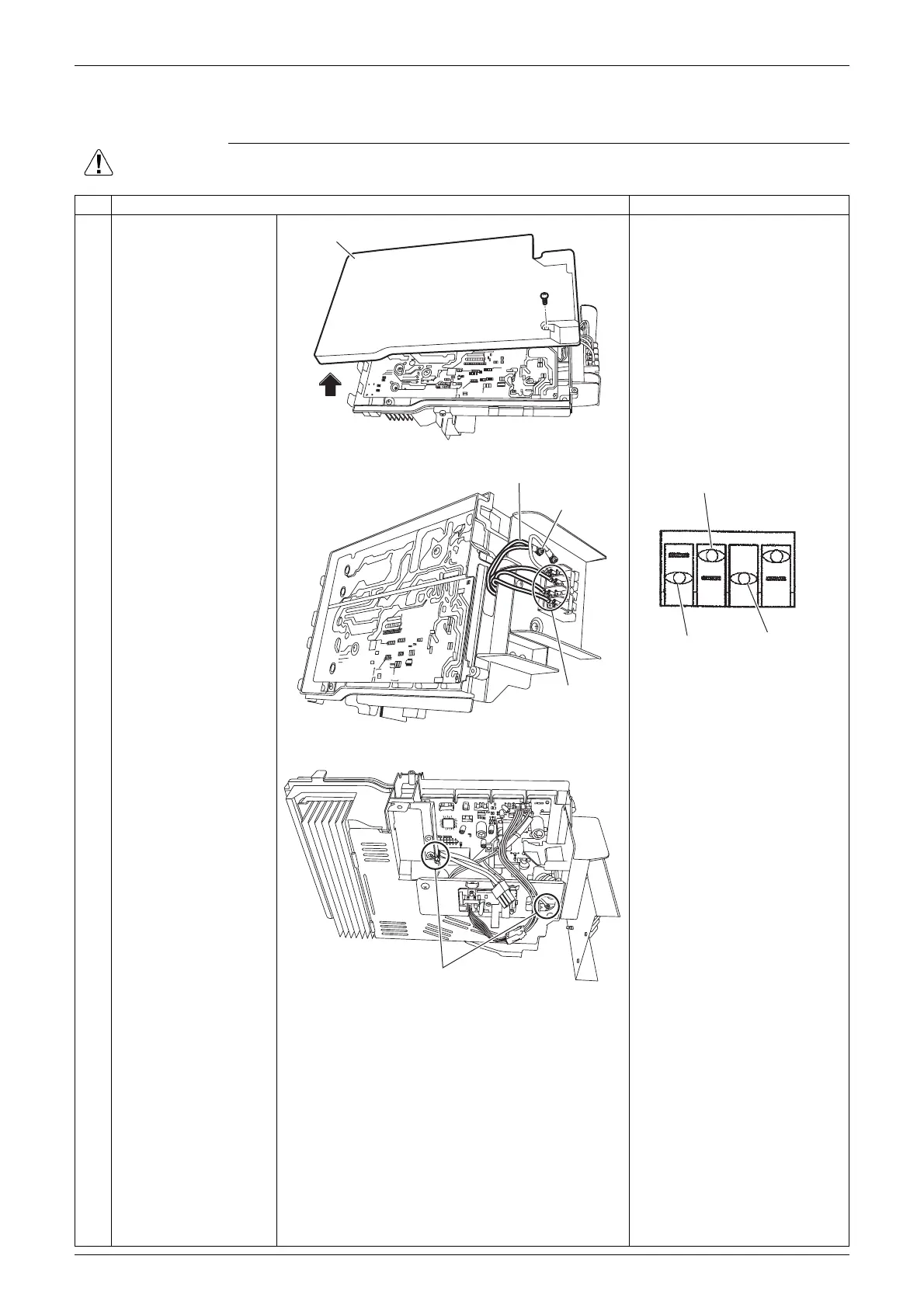

4. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the screw and
remove the electrical
box cover.
2
3
Disconnect the 3
connectors from the
terminal board.
Remove the screw and
release the earth/
ground wire (upper).
4 Cut the 2 clamps.
Electrical box cover
(R20658)
Connector
(R20660)
Earth/ground wire (upper)
Screw
(R20659)
HN1 (white)
HL1 (black)
S (red)
Clamp
(R20238)
