Si001406EB Outdoor Fan / Fan Motor
Removal Procedure 5
2. Outdoor Fan / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

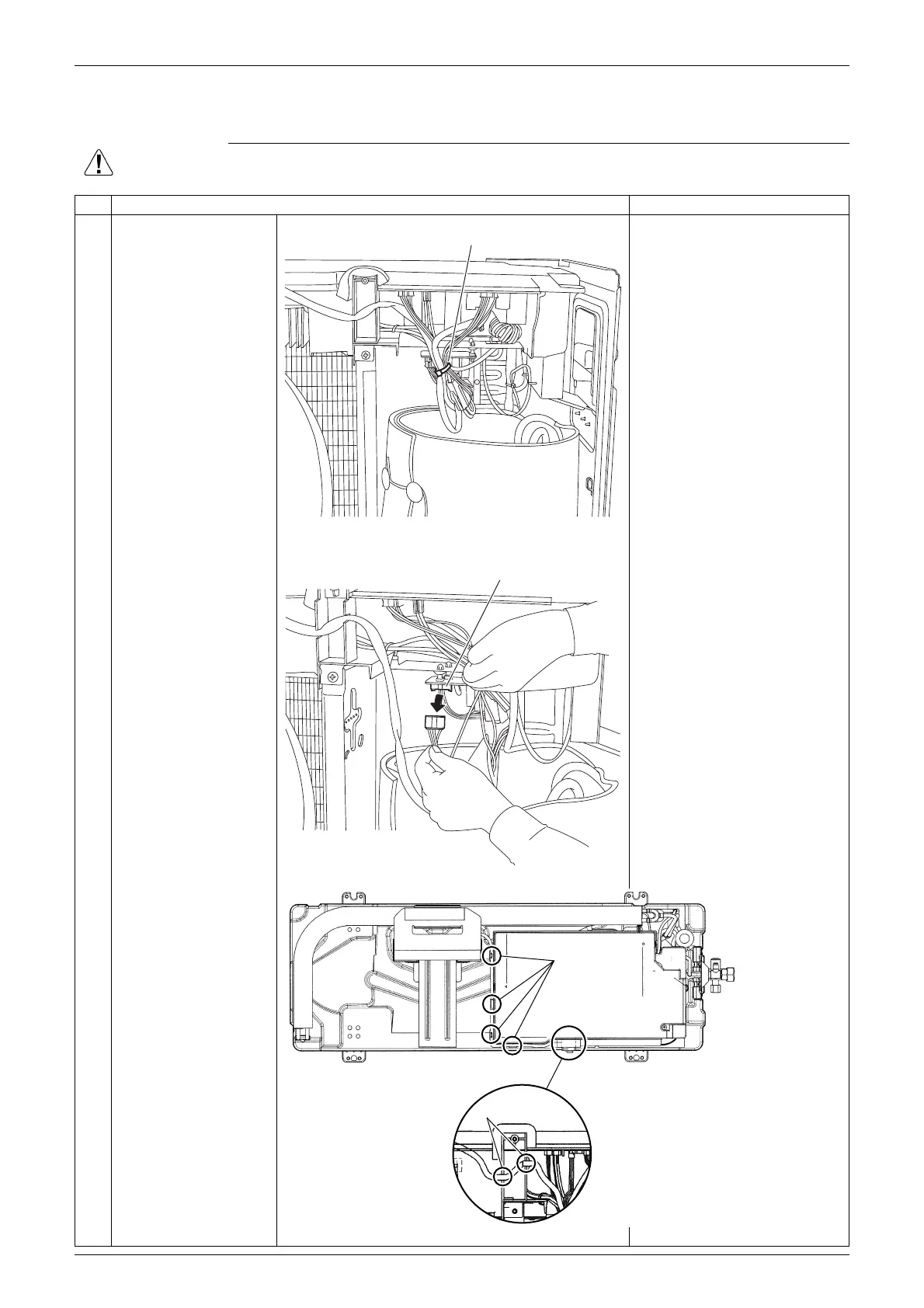

Step Procedure Points
1 Cut the clamp.
2 Disconnect the
connector [S79].
[S79]: fan motor
3 Release the fan motor
lead wire from the 2
slits and the 4 hooks on
the electrical box.
Clamp
(R20655)
[S79]
(R20656)
(R20429)
Hook
Slit
