Si001406EB Partition Plate / Sound Blankets
Removal Procedure 15
6. Partition Plate / Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 2 screws,
and then the partition
plate.

Since the piping ports are
torn easily, remove the
sound blanket carefully.
2
3
Untie the string and
open the sound blanket
(outer).
Pull out the sound
blanket (outer).

The design of the sound
blanket (outer) varies
depending on the model.
4 Remove the sound
blanket (top).

Some models do not have
the sound blanket (top).
(R20247)

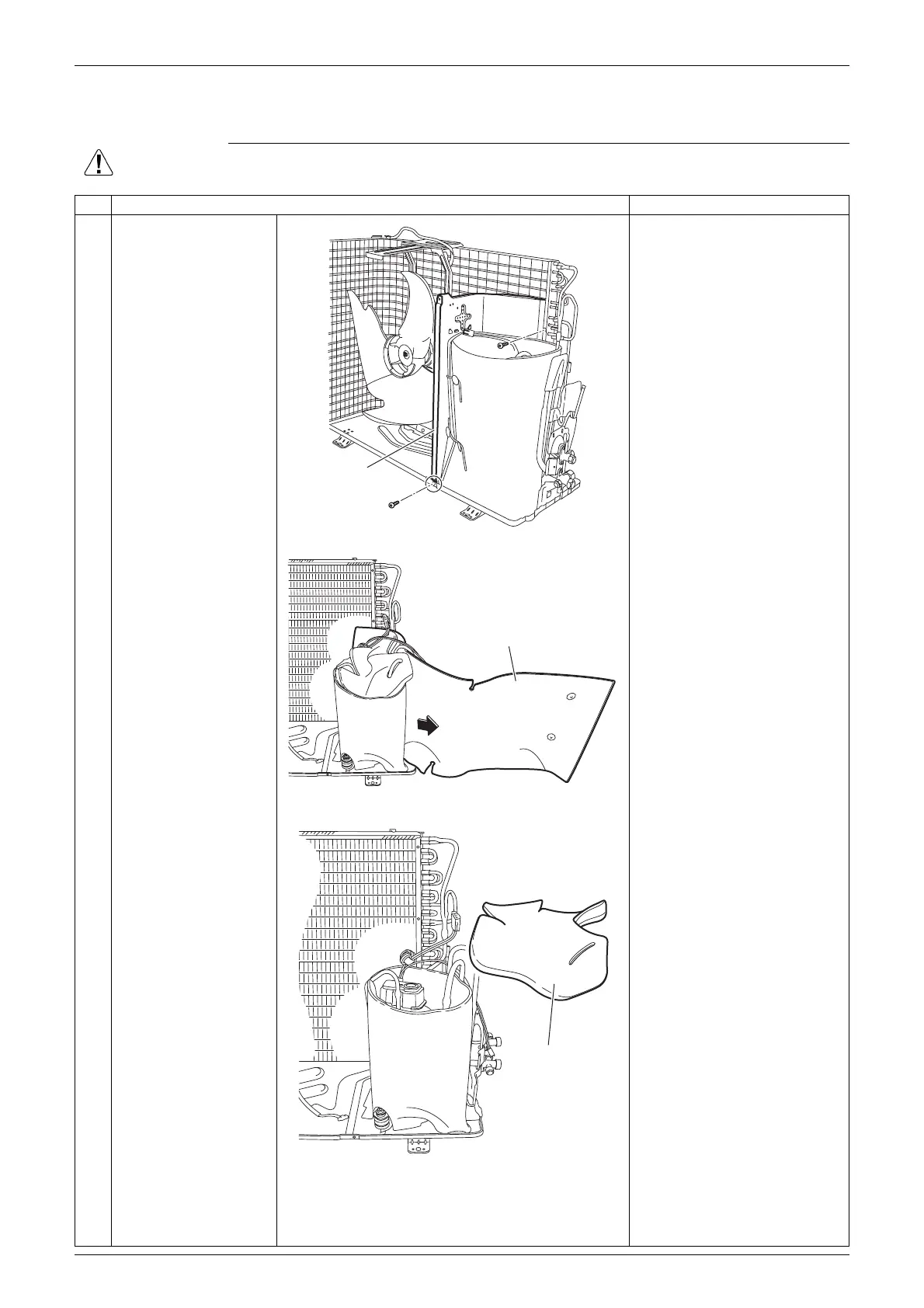

Partition plate
Sound blanket
(outer)
(R20565)
Sound blanket
(top)
(R20566)
