Si001406EB Thermistor ASSY
Removal Procedure 13
5. Thermistor ASSY
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

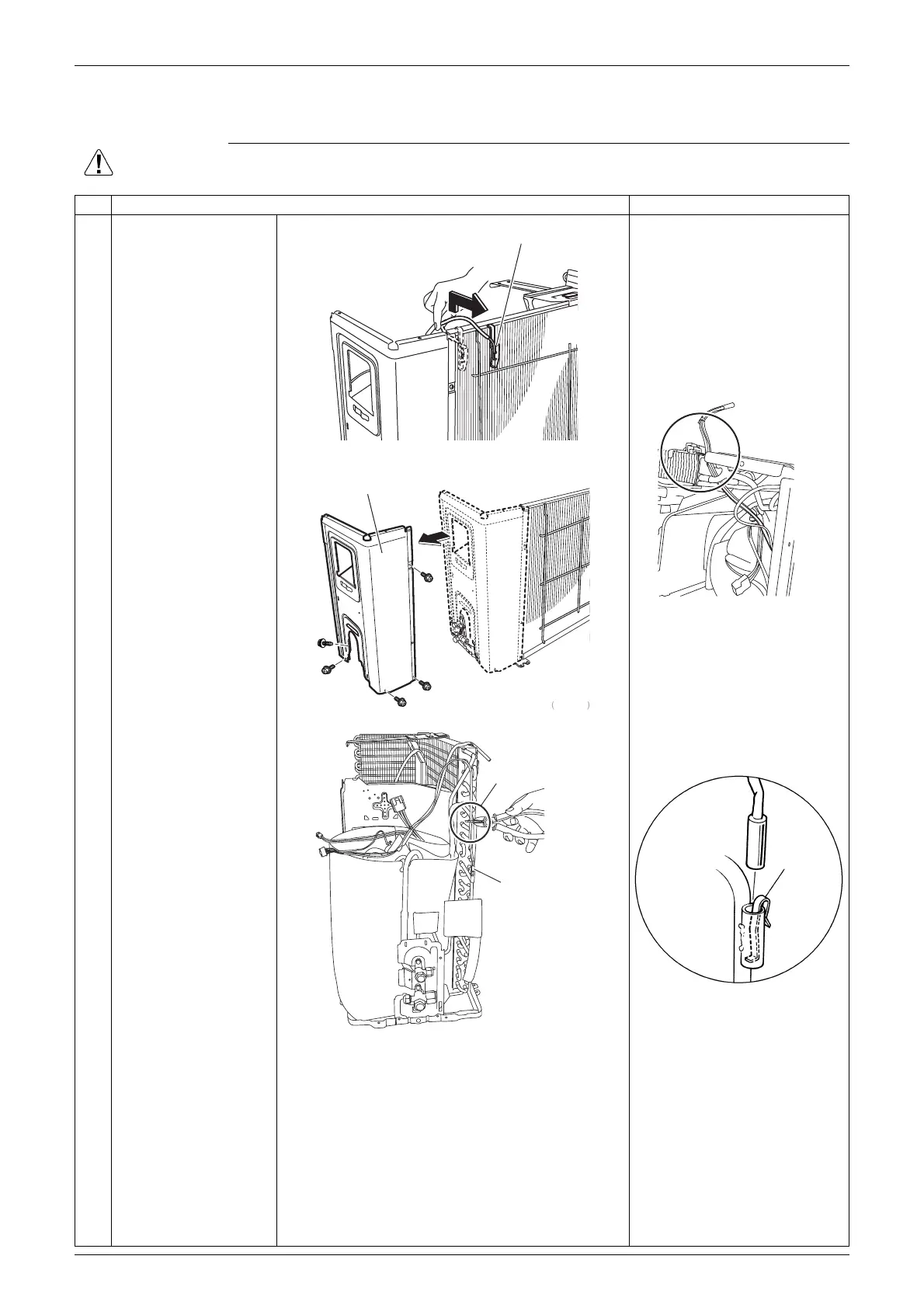

Step Procedure Points
1 Release the outdoor
temperature thermistor.
The shape of the protection
net varies depending on the
model.
When reassembling, pass
the outdoor temperature
thermistor through the top
U-bend of the outdoor heat
exchanger.
2
3
Remove the 5 screws
of the right side panel.
Remove the right side
panel.
4
5
Cut the clamp.
Pull out the outdoor
heat exchanger
thermistor.
Be careful not to lose the clip
for the thermistor.
(R19516)
Outdoor temperature thermistor
(R20243)
(R19517)
Right side panel
Clamp
(R20244)
Outdoor heat
exchanger
thermistor
(R3264)
Clip
