SiUS071735EB Troubleshooting
Service Diagnosis 102

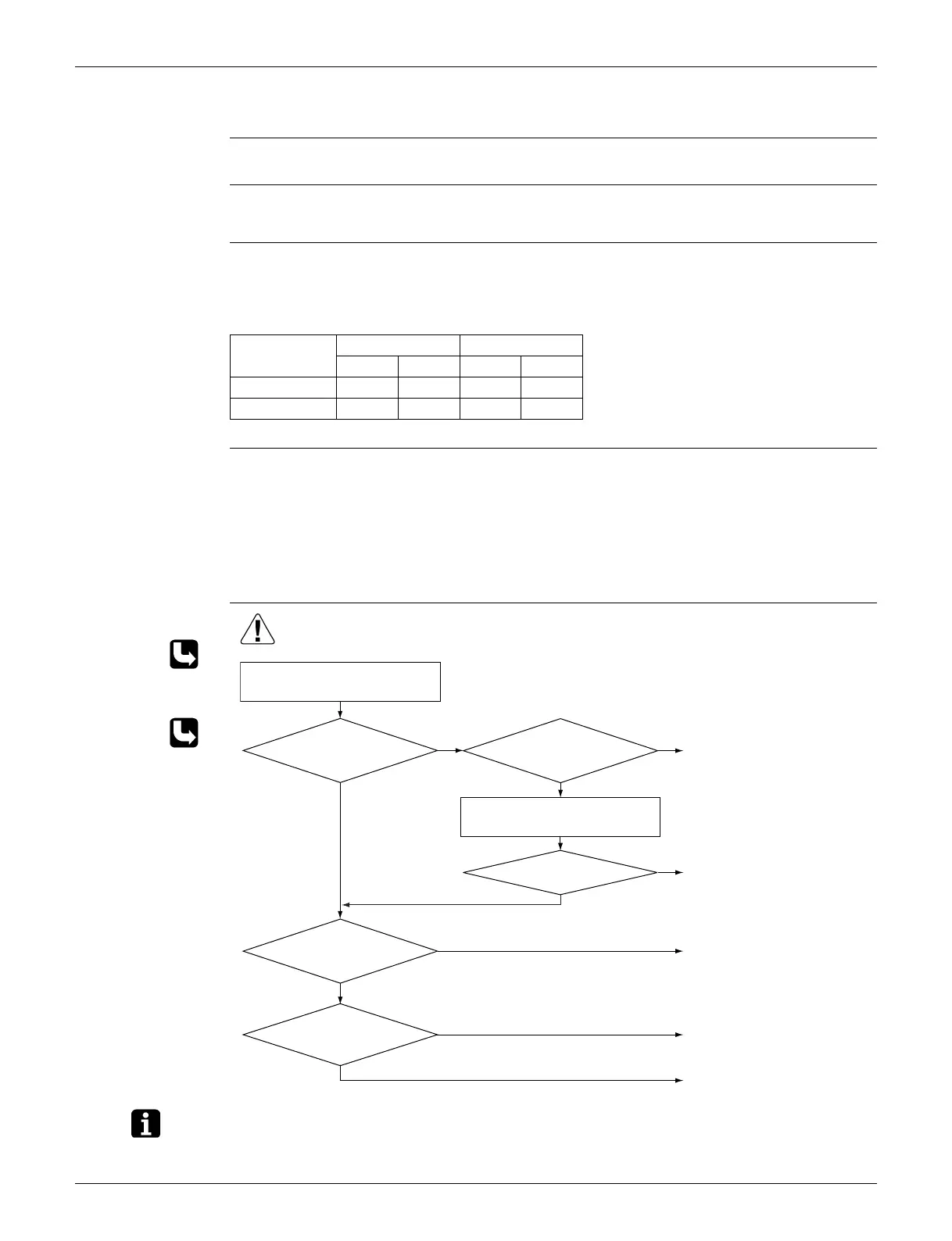

4.29 Radiation Fin Temperature Rise
Error Code L4
Method of Error
Detection
A radiation fin temperature rise is detected by checking the radiation fin thermistor with the compressor on.
Error Decision
Conditions
 If the radiation fin temperature with the compressor on is above A.
 The error is cleared when the radiation fin temperature drops below B.
 If the error repeats, the system is shut down.
 Reset condition: Continuous run for about 60 minutes without any other error
Supposed
Causes
 Defective outdoor fan motor
 Short circuit
 Defective radiation fin thermistor
 Disconnection of connector
 Defective outdoor unit PCB
 Silicone grease not applied properly on the radiation fin after replacing the outdoor unit PCB
Troubleshooting
Check No.17
Refer to P.112
Check No.19
Refer to P.113
Note: Refer to Silicone Grease on Power Transistor/Diode Bridge on page 130 for details.
AB
°C °F °C °F
09/12 class 99 210.2 70 158
15/18/24 class 100 212 57 134.6
Caution
Turn off the power. Then, turn on
the power to restart the system.
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
(R23953)
NO
NG
OK
NO
YES
Check the radiation fin
temperature.
NO
YES
YES
Above A?
Check No. 19
Check the outdoor fan.
Error displayed again?
Has the PCB been
replaced?
Check if silicone grease is
applied properly on the
radiation fin. If not, apply
the silicone grease.
Replace the outdoor unit
PCB (main PCB).
Replace the outdoor fan
motor.
Correct the connectors and
fan motor leads.
Replace the outdoor unit
PCB (main PCB).
YES
NO
Radiation fin dirty?
Clean up the radiation fin.
Check the installation
condition.
Go to Check No. 17.
