13 Printed Circuit Board Connector Wiring Diagram
3. Wireless Remote Controller Receiver

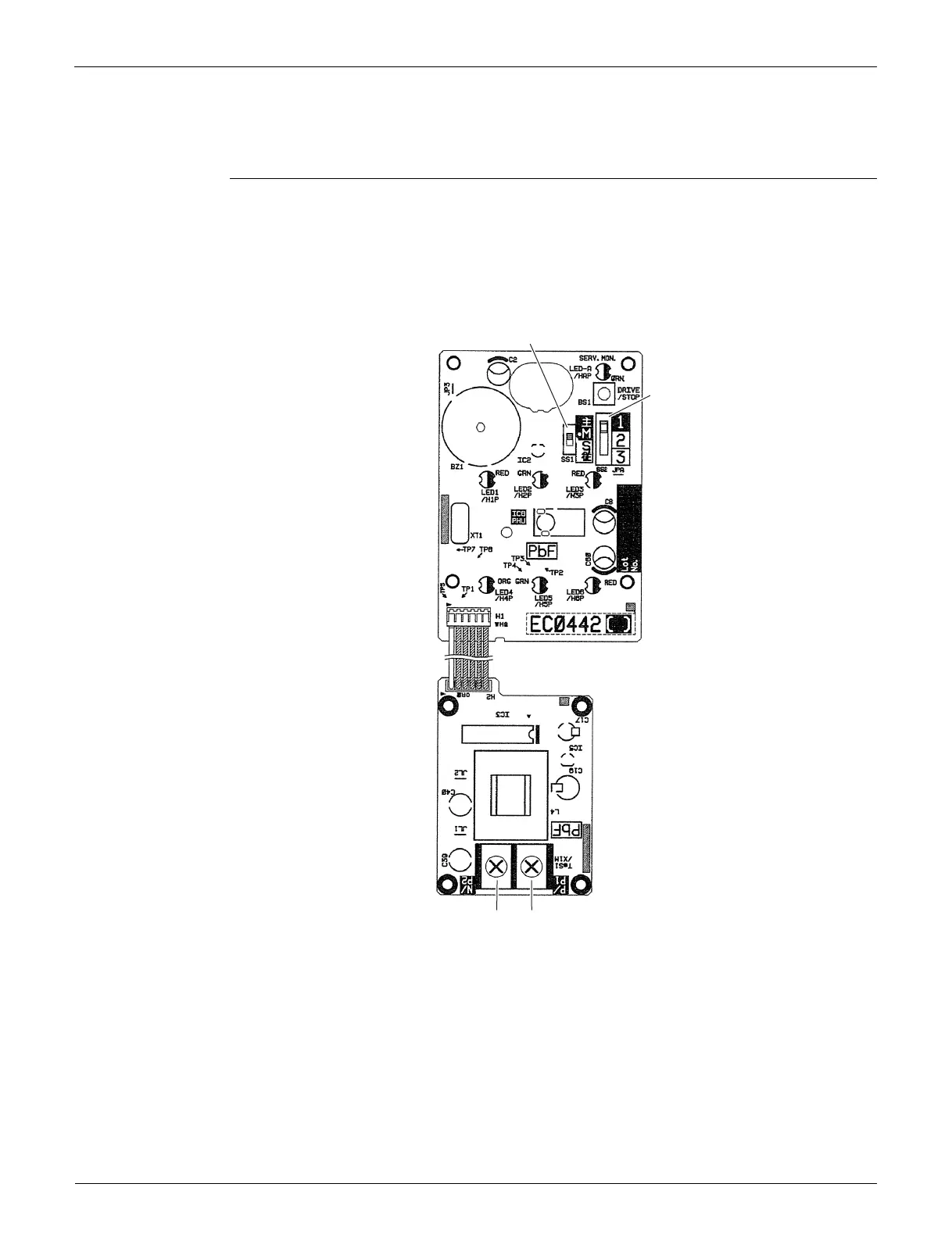

3.1 BRC082A43
Wireless Remote
Controller PCB
1) SS1 MAIN/SUB setting switch
 Refer to page 127 for details.
2) SS2 Address setting switch
 Refer to page 127 for details.
3) P1, P2 Terminal for indoor unit control PCB (A1P)
SS1
P2 P1
3P156152-1
SS2
