13.1 Single Split Duct-Free System

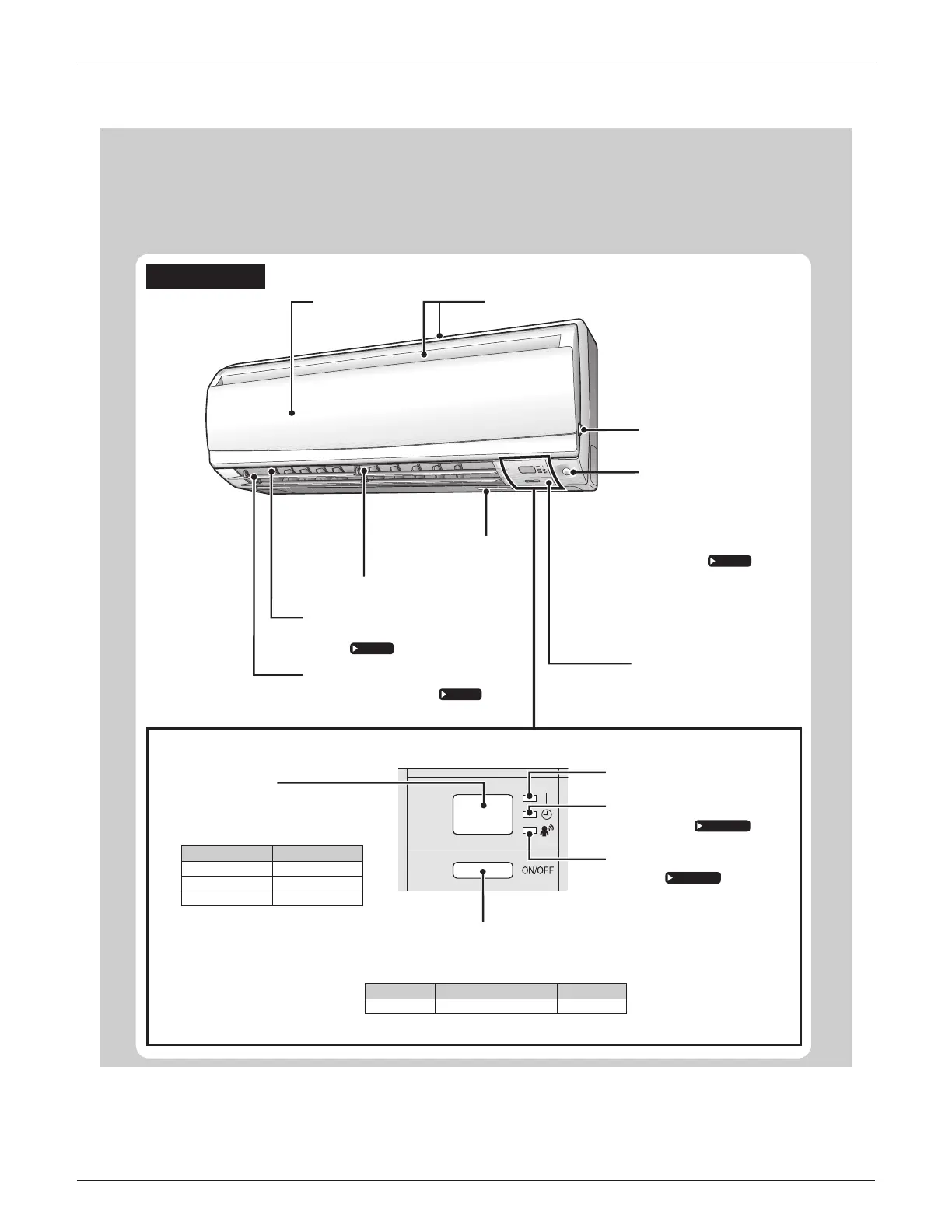

Names of Parts
Indoor Unit
Air inletFront panel
Air outlet
Fins (vertical blades)
The fi ns are inside of the air •
outlet.
Page 13
Louvers
(horizontal blades)
Page 13
Signal receiver
It receives signals from the remote •
controller.
When the unit receives a signal, you •
will hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Display
Indoor unit ON/OFF switch
Press this switch once to start operation.•
Press once again to stop it.
The operation mode refer to the following table.•
Mode Temperature setting Airfl ow rate
AUTO 77°F (25°C) AUTO
This switch is useful when the remote controller is missing.•
Model name
plate
Panel tab
Room temperature
sensor
It detects the air temperature •
around the unit.
INTELLIGENT EYE
sensor
It detects the movements of •
people and automatically
switches between normal
operation and energy saving
operation.
Page 15
OPERATION lamp (green)
TIMER lamp (yellow)
Page 20,21
INTELLIGENT EYE lamp
(green)
Page 15,16
