Daikin RXS09LVJU Engineering Data

EDUS091128 Optional Accessories
Split Type Air Conditioners FTXS-L / FDXS-L Series 201
14.6 <KPW937A4> Air Direction Adjustment Grille
n Before Installation
n Installation Procedure
1. Remove 4 screws fixed to the outlet grille.
2. Screw the fixtures( )to the outlet grille and the front panel by 4 screws that have been
removed in step 1. Install them to the outdoor unit. (4 positions)
Attach fixtures( ) to the outdoor unit.
Installation of air direction adjustment grille
Fixing screw for
outlet grille
Pitch of the installation screws for the air direction adjustment grille( )is 434mm in the
vertical and horizontal directions.
Installation can be performed in 4 directions: top, bottom, left and right.
Temporarily secure the air direction adjustment grille( ) using 4 screws( ),check the
installation angle,and then tighten the screws.
5

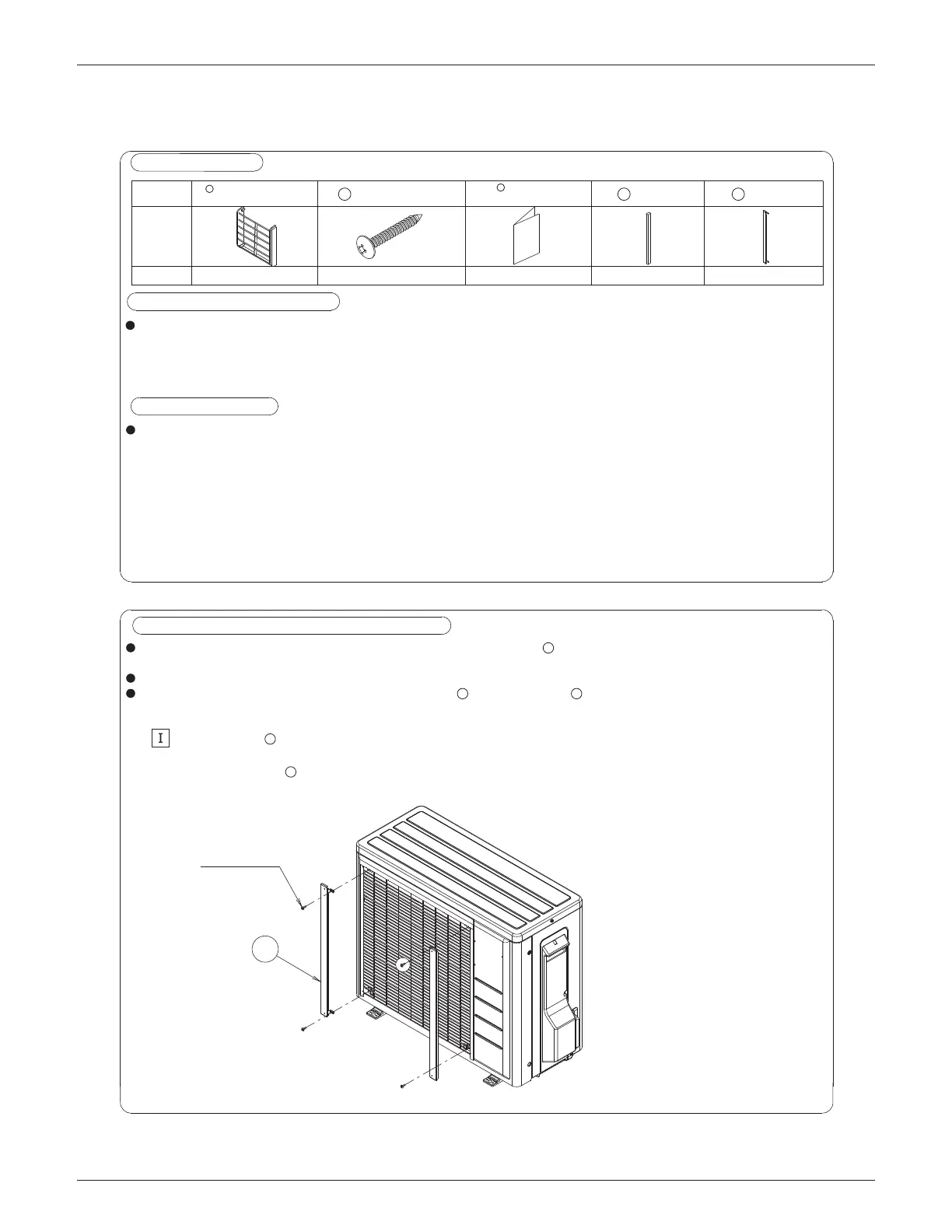

Component parts Be sure to check that the following parts are included before installation.
Air direction
adjustment grille
Name
Shape
Qty. 1 pc.
Cautions for usage
Be sure to perform the following as installation precautions to ensure correct and safe use of
the air direction adjustment grille.
1. Be sure to stop the operation before installation.
2. Avoid short-circuits during installation.
3. When using the unit in areas with snow, install the grille to create a left-right or downward airflow.
Do not install the grille to create an upward airflow to prevent snow accumulating in the air outlet
of the outdoor unit as this may damage the unit.
4. Be careful of foreign substances such as dead leaves, which may accumulate on the air outlet after
installing the grille to create an upward airflow.
5. Do not use screws other than those provided. Tighten the screws securely without any looseness.
Selection of installation site
Use the air direction adjustment grille for installation at a location that fits the
following conditions.
1. When installing the outdoor unit near the neighboring house.
2. When changing the airflow direction to prevent exhaust blowing directly onto passersby or
garden plants.
4 pcs. 2 pcs. One sheet (this sheet)
Seal
2 pcs.
Fixture
1
Installation
manual
3
M4
x
20 Screw
2 4 5
1
1
5
5
2
