Daikin Super Multi NX B series User Manual

Si12-308 Instruction
System Configuration 117
■
Outdoor Unit
■
■■
■
Indoor Unit
1. Air filter
2. Photocatalytic deodorizing filter or
Air purifying filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front grille
5. Grille tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. INTELLIGENT EYE sensor:
•
It detects the movements of people and auto-
matically switches between normal operation
and energy saving operation.
8. Display
9. Air outlet
10. Flaps (horizontal blades)
11. Louvres (vertical blades):
• The louvres are inside of the air outlet.
12. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table.
• This switch is useful when the remote controller
is missing.
13. Operation lamp (green)
14. TIMER lamp (Yellow)
15. HOME LEAVE lamp (red)
16. Signal receiver:
•
It receives signals from the remote controller.
• When the unit receives a signal, you will hear a
short beep.
• Operation start .............beep-beep
• Settings changed..........beep
• Operation stop ..............beeeeep
■
■■
■

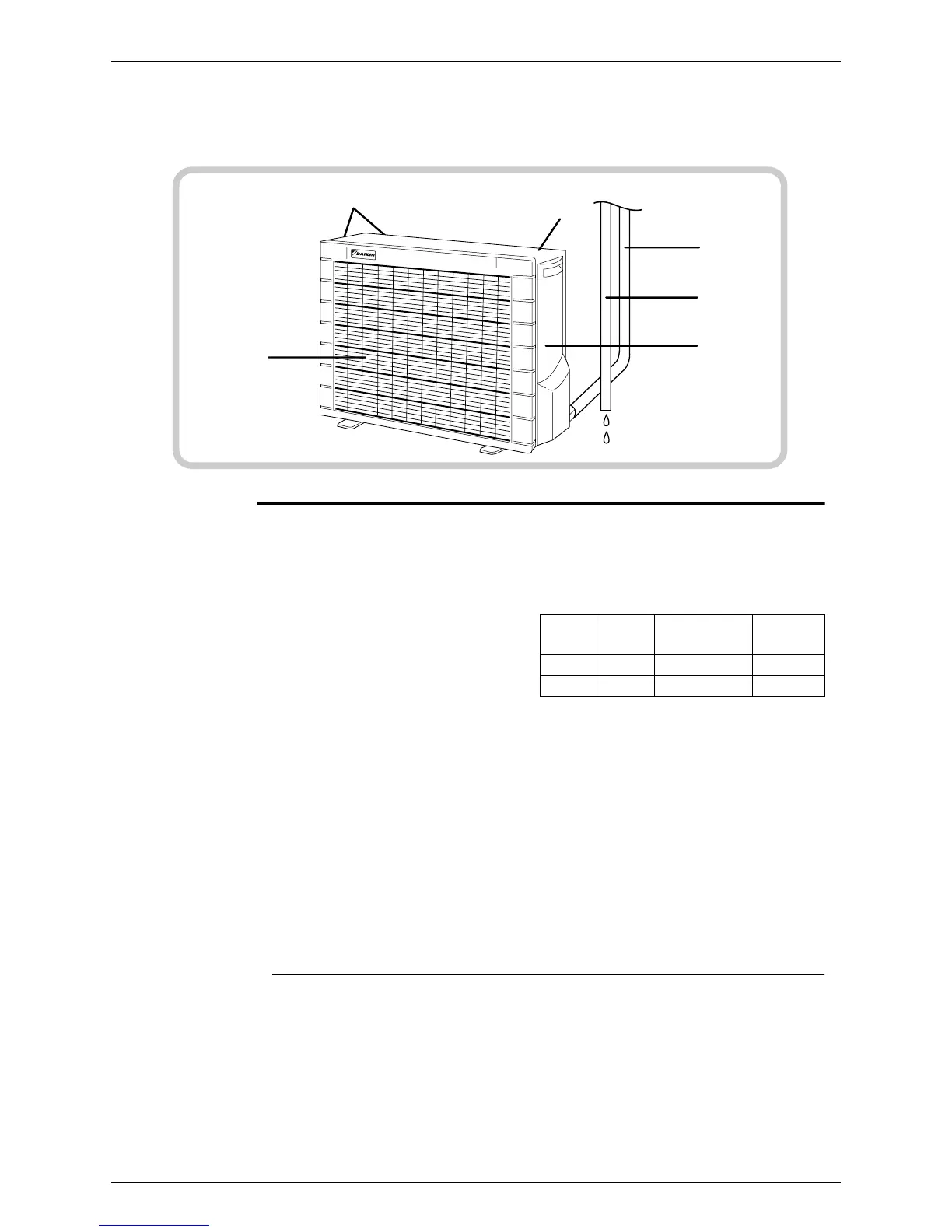

Outdoor Unit
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
22. Outside air temperature sensor:
•
It senses the ambient temperature around the
unit.
Appearance of the outdoor unit may differ from some models.
19
22
20
21
18
17
Mode
Temperature
setting
Air flow
rate
FTKE COOL
22
°
C
AUTO
FTXE AUTO
25
°
C
AUTO
