70 Printed Circuit Board Connector Wiring Diagram
1.5 Floor Standing Type
Connectors
Note: Other Designations

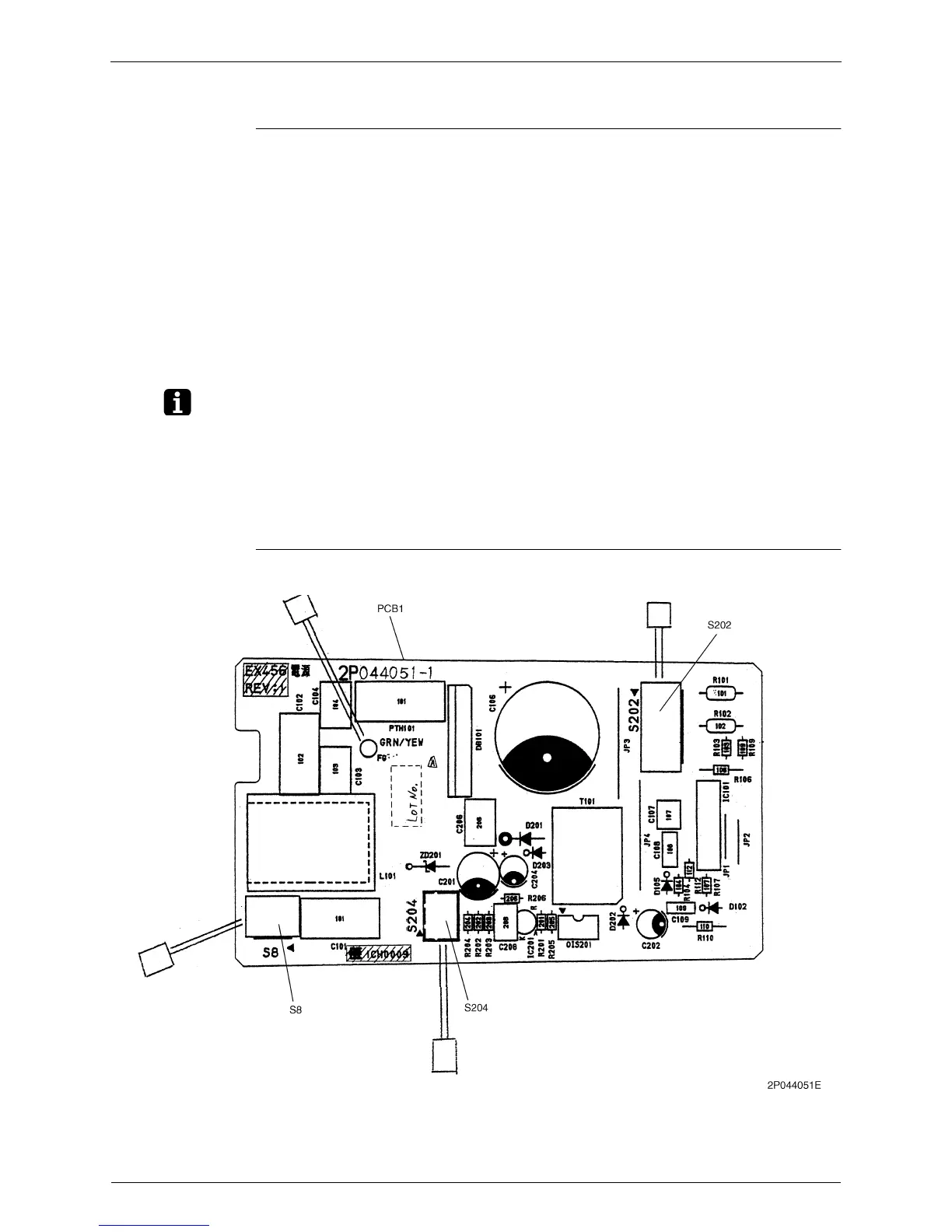

Power Supply PCB (PCB 1)
1) S6 Connector for Swing Motor and Lower Air outlet Motor
2) S21 Connector for HA
3) S23 Connector for signal receiver
4) S31, S32 Connector for Room Temp / Heat Exchanger Thermistor
5) S201, S203,
S7, S24, S26
Connector for Power Supply PCB (1)
6) S202, S204,
S8
Connector for Control PCB (2)
7) S25 Connector for Display PCB (3)
8) S301, S302 Connector for fan motors
1) V1 Varistor
2) FU FUSE
3) LED11 LED for operation
4) LED12 LED for timer
5) LED14 LED for intelligent eye
