Si12-308 Function of Main Structural Parts
Function and Control 87
2. Function of Main Structural Parts
2.1 Main Structural Parts
1. Compressor
A Swing compressor, being operated by INV control.

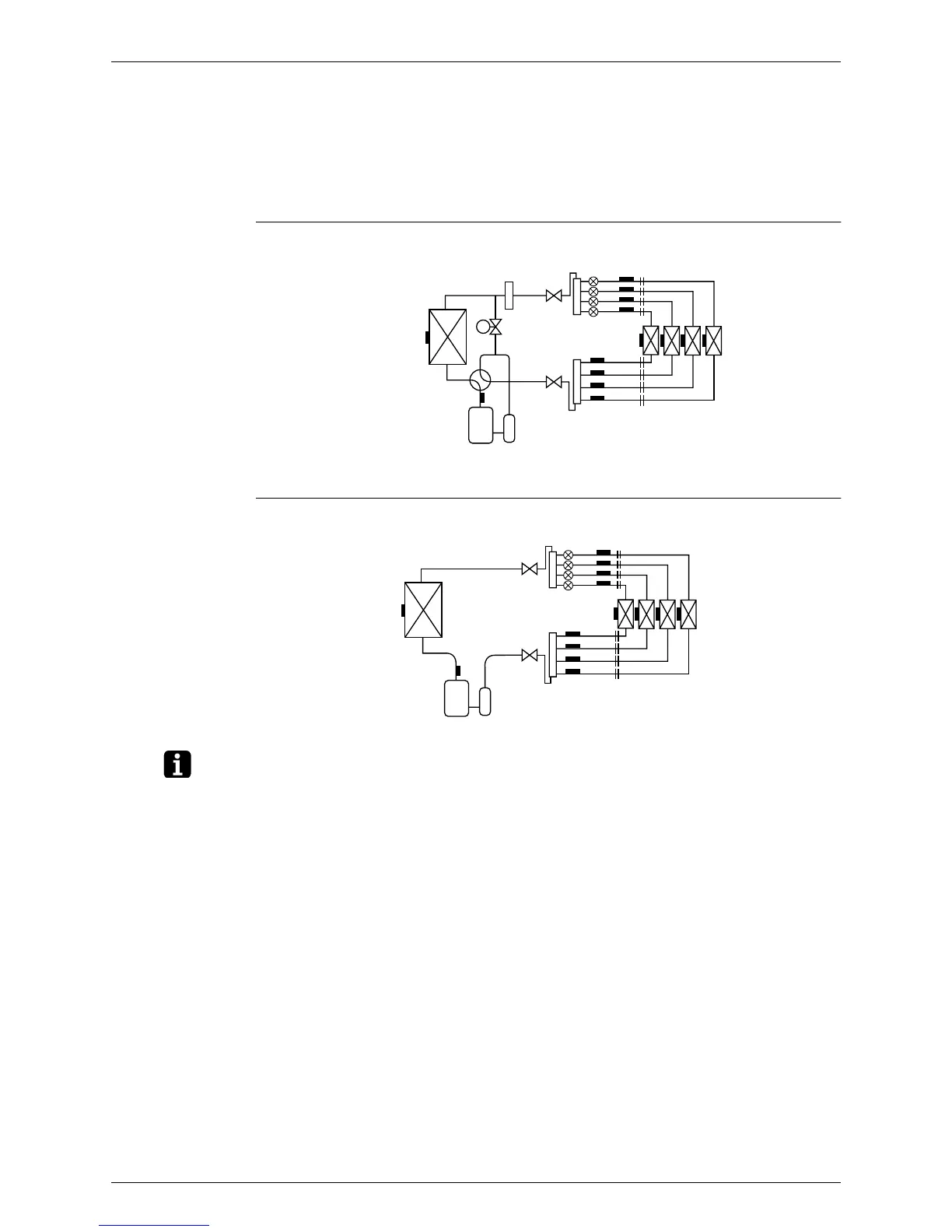

Heat Pump Model
Cooling Only
Model
Note: 1. Expansion Valve : In Case of 2MK(X).....EVA-B, 3MK(X).....EVA-C, 4MK(X).....EVA-D,
2. Liquid pipe thermistor : R410A Type only
2 Four-way valve
1 Compressor
3 Solenoid valve
EVB
EVC
EVD
EVA
Receiver
4 Expansion valve
(R2433)
SV
D
1 Compressor
EVB
EVC
EVD
EVA
4 Expansion valve
(R2434)
