Si12-308 Outdoor Unit (80 / 90 Class)
Removal Procedure 221

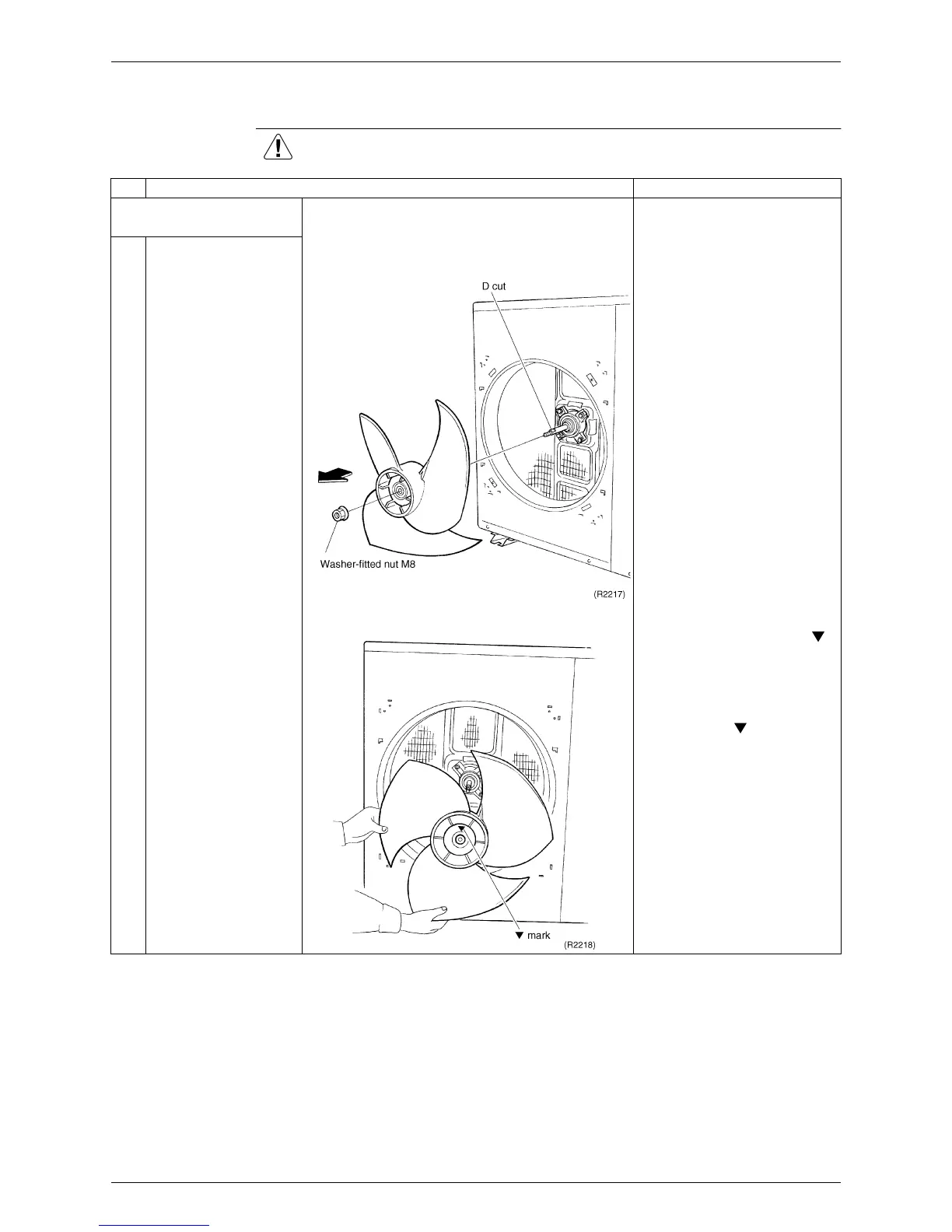

1.2 Removal of Propeller Fans
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

Remove the discharge
outlet grill
1
To take off propeller
fan, remove the
washer-fitted nut M8.
2
Remove the propeller
fan.

For reassembling, align
mark of propeller fan with
D-cut section of motor shaft.

Mount the propeller fan while
positioning mark to the
top.
