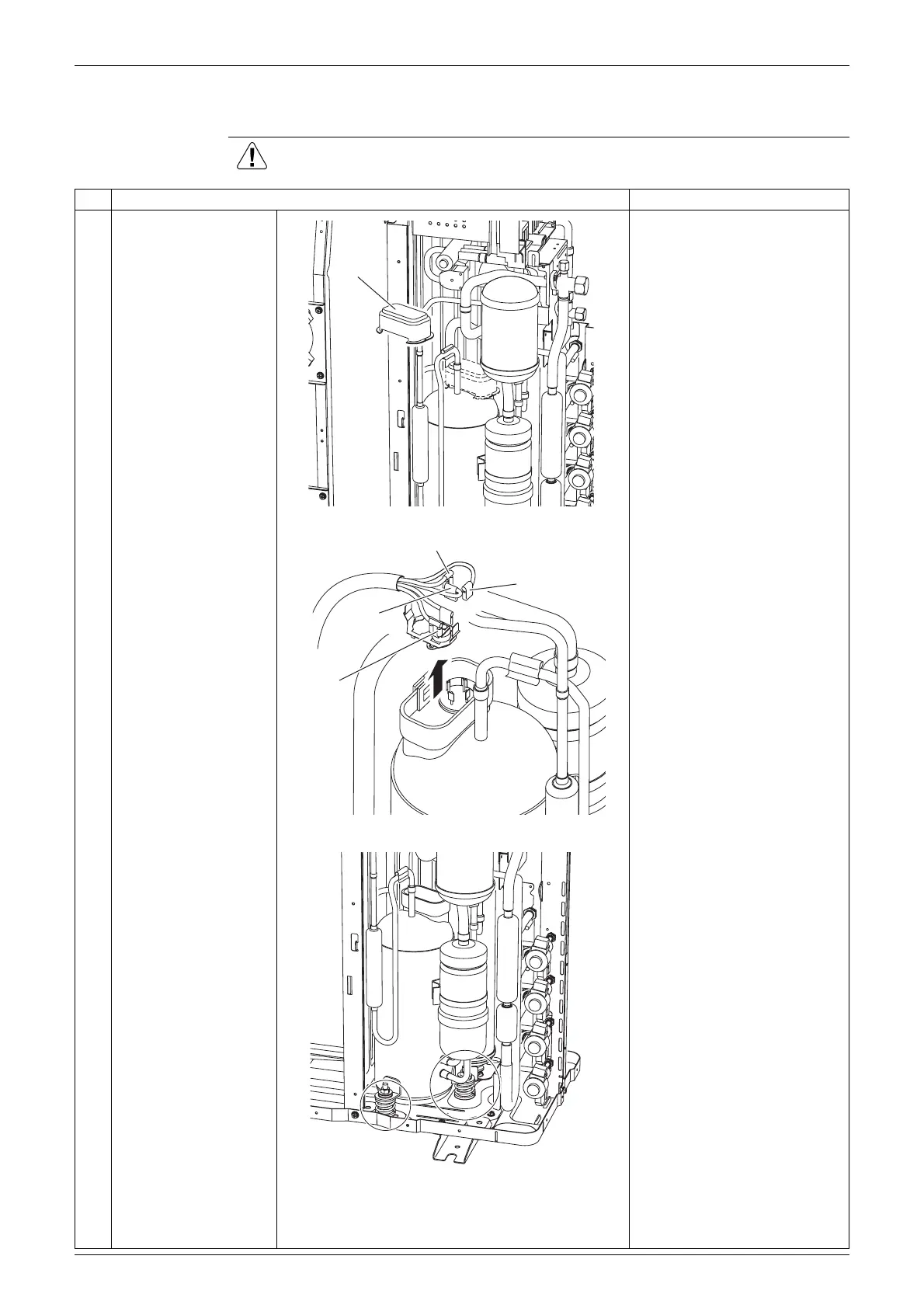

Removal Procedure 437
2.7 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.

U : red, V : yellow, W : blue
3
Remove the overload
protector.
4
Remove the 2 nuts.

Disconnect the pipings,
referring to page 400.
(R6466)
Terminal
cover
(R9471)
W(blue)
U(red)
Overload
protector
V(yellow)
(R10440)
