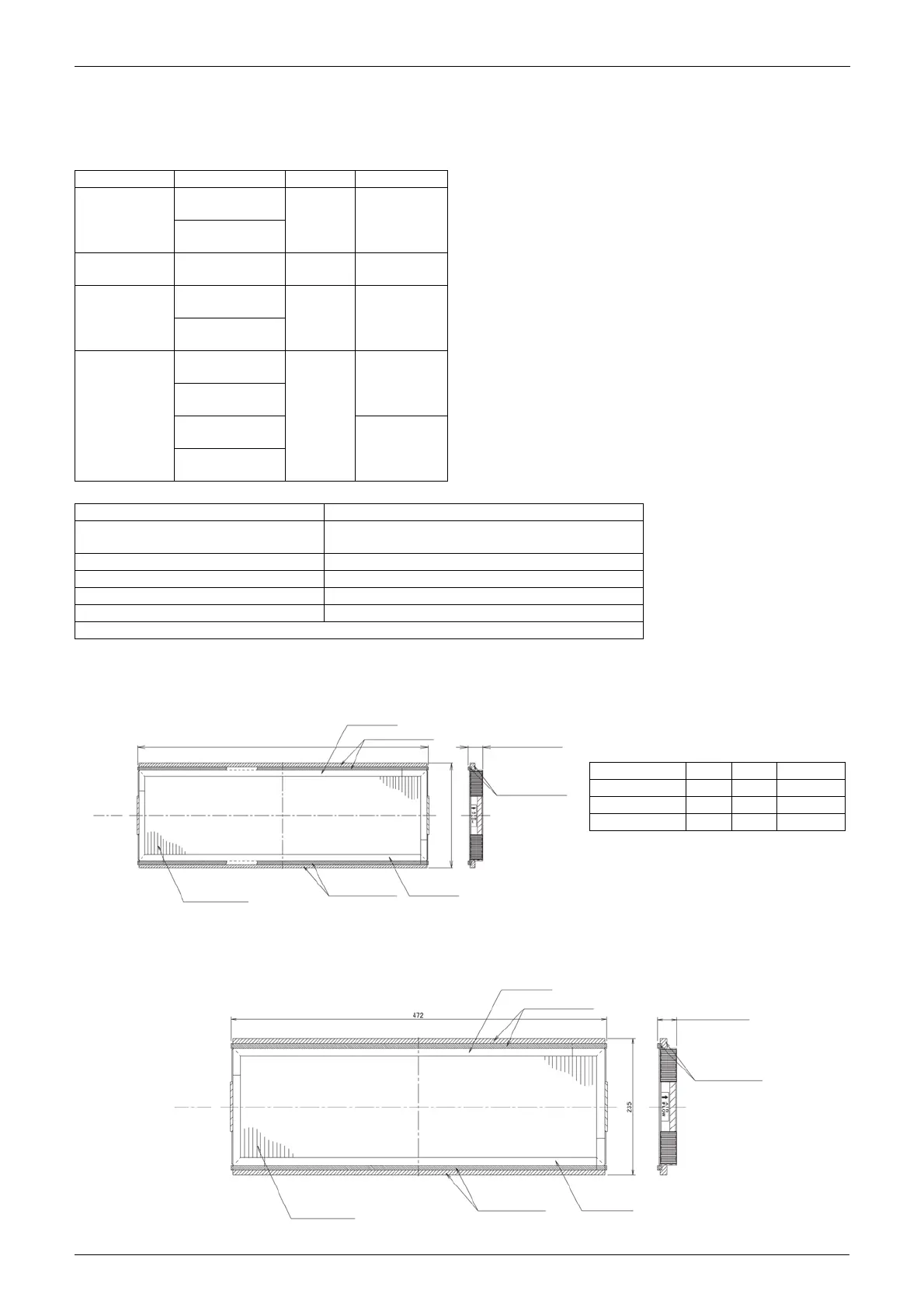

Details of Optional Accessories EDMMT712101
166 VAM-HVE/HVLT Series
15.7 KAF242J25M / KAF242J50M / KAF242J65M / KAF242K100M:
High Efficiency Filter
Specification
15.7.1 Dimensions
KAF242J25M / KAF242J50M / KAF242J65M Unit: mm
JC: 3D116623
KAF242K100M
Part No. Applicable model Q’ty / Set Required set
KAF242J25M
VAM150HVE
VAM150HVLT
1
1
VAM250HVE
VAM250HVLT
KAF242J50M
VAM350HVE
VAM350HVLT
21
KAF242J65M
VAM500HVE
VAM500HVLT
21
VAM650HVE
VAM650HVLT
KAF242K100M
VAM800HVE
VAM800HVLT
2
1
VAM1000HVE
VAM1000HVLT
VAM1500HVE
VAM1500HVLT
2
VAM2000HVE
VAM2000HVLT
Filters material Non woven cloth
Available conditions
Ambient temperature (0 – 50°C)
Relative humidity (40 – 95%)
Initial pressure loss 24.5 Pa (2.5 mmH
2O) or less.
Final pressure loss 78.4 Pa (8 mmH
2O) or less.
Average dust collecting efficiency 65% (Colorimetric method)
Life time Over 2500 hours (Outdoor dust density: 0.15 mg / m
3
)
VAM1500 · 2000 need 2 sets per one unit.
Part No. AA AB Airflow rate
KAF242J25M 469 167 225
KAF242J50M 366 177 225
KAF242J65M 382 206 293
Filters material
Sealing material
Filter frame
AA (Including thickness
of sealing material)
Filter frame
Sealing material
23 (Including
thickness of
sealing material)
Sealing material
AB (Including thickness
of sealing material)
JC: 3D120785
Unit: mm
Filters material
Sealing material
Filter frame
Filter frame
Sealing material
23 (Including
thickness of
sealing material)
Sealing material
