1. Product Introduction

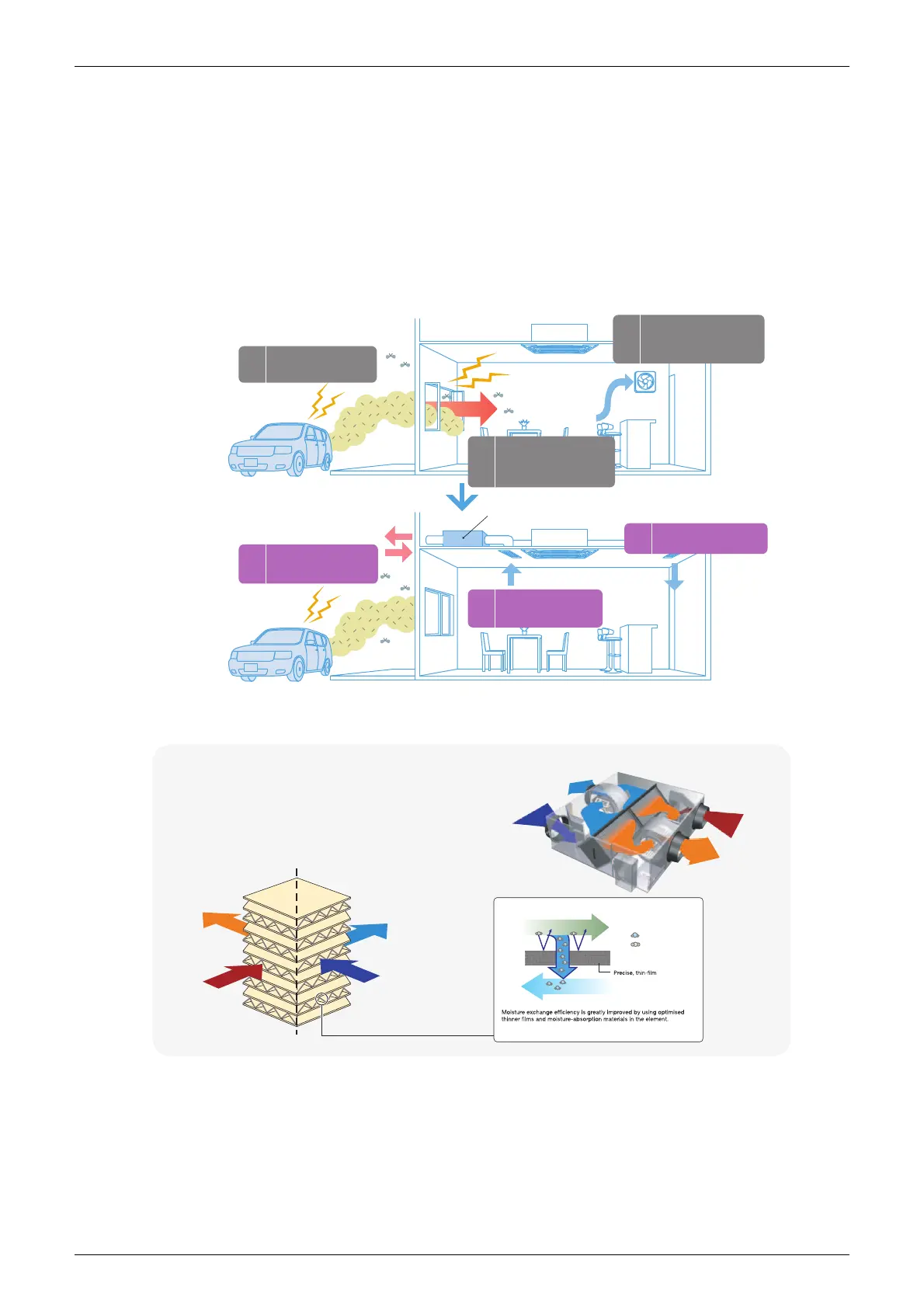

Controlling the necessary elements will improve the quality of ventilation.
Air Conditioner
Air Conditioner
In case of natural ventilation (Class 3)
In case of install Heat Reclaim
Ventilator (VAM) (Class 1)
Heat Reclaim Ventilator (VAM)
2
Reduces energy loss by
heat recovery
3
Prevent insects, dust and
noise entering into room
from outside
3
Insects, dust and noise
enter from outside
2
Conditioned air will be
released through windows
and exhaust fan
1
Maintain stable room
temperature while
ventilation is being done
1
Room temperature
increases due to
unconditioned outside air
Good quality air for every day
This unit recovers heat energy lost through ventilation and
curbs room temperature changes caused by ventilation, thereby
conserving energy and reducing the load on the air conditioning system.
Total heat exchange ventilation
Molecule of water
Miscellaneous gas
CO
2 molecule, etc.
Sheet structure
OutdoorIndoor
Furthermore, miscellaneous gas barrier properties are maintained by
decreasing the porosity in the moisture-absorption materials.
High-humidity air
Low-humidity air
material
Exhaust air
Supply air
Air conditioning load is reduced by heat recovery.
OA
(Fresh air from
outdoors)
OA
(Fresh air from
outdoors)
SA
(Supply air
to room)
SA
(Supply air
to room)
EA
(Exhaust air to outdoors)
EA
(Exhaust air to
outdoors)
RA
(Return air
from room)
RA
(Return air
from room)
