EDMMT712101 Details of Optional Accessories
VAM-HVE/HVLT Series 167
15.8 K-FDS101E / K-FDS151E / K-FDS201E / K-FDS251E /
K-FDS102E / K-FDS152E / K-FDS202E / K-FDS252E: Flexible Duct

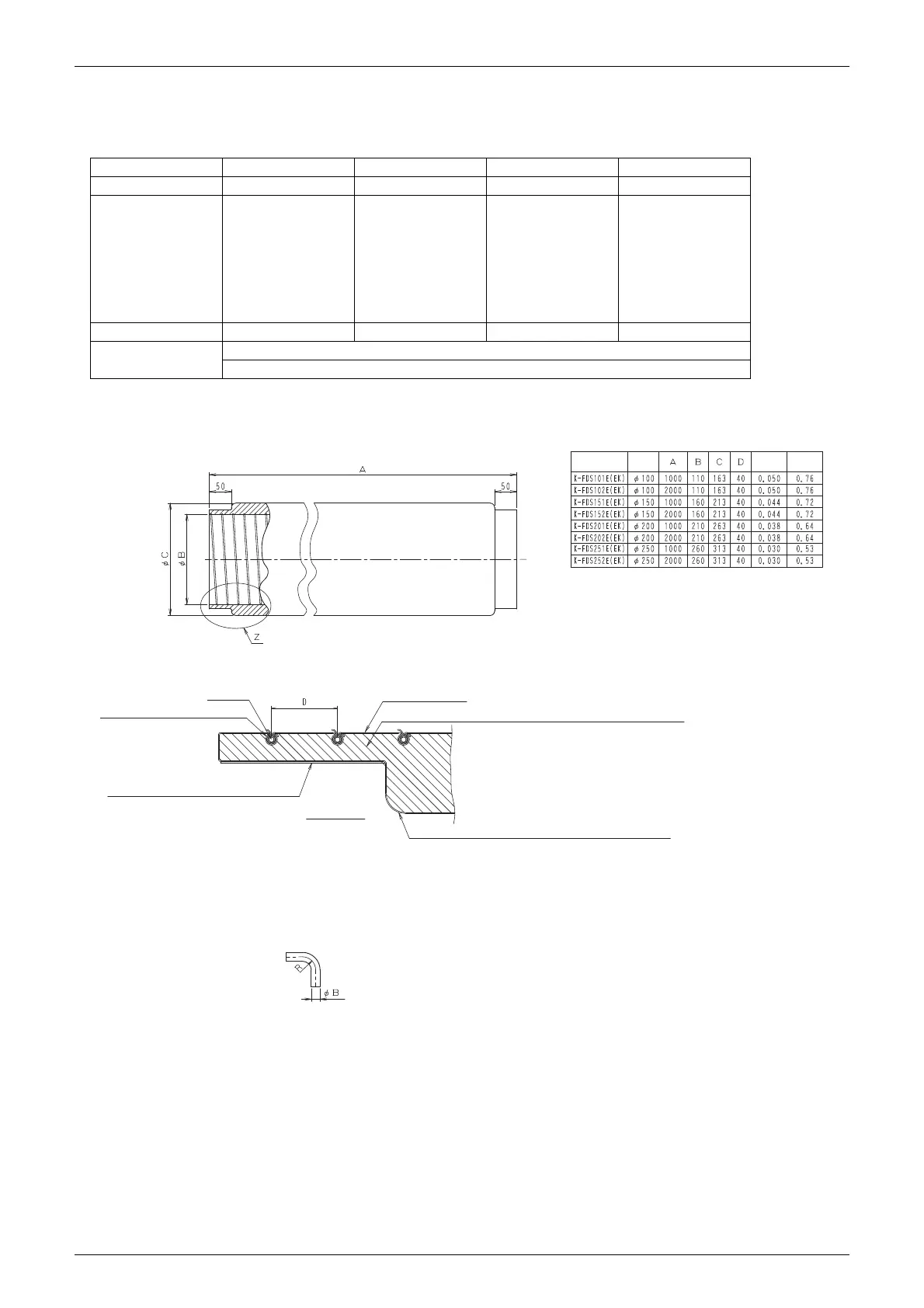

15.8.1 Dimensions
Part Name: 1 m K-FDS101E K-FDS151E K-FDS201E K-FDS251E
Part Name: 2 m K-FDS102E K-FDS152E K-FDS202E K-FDS252E
Applicable model
VAM150HVE
VAM150HVLT
VAM250HVE,
VAM350HVE
VAM250HVLT,
VAM350HVLT
VAM500HVE,
VAM650HVE
VAM500HVLT,
VAM650HVLT
VAM800HVE,
VAM1000HVE,
VAM1500HVE,
VAM2000HVE
VAM800HVLT,
VAM1000HVLT,
VAM1500HVLT,
VAM2000HVLT
Nominal diameter 100 150 200 250
Duct length
1 m (101E, 151E, 201E, 251E)
2 m (102E, 152E, 202E, 252E)
(Connection diameter)
Filament
Steel plate (zinc-treated) (t0.5)
Terminal treatment material (fabric tape)
Details of Z
Non-woven fabric
Heat insulating material (glass wool, 24kg/m
3
thickness:25mm)
Outer face covering material (polypropylene resin film)
• Recommended use range
Maximum airflow rate: 10m/s
Static pressure: -50Pa to 300Pa
Working temperature and ambient temperature: -10°C to 80°C
Notes:
1) Outer covering colour E: gray, EK: black
2) Resistance factors are values when R/B = 3 at 90°bending
Model name
Nominal
diameter
Friction
factor
Resistance
factor
JC: 3D085886
To Next Page
