Danfoss EtherNet/IP Midi Drive FC 280 User Manual

6 Troubleshooting

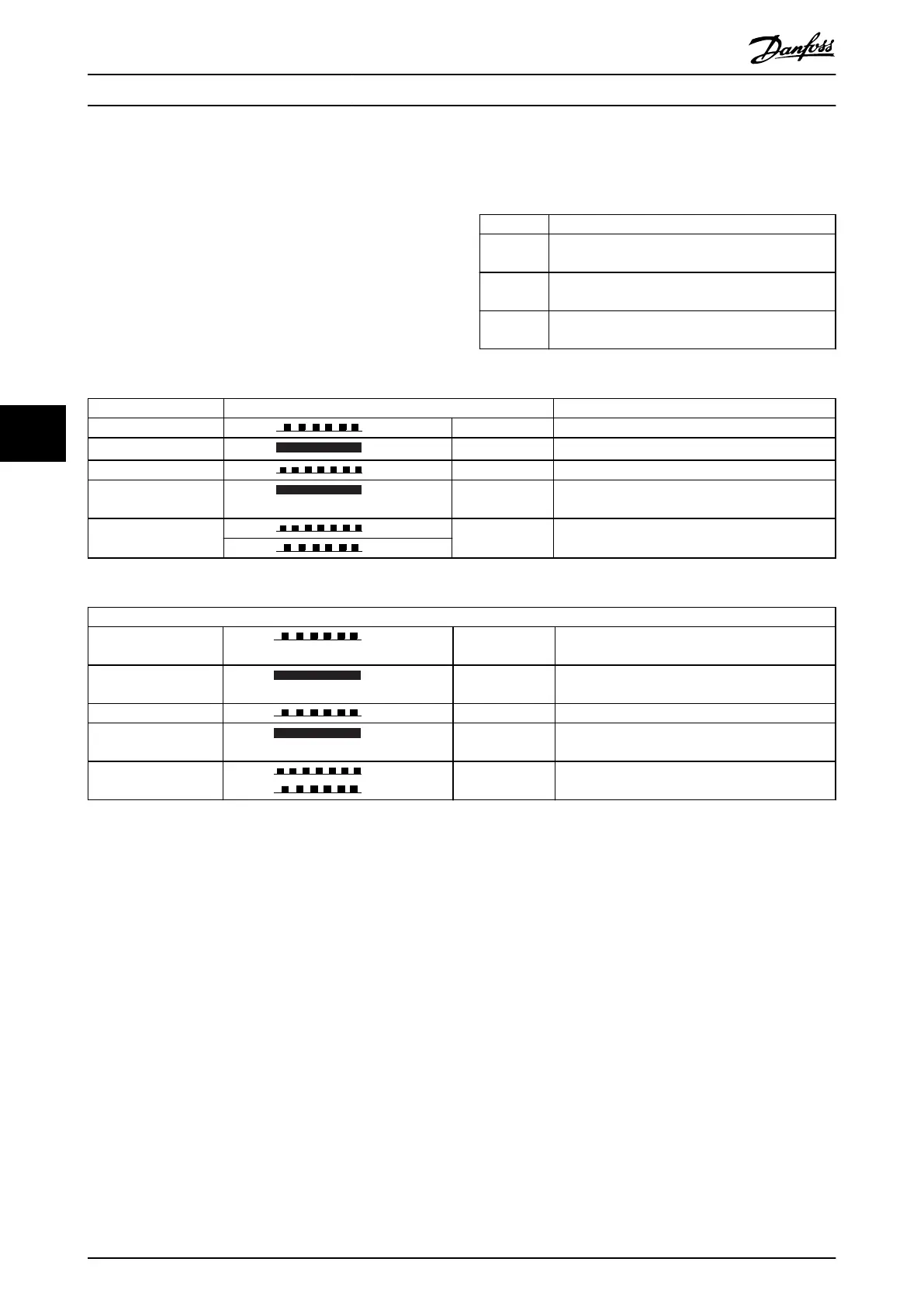

6.1 Step-by-step Troubleshooting
6.1.1 LED Status
The EtherNet/IP interface has 3 bicolored LEDs that allow
fast and detailed diagnosis. Each LED is linked to its unique
part of the EtherNet/IP interface, see Table 6.1.
LED label Description
MS
Module status. Reects the activity on the
EtherNet/IP stack.
NS1
Network status 1. Reects the activity on Ethernet
port 1.
NS2
Network status 2. Reects the activity on Ethernet
port 2.
Table 6.1 LED Label
State LED Description
Standby Green: Flashing green The device needs commissioning.
Device operational Green: Solid green The device is operational.
Major recoverable fault Red: Flashing red The device has detected a recoverable fault (MAR).
Major unrecoverable
fault
Red: Solid red The device has detected an unrecoverable fault
(MAU).
Self-test
Red:
Flashing red/
green
The EIP option is in self-test mode.
Green:
Table 6.2 MS: Module Status
State LED Description
No connections Green: Flashing green There are no established CIP connections to the
device.
Connected Green: Solid green There is at least 1 established CIP connection to
the device.
Connection timeout Red: Flashing red 1 or more CIP connections have timed out.
Duplicate IP Red: Solid red The IP address assigned to the device is already in
use.
Self-test
Red: Flashing red/
green
The EIP option is in self-test mode.
Green:
Table 6.3 NS1+NS2: Network Status (1 per Port)
6.1.2 No Communication with the
Frequency Converter
Check: Link status
If CIP connection is not established, the status of the
Ethernet link cannot be directly identied using the LEDs.
Verify presence of the link via parameter 12-10 Link Status.
Verify that the link is constantly present via
parameter 12-11 Link Duration.
The parameter shows the duration of the present link and
is preset to 00:00:00:00 when the link is broken.
Check: Cabling
In rare cases of cabling misconguration, the option may
show the presence of a link, but no communication is
running. Exchange the cable if in doubt.
Check: IP address
Verify that the option has a valid IP address (refer to
parameter 12-01 IP Address). When the option has identied
a duplicate IP address, NS LEDs are solid red. When the
option is set up for BOOTP or DHCP, verify that a BOOTP or
DHCP server is connected in parameter 12-04 DHCP Server.
If no server is connected, the parameter shows:
000.000.000.000.
Troubleshooting EtherNet/IP
34 Danfoss A/S © 06/2016 All rights reserved. MG07H102
6
6
