FC 300 Instruction Manual
How to Program
5 line readouts, 4 line readouts or Smart Logic Control.
Use [Status] for selecting the mode of display or for changing back to Display mode from either the Quick Menu
mode, the Main Menu mode or Alarm mode. Also use the [Status] key to toggle single or double readout mode.
[Quick Menus] allows quick access to different Quick Menus such as:
- My personal menu
- Quick setup
- Changes made
- Loggings
Use [Quick Menus] for programming the parameters b elonging to the Quick Menu. It is possible
to switch directly between Quick Menu mode and Main Menu mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode and Quick Menu mode.
Parameter shortcut can be carried o ut by pressing down the [Main Menu] key for 3 seconds.
The parameter shortcut allows direct access to any parameter.
[Alarm log] displays an A larm list of the five latest alarms (numbered A1-A5). To obtain additional details
about an alarm, use the a rrow keys to maneuver to the alarm number and press [OK]. You will now receive
information about the condition of your adjustable frequency drive right before en
tering the alarm mode.

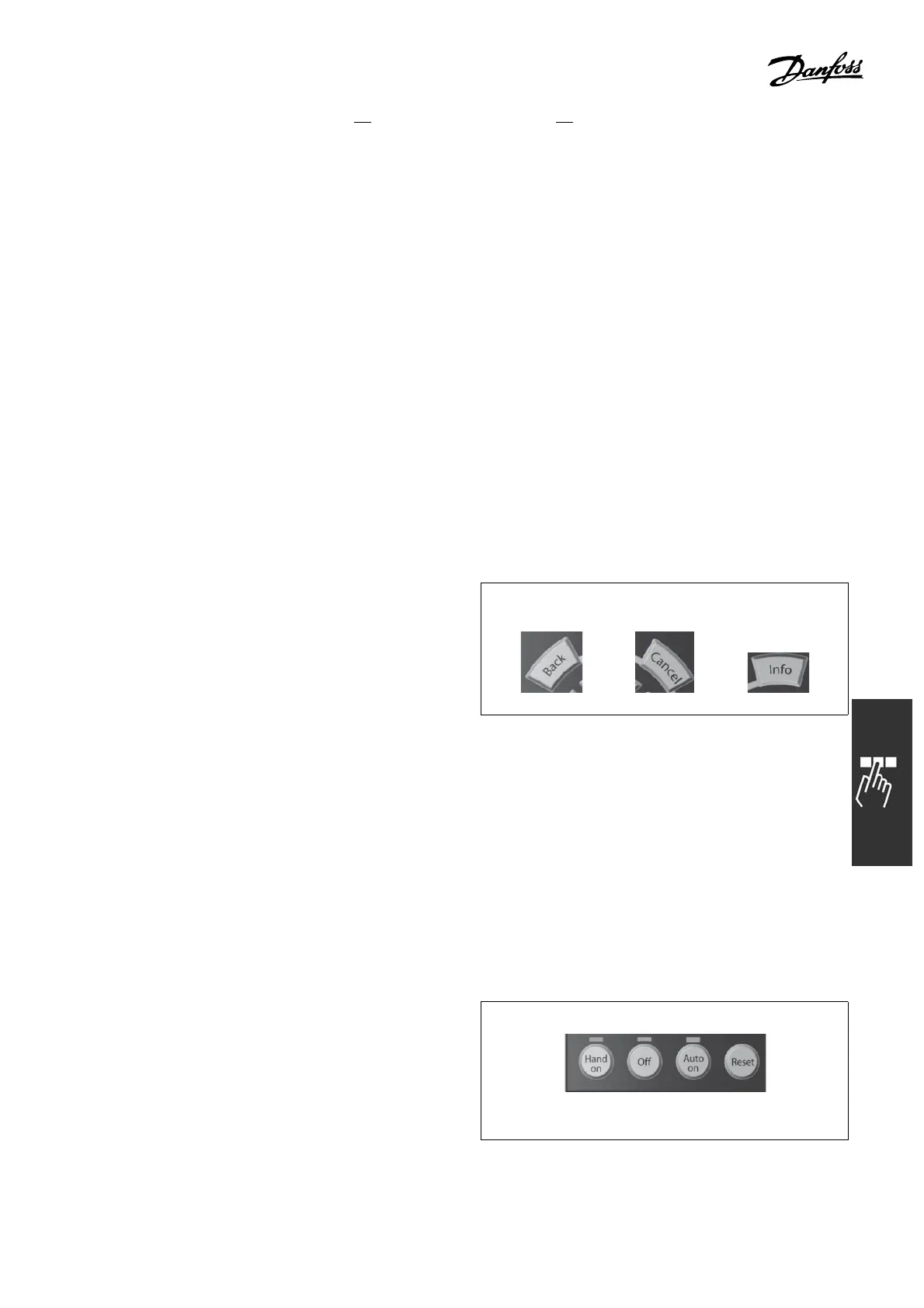

[Back] takes you to the previous step or layer
in the n avigation structure.
[Cancel] annuls your last change or co mmand as
long as the display has not been changed.
[Info] supplies information about a command,
parameter, or function in any display window. [Info]
provides detailed information whenever
help is needed.
Exit info mode by pres sing either [Info],
[Back], or [Canc el].
Navigation Keys
The four n avig ation arrows are used to navigate between the different choices available in [Quick
Menus], [Main Menu] and [Alarm log]. Usethekeystomovethecursor.
[OK] is used for choosing a parameter m arked by the cursor and for enabling the change of a parameter.
Local Control Keys for local control are found
at the bottom of the control panel.
130BP046.10
37
MG.33.A4.22 - VLT is a registered Danfoss trademark
