Danfoss PVG 32 Service Manual

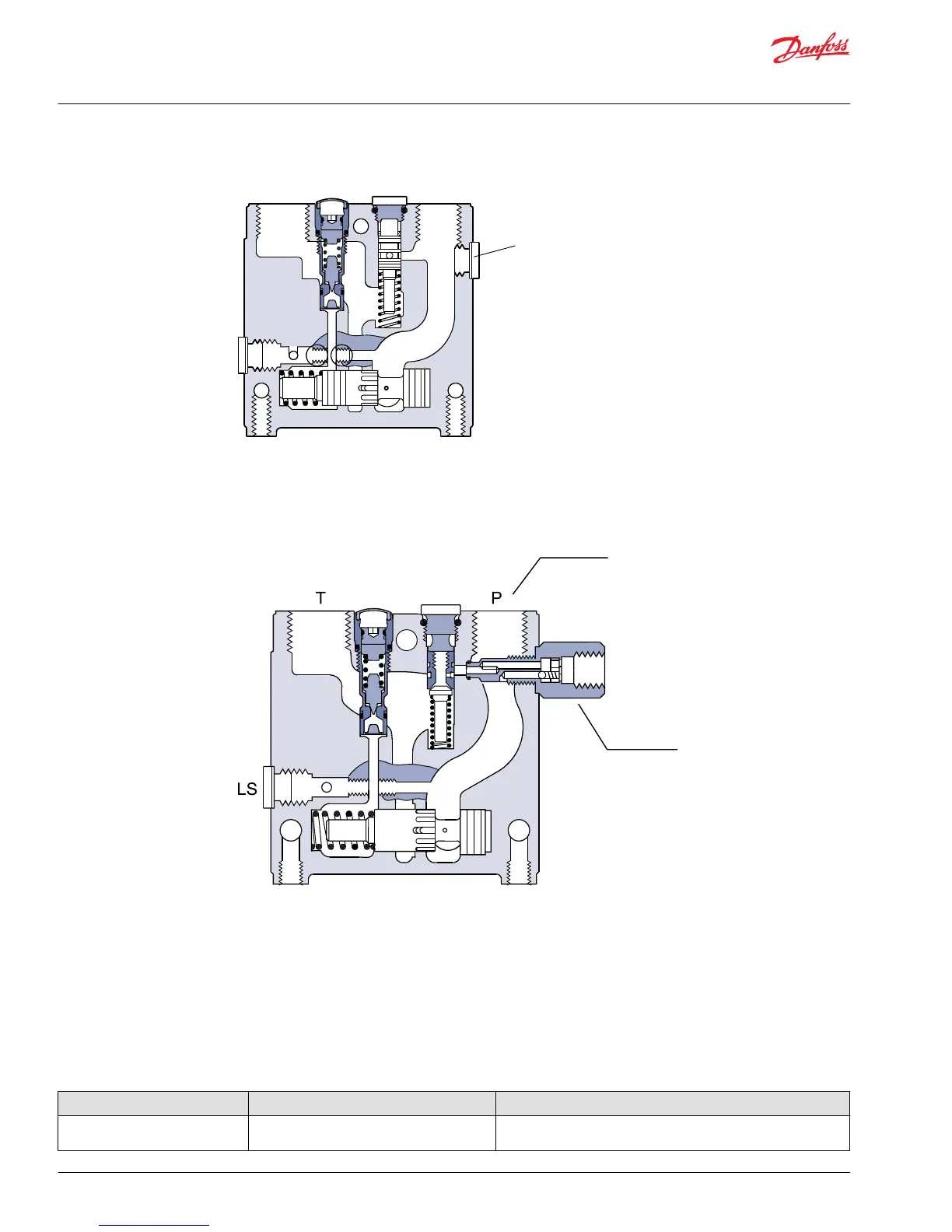

Pressure gauge port
P107 735E
Pressure gauge port
When valve is equipped with the PVPC option use a running tee to measure pressure. Torque tee to hose
adaptor torque specification.
PVPC with check valve
P107 734E
PVPC with check valve
Tee into pressure port
to measure pressure
Open center plug
Description: Plug that is installed in the inlet cover for a system with a fixed displacement pump.
Location: In the PVP module (Inlet cover).
Function: Connection for the load sense signal to shift the unloading spool to build main system
pressure and provides a connection to the main system relief valve.
Failure mode Cause Corrective action
Valve operates at system relief
setting at all times
Open center plug is not seated properly Reinstall plug and torque to 4 Nm [35 lbf•in] using a 3 mm internal
hex wrench
Service Manual
PVG 32 Proportional Valve Group
PVG 32 Component Troubleshooting
22 |
©
Danfoss | February 2017 11039167 | AX00000031en-US0301
