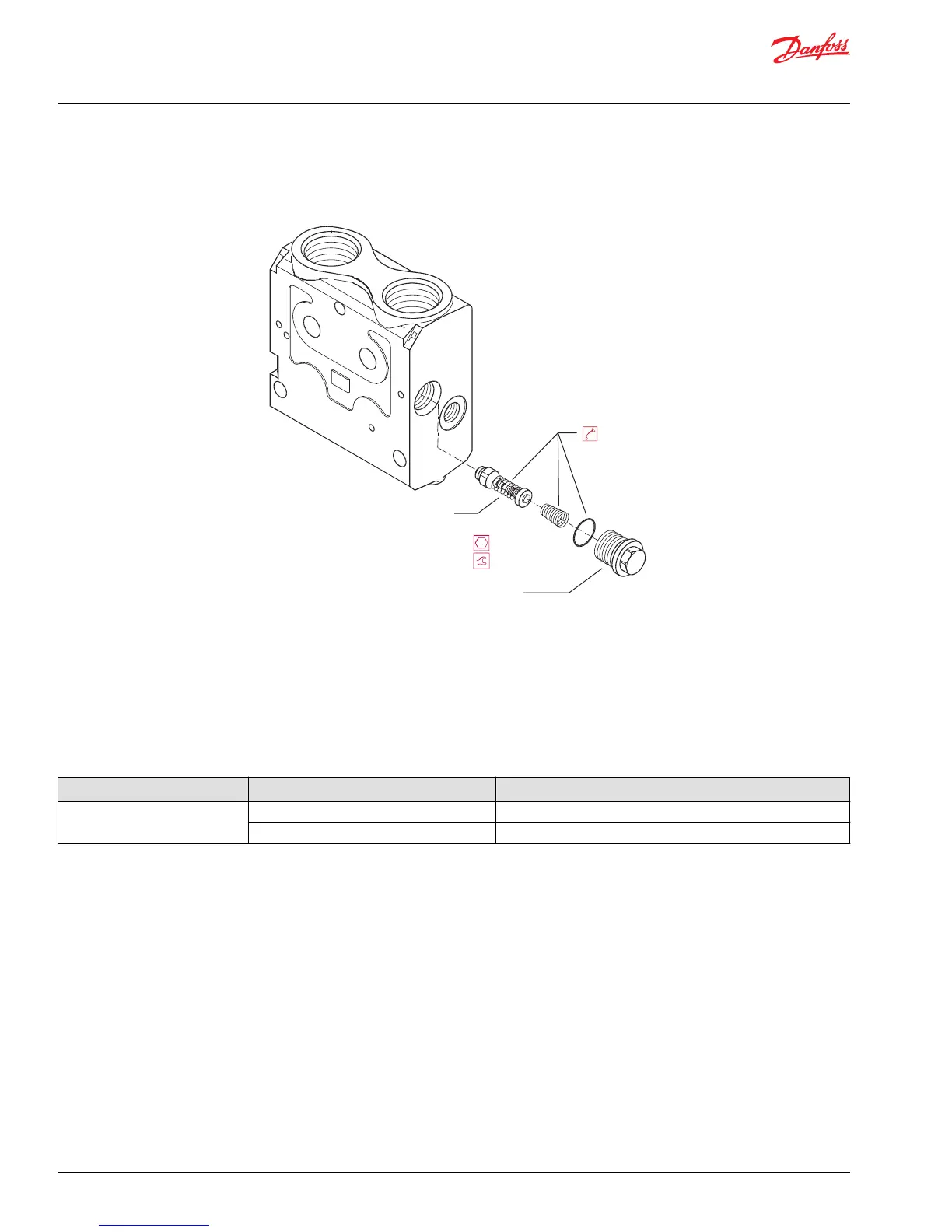

PVPVM module
P107 808E
13 mm
40 Nm
[354 lbf•in]
Plug
Do not try to adjust
or disassenmble PVLP
PVAS module
Description
: Tie rod kit.
Location
: Through the valve stack.
Function
: Holds the stack together.
Failure mode
Cause
Corrective action
Leaking externally between
sections
Tie rods under torqued
Check and retorque - 28 Nm [248 lbf•in]
Tie rods torque too tight
Replace and retorque - 28 Nm [248 lbf•in]
S
e
r
v
i
c
e
M
a
n
u
a
l
P
V
G
3
2
P
r
o
p
o
r
t
i
o
n
a
l
V
a
l
v
e
G
r
o
u
p
PVG 32 Component Troubleshooting
36 |
©
Danfoss | February 2017
11039167
|
AX00000031en-US0301
35
37
Table of Contents
Default Chapter
3
Table of Contents
3
Overview
5
General Instructions
5
Remove the Unit
5
Keep It Clean
5
Replace All O-Rings and Gaskets
5
Secure the Unit
5
February
5
Safety Precautions
6
Unintended Machine Movement
6
Flammable Cleaning Solvents
6
Fluid under Pressure
6
Personal Safety
6
Hazardous Material
6
Acronyms
6
Operation
8
PVG 32 Group with Open Center PVP (PVB with Flow Control Spool)
8
PVG 32 Group with Closed Center PVP (PVB with Flow Control Spool)
8
PVG 32 Sectional Drawing
9
PVPC Plug for External Pilot Oil Supply
9
Friction Detent
11
PVBS, Main Spools for Flow Control (Standard)
12
PVBS, Main Spools for Flow Control (with Linear Characteristics)
12
PVBS, Main Spools for Pressure Control
12
PVPX Electrical LS Unloading Valve
13
System Troubleshooting
14
Overview
14
Troubleshooting a PVG Valve
14
No Cylinder/Motor Response in Either Direction When Remote Controller Is Actuated
15
Cylinder/Motor Responds in One Direction Only
16
Main Valve Spool Moves Without Oil Passing to Cylinder/Motor
16
Cylinder/Motor Operates Without Remote Controller Being Operated
17
Cylinder/Motor Responds Slowly to Remote Electrical or Hydraulic Controller Actuation
17
Erratic Cylinder/Motor Response to Electrical or Hydraulic Controller Operation
17
Hydraulic Oil Supply
18
Electrical Supply
18
Hydraulic (Remote) Pilot Control Pressure
19
PVG 32 Component Troubleshooting
20
Pressure Relief Valve
20
Pressure Reducing Pilot Valve
20
Pressure Gauge Connection
21
Open Center Plug
22
Closed Center Plug and Orifice
23
Pressure Adjustment Spool
24
LS Connection
25
LS Signal
25
10. Shuttle Valve
26
LS Pressure Limiting Valve
27
LS A, B Shuttle
27
Main Spool
28
Shock and Anti-Cavitation Valve PVLP
29
Pressure Compensator
30
Load Drop Check Valve
31
Maximum Oil Flow Adjustment Screws for Ports a and B
32
PVM Module
33
PVS Module
34
PVPVM Module
35
PVAS Module
36
PVPX LS Unloading Valve
37
PVEM, PVEA, PVEH, PVES Electrical Actuators
38
Troubleshooting Considerations
38
PVEO ON/OFF Electrical Actuator
39
PVPC Plug for External Pilot Control
42
PVMR Friction Module
42
