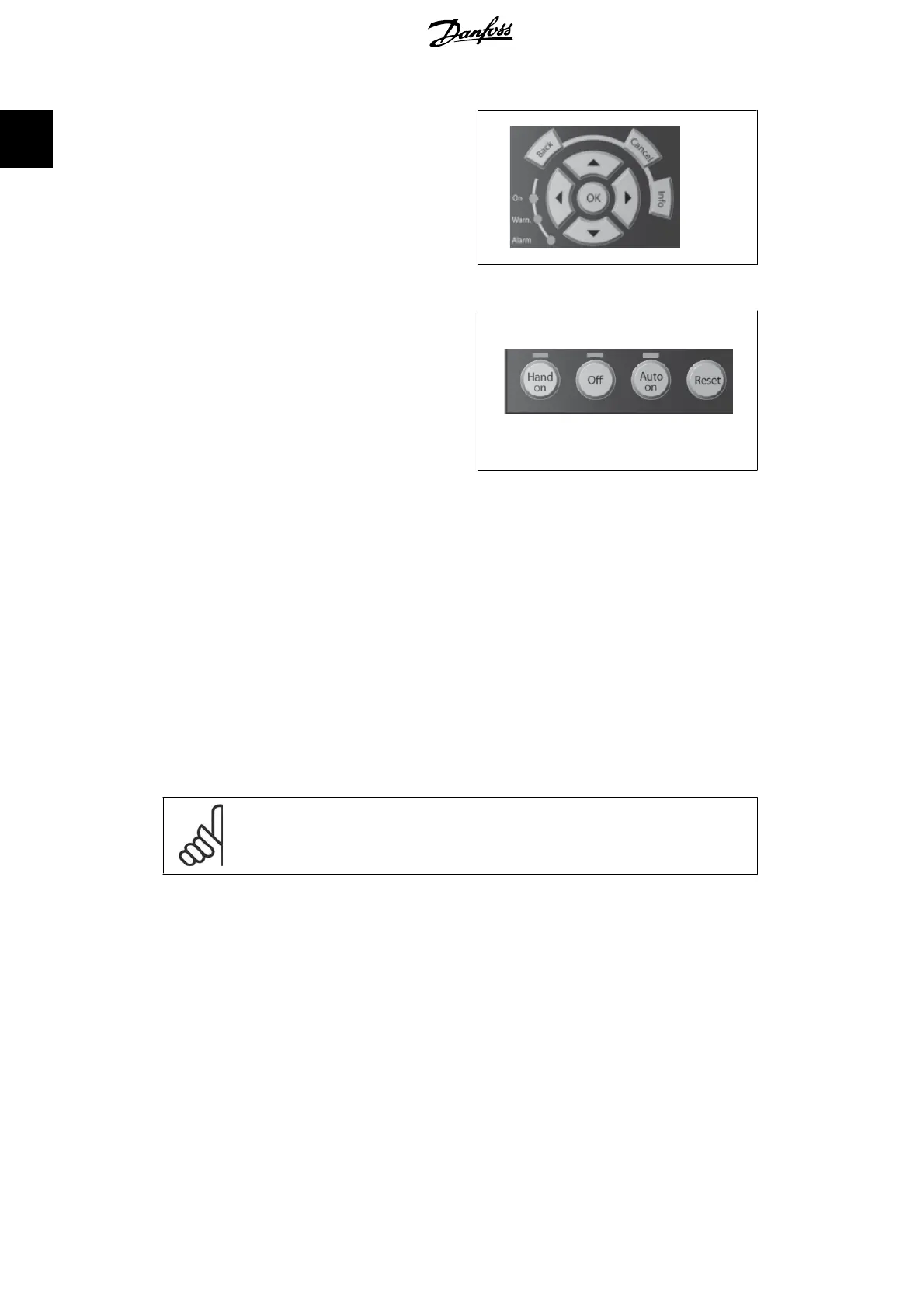

Navigation Keys
The four navigation arrows are used to navi-
gate between the different choices available
in [Quick Menu], [Main Menu] and
[Alarm Log]. Use the keys to move the cur-
sor.
[OK]
is used for choosing a parameter marked by
the cursor and for enabling the change of a
parameter.
130BT117.1
Operation Keys for local control are found
at the bottom of the control panel.
130BP046.10
[Hand On]
enables control of the frequency converter via the GLCP. [Hand on] also starts the motor, and it
is now possible to give the motor speed reference by means of the arrow keys. The key can be
Enabled
[1] or
Disabled
[0] via par.
0-40 [Hand on] Key on LCP.
The following control signals will still be active when [Hand on] is activated:
• [Hand on] - [Off] - [Auto on]
• Reset
• Coasting stop inverse (motor coasting to stop)
• Reversing
• Set-up select lsb - Set-up select msb
• Stop command from serial communication
•Quick stop
•DC brake
NB!
External stop signals activated by means of control signals or a serial bus will over-
ride a “start” command via the LCP.
[Off]
stops the connected motor. The key can be
Enabled
[1] or
Disabled
[0] via par.
0-41 [Off] key on
LCP.
If no external stop function is selected and the [Off] key is inactive the motor can only be
stopped by disconnecting the mains supply.
[Auto On
enables the frequency converter to be controlled via the control terminals and/or serial commu-
nication. When a start signal is applied on the control terminals and/or the bus, the frequency
converter will start. The key can be
Enabled
[1] or
Disabled
[0] via par.
0-42 [Auto on] key on
LCP.
1. How to Programme VLT
®
AQUA Drive Programming Guide
8
MG.20.O2.02 - VLT
®
is a registered Danfoss trademark
1
