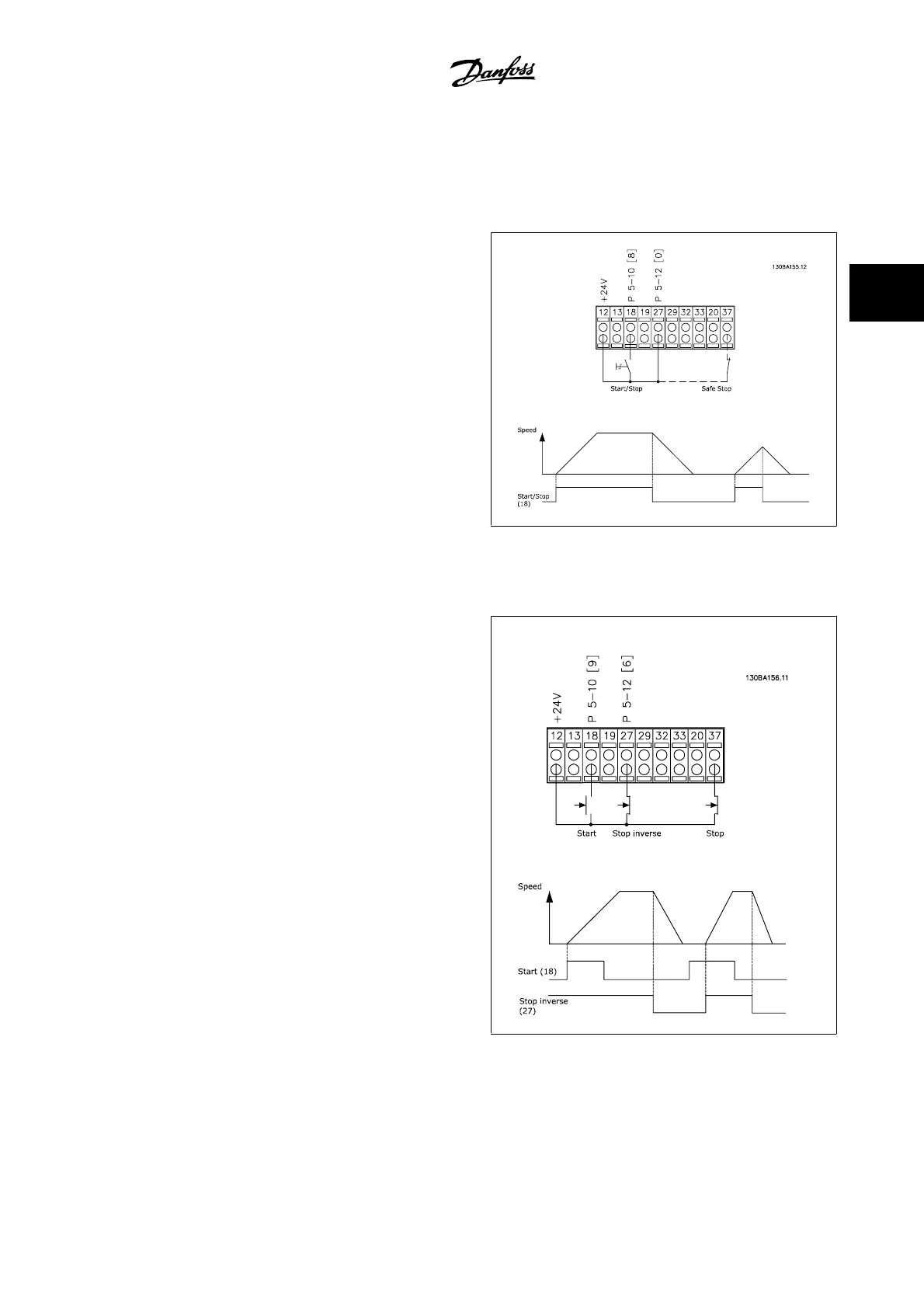

3.7 Connection Examples

3.7.1 Start/Stop

Terminal 18 = par. 5-10

Terminal 18 Digital Input

[8]

Start

Terminal 27 = par. 5-12

Terminal 27 Digital Input

[0]

No operation

(De-

fault

coast inverse

)

Terminal 37 = Safe stop

3.7.2 Pulse Start/Stop

Terminal 18 = par. 5-10

Terminal 18 Digital Input

[9]

Latched start

Terminal 27= par. 5-12

Terminal 27 Digital Input

[6]

Stop inverse

Terminal 37 = Safe stop

VLT AQUA High Power Instruction Manual 3 How to Install

MG.20.P3.22 - VLT

is a registered Danfoss trademark

3-67
