Labeling
Regulatory, reference and safety labeling for both models is shown in
Figure 1-5 and Figure 1-6.

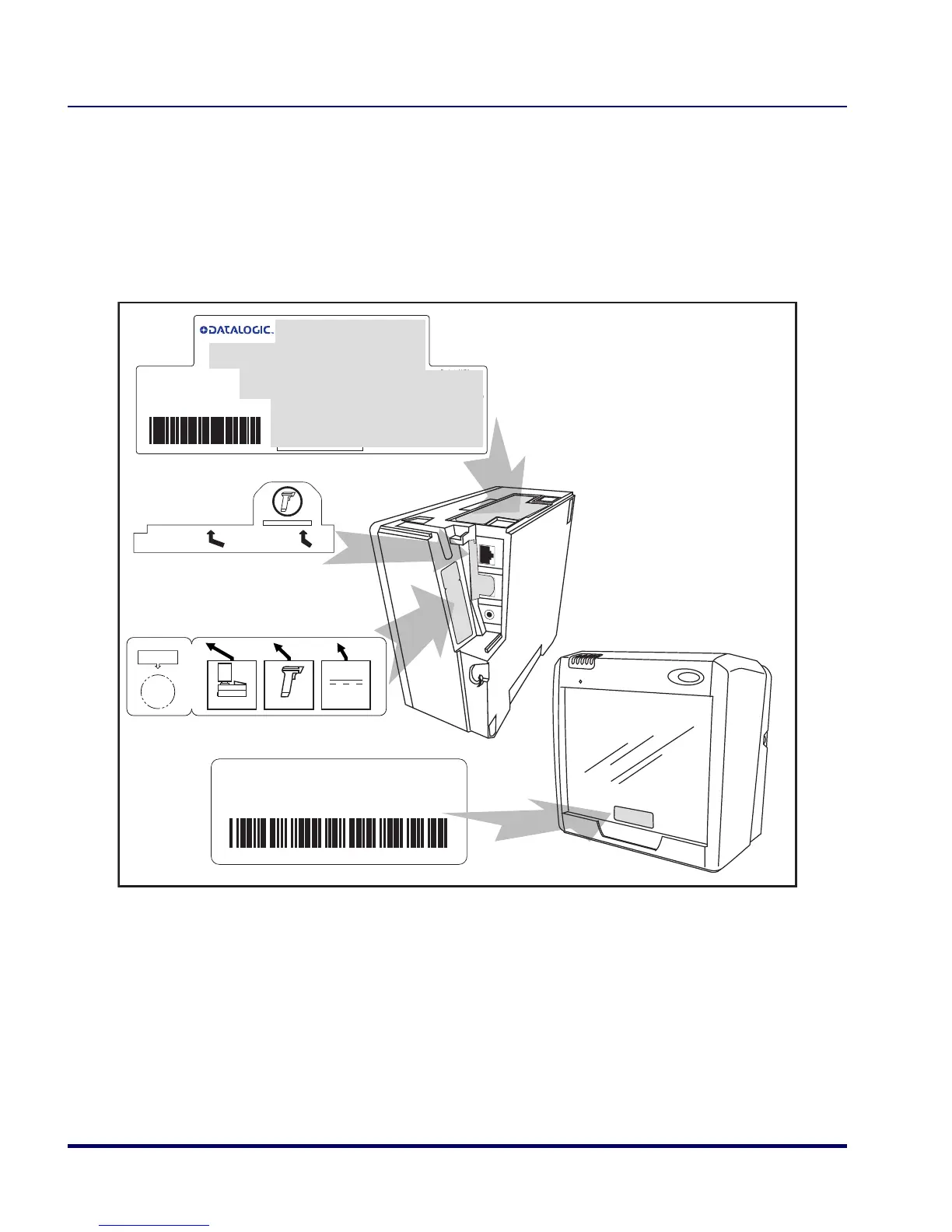

Figure 1-5. Labeling: Model 2200VS
IEC CLASS 1 LASER PRODUCT
Class IIa Laser Product. Avoid long term viewing of direct
laser light. Appareil á laser de classe IIa. Eviter toute
exposition prolongée de la vue à lumière laser directe.
6-1018
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Output:
+5V
+12V
Use ONLY PSC INC. AC/DC Power Supply
Input: 50 - 60 Hz (0.5 - 0.25A)
100 - 240VAC (P/N 8-0582)
Powe r: 1 8 Watts (max)
THIS LASER PRODUCT COMPLIES WITH 21CFR 1040 AS APPLICABLE AS A CLASS IIA PRODUCT
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est confirme à la norme NMB-003 du Canada.
N263
NRTL
Safety
tested
Production
monitored
PRODUCT SERVICE
Product of USA
U S
PSC Inc.
959 Terry Street
Eugene, OR 97402 USA
XXXXXXXXXXXX
CAUTION - CLASS 3R LASER RADIATION WHEN OPEN.
AVOID DIRECT EYE EXPOSURE.
6-1012
COVERED BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 4,709,195
4,709,369 4,712,853 4,749,879 4,786,798 4,792,666 4,798,943 4,799,164
4,816,660 4,861,972 4,861,973 4,866,257 4,868,836 4,879,456 4,963,719
4,991,692 5,144,118 5,179,270 5,198,649 5,247,162 5,229,588 5,410,108
5,459,308 5,440,110 5,475,207 5,493,108 5,705,802 5,723,852 5,834,708
This illustration shows general label
shape/content ONLY. For actual
regulatory, patent and other
information, view the labels on the
product, or contact your nearest
sales or service office.
Host Aux
Scanner Host PowerAux. Port
EAS Opening

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
