Datalogic Magellan 2200VS User Manual

352 Magellan
®
2200VS/2200VS and 2300HS/2300HS

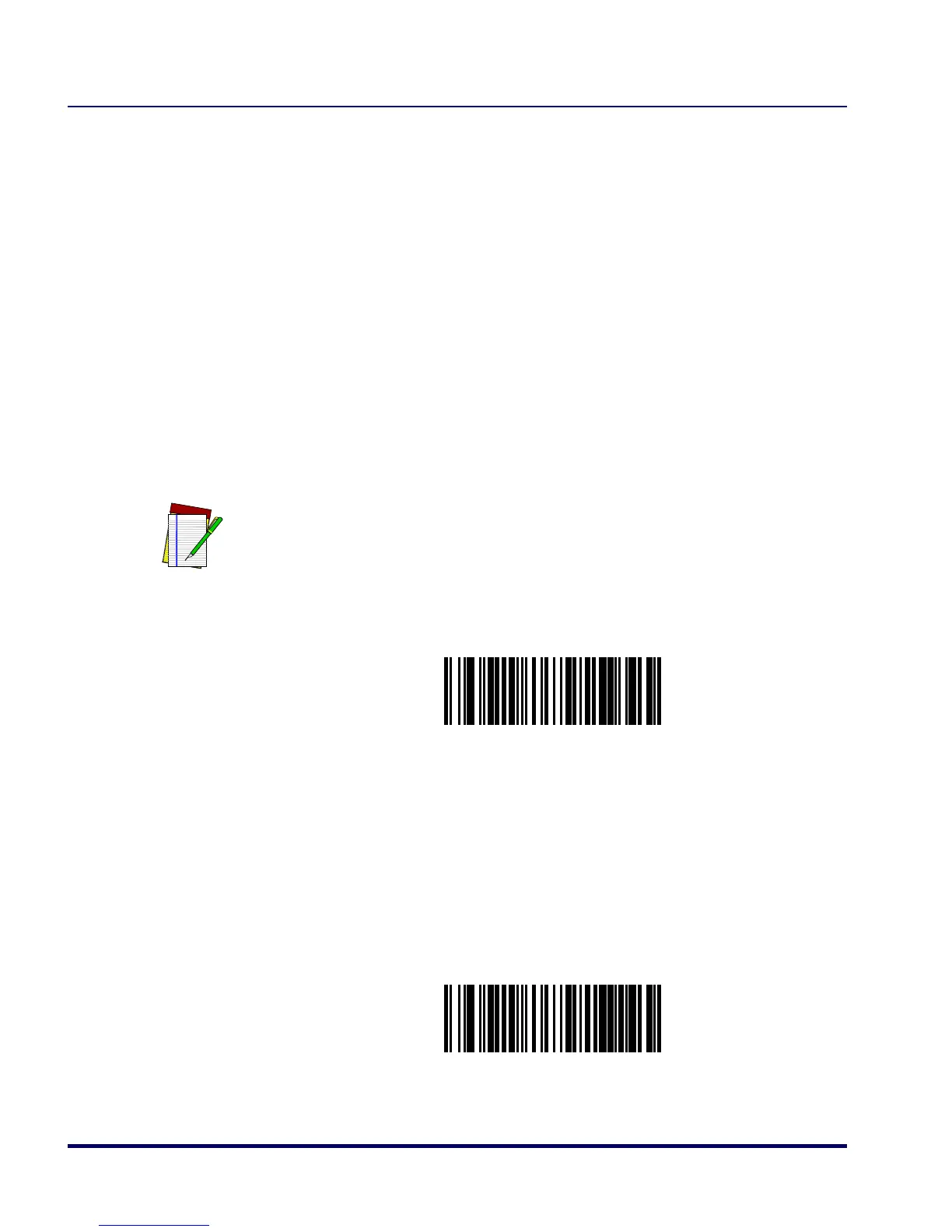

Codabar Stitching
Enables/disables stitching for Codabar labels. When parts of a Codabar
bar code are presented to the scanner with this feature enabled, the bar
code parts will be assembled by the scanner’s software, and the data will be
decoded if all bar code proofing requirements are met.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan your selection from the bar codes below. You’ll need to cover
any unused bar codes on this and the facing page to ensure that the
scanner reads only the bar code you intend to scan.
Complete the programming sequence by scanning the SWITCH bar
code.
CODABAR STITCHING = DISABLE
CODABAR STITCHING = ENABLE
NOTE
Codabar Stitching operates using fixed lengths ONLY. Codabar
Length 1 and/or Codabar Length 2 must be properly configured for
stitching to work.

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
