Setting Up the Reader
2 QuickScan™ QBT21X1
Setting Up the Reader
Follow the steps below to connect and get your reader up, and
communicating with its host.
1. Configure the Base Station starting on this page.
2. Charge the Batteries (see page 8).
3. Link to the Base Station (see page 10).
4. Select the Interface Type (see page 21).
5. Configure the Reader starting on page 14 (optional,
depends on settings needed).
Locking the Reader to the Base
The Base Station provides a locking mechanism to ensure
electrical contact between Reader and Base, in case of inad-
vertent movements.

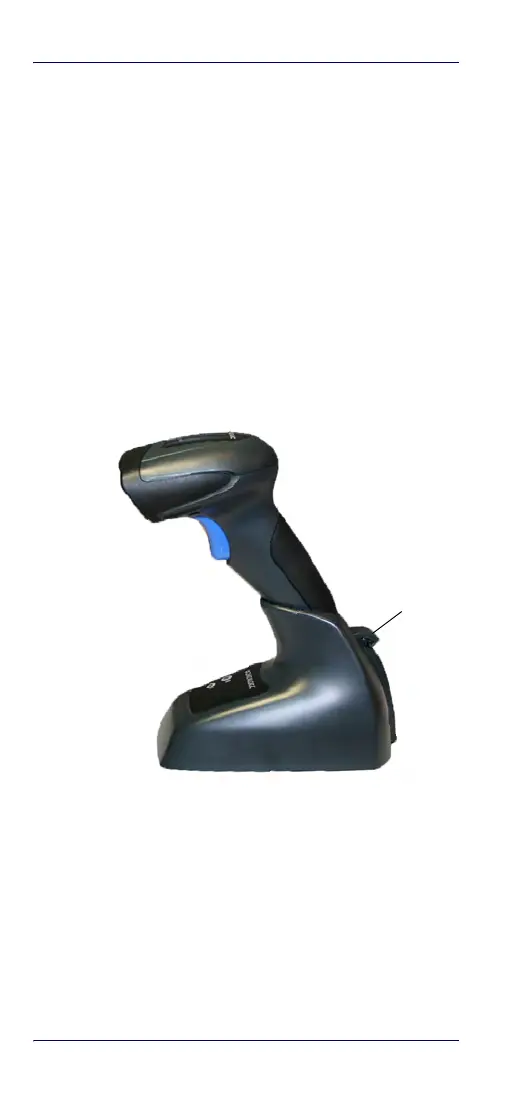

To Lock the Reader in the Base
1. Insert the Reader into the Base. The lock lever rests
in its natural disengaged position toward the bot-
tom of the Base.
