Datalogic QuickScan QD2500 User Manual

Setting Up the Reader
QUICK REFERENCE GUIDE 5
SETTING UP THE READER
Follow the steps below to connect and get your reader up
and communicating with its host.
1. First connect the Cable to the reader then to the Host
as shown below.
2. Configure the Interface (see page 11).
3. Program the Reader starting on page page 19
(optional, as needed).

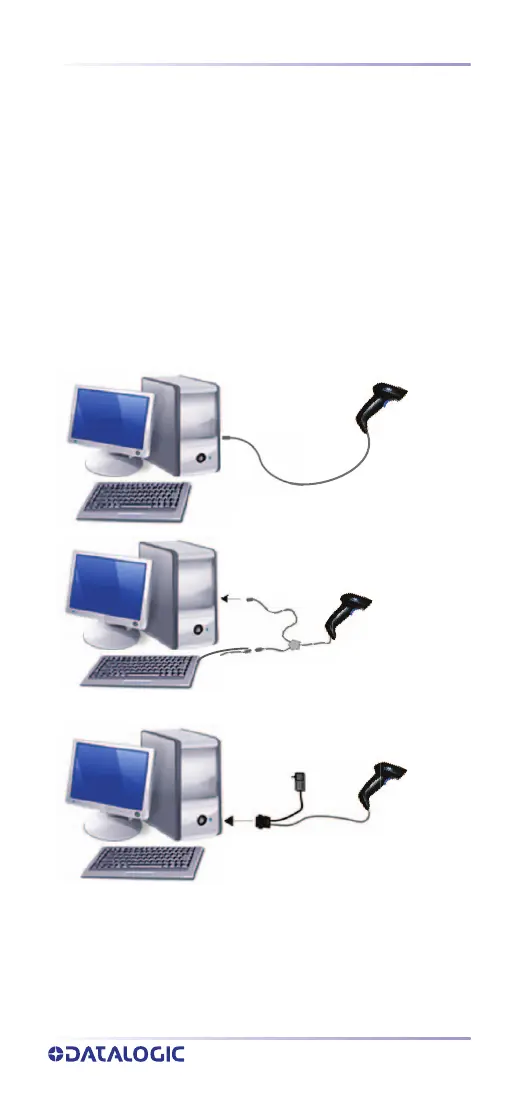

Connecting to the Host Interface
USB
WEDGE
Available only for QuickScan
™
QD2500
RS-232
Available only for QuickScan
™
QD2500

Datalogic QuickScan QD2500 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code
Input voltage	5 V
Power source type	DC, USB
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Cables included	USB Type-C
Keys quantity	1 keys
Product color	Black
LED indicators	Yes
Protection features	Shock resistant, Water resistant
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	68 mm
Width	148 mm
Height	126 mm
Weight	145 g
