Datalogic QuickScan QD2500 User Manual

Parts of the Reader
10 QUICKSCAN™ 2500
PARTS OF THE READER

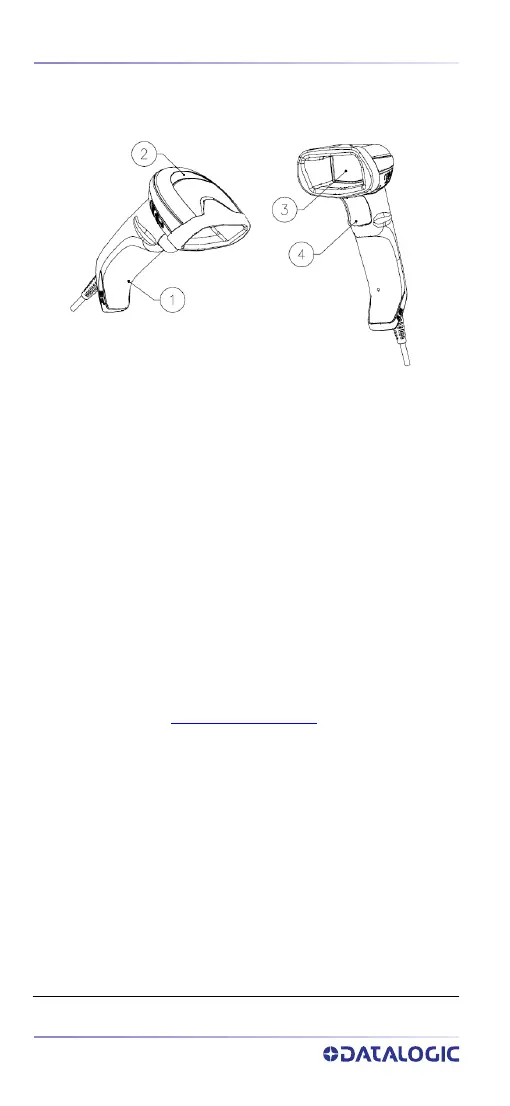

1. Cable Release Hole 2. LED
3. Scan Window 4. Trigger
SELECTING THE INTERFACE TYPE
Upon completing the physical connection between the
reader and its host, proceed directly to Interface Selection
below for information and programming for the interface
type supported by the reader and scan the appropriate
bar code to select your system’s correct interface type,
according to your application.
For interfaces other than those
listed in this manual, see
the QuickScan™ 2500 Product Reference Guide
(PRG),
available online at
www.datalogic.com.
Interface Selection
The reader will support all the following host interfaces:
• R
S-232 STD
1
• RS-232 WN
1
• IBM46XX port 9b (a specific cable's required)
1
• USB HID POS
• USB T
oshiba TEC
• USB (K
eyboard, COM, OEM)
1. Available only for QuickScan™ QD2500

Datalogic QuickScan QD2500 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code
Input voltage	5 V
Power source type	DC, USB
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Cables included	USB Type-C
Keys quantity	1 keys
Product color	Black
LED indicators	Yes
Protection features	Shock resistant, Water resistant
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	68 mm
Width	148 mm
Height	126 mm
Weight	145 g
