Using the QuickScan™ 2500
QUICK REFERENCE GUIDE 7
USING THE QUICKSCAN™ 2500
The QuickScan™ QD2500 and QW2500 normally function
by capturing and decoding codes. The reader is equipped
with an internal Motionix™ motion-sensing function
which activates the aiming system on device motion. The
intelligent aiming system indicates the field of view which
should be positioned over the bar code.
QuickScan™ QD2500

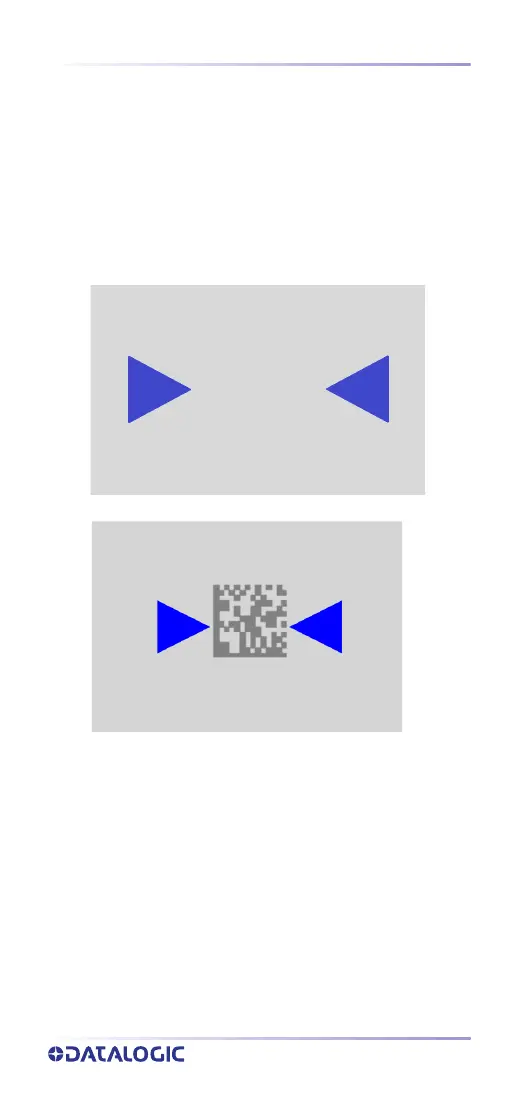

QuickScan™ QD2500’s Aiming System
Relative Size and Location of QuickScan™
QD2500’s Aiming System Pattern on 2D Matrix
Symbol

Datalogic QuickScan QD2500 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code
Input voltage	5 V
Power source type	DC, USB
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Cables included	USB Type-C
Keys quantity	1 keys
Product color	Black
LED indicators	Yes
Protection features	Shock resistant, Water resistant
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	68 mm
Width	148 mm
Height	126 mm
Weight	145 g
