Datalogic QuickScan QD2500 User Manual

QuickScan™ QW2500’s Aiming System
QUICK REFERENCE GUIDE 9

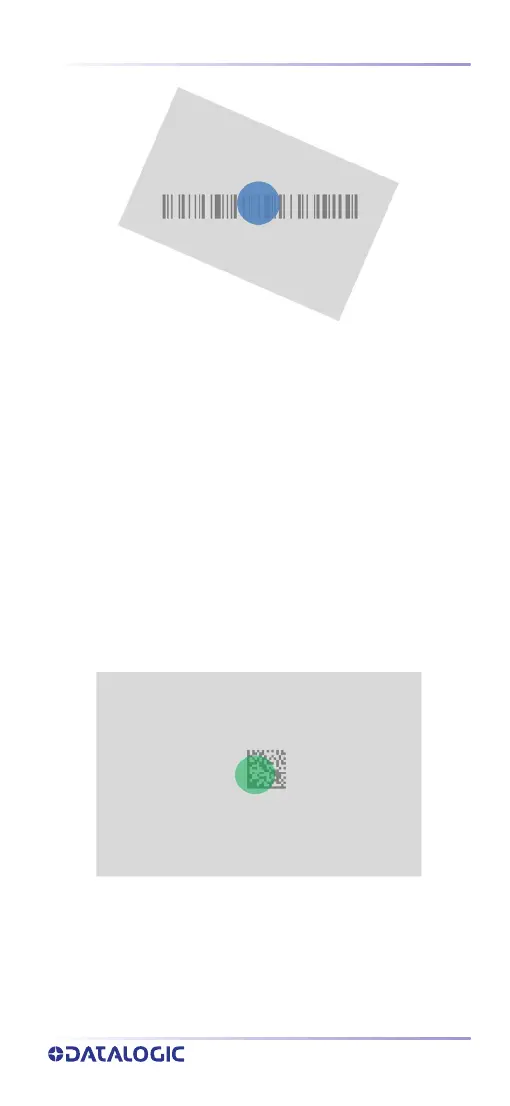

Relative Size and Location of QuickScan™
QW2500’s Aiming System Pattern on Linear bar
code
A beam illuminates the label. The projected pattern of the
aiming system will be smaller when the reader is closer to
the bar code and larger when it is farther from the code.
Symbologies with smaller bars or elements (mil size)
should be read closer to the unit. Symbologies with larger
bars or elements (mil size) should be read farther from the
unit. If the aiming system is centered you will get a good
read. Successful reading is signaled by an audible tone
plus a goodread green spot LED indicator. Reference the
QuickScan
™
2500 Product Reference Guide (PRG) on the
Datalogic website for more information about this feature
and other programmable settings.
Relative Size and Location of Green Spot (QD2500
and QW2500)

Datalogic QuickScan QD2500 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code
Input voltage	5 V
Power source type	DC, USB
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Cables included	USB Type-C
Keys quantity	1 keys
Product color	Black
LED indicators	Yes
Protection features	Shock resistant, Water resistant
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	68 mm
Width	148 mm
Height	126 mm
Weight	145 g
