4.4 ALTERNATIVE TOPOLOGIES
The 7000 controller is factory configured to connect to a 3 phase, 4 wire Star connected alternator. This section
details connections for alternative AC topologies. Ensure to configure the 7000 series controller to suit the required
topology.
NOTE:- Further details of module configuration are contained within the DSE7000 Series configuration
software manual (DSE part number 057-077)

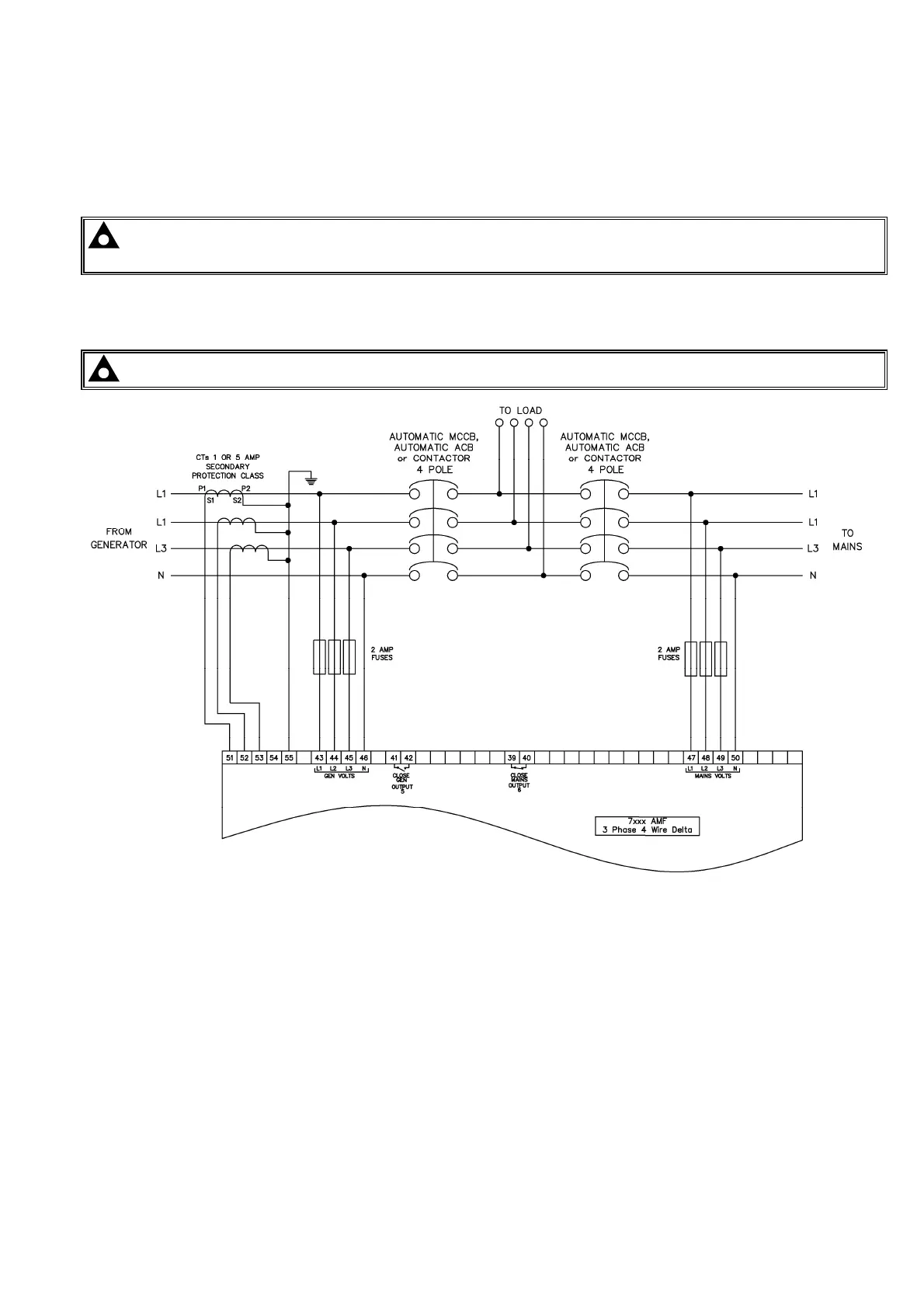

4.4.1 3 PHASE, 4 WIRE WITHOUT EARTH FAULT PROTECTION
NOTE:- Mains sensing (Terminals 47-50) is not fitted to DSE7210/ DSE7310 autostart controllers.
