DSE Model 7000 Series Control & Instrumentation System Operators Manual
Part No. 057-074 7000 Series OPERATING MANUAL ISSUE 2 02/05/2008 ADM
43
5.4 VIEWING THE INSTRUMENTS
It is possible to scroll to display the different pages of information by repeatedly operating the next page
button.
Once selected the page will remain on the LCD display until the user selects a different page or after an extended
period of inactivity, the module will revert to the status display.
If no buttons are pressed upon entering an instrumentation page, the instruments will be displayed automatically
subject to the setting of the Scroll Delay.
Alternatively, to scroll manually through all instruments on the currently selected page, press the scroll or
buttons. The ‘autoscroll’ is disabled.
To re-enable ‘autoscroll’ press the or buttons to scroll to the ‘title’ of the instrumentation page (ie
Engine).
When scrolling manually, the display will automatically return to the Status page if no buttons are pressed for the
duration of the configurable LCD Page Timer.
If an alarm becomes active while viewing the status page, the display shows the Alarms page to draw the operator’s
attention to the alarm condition.

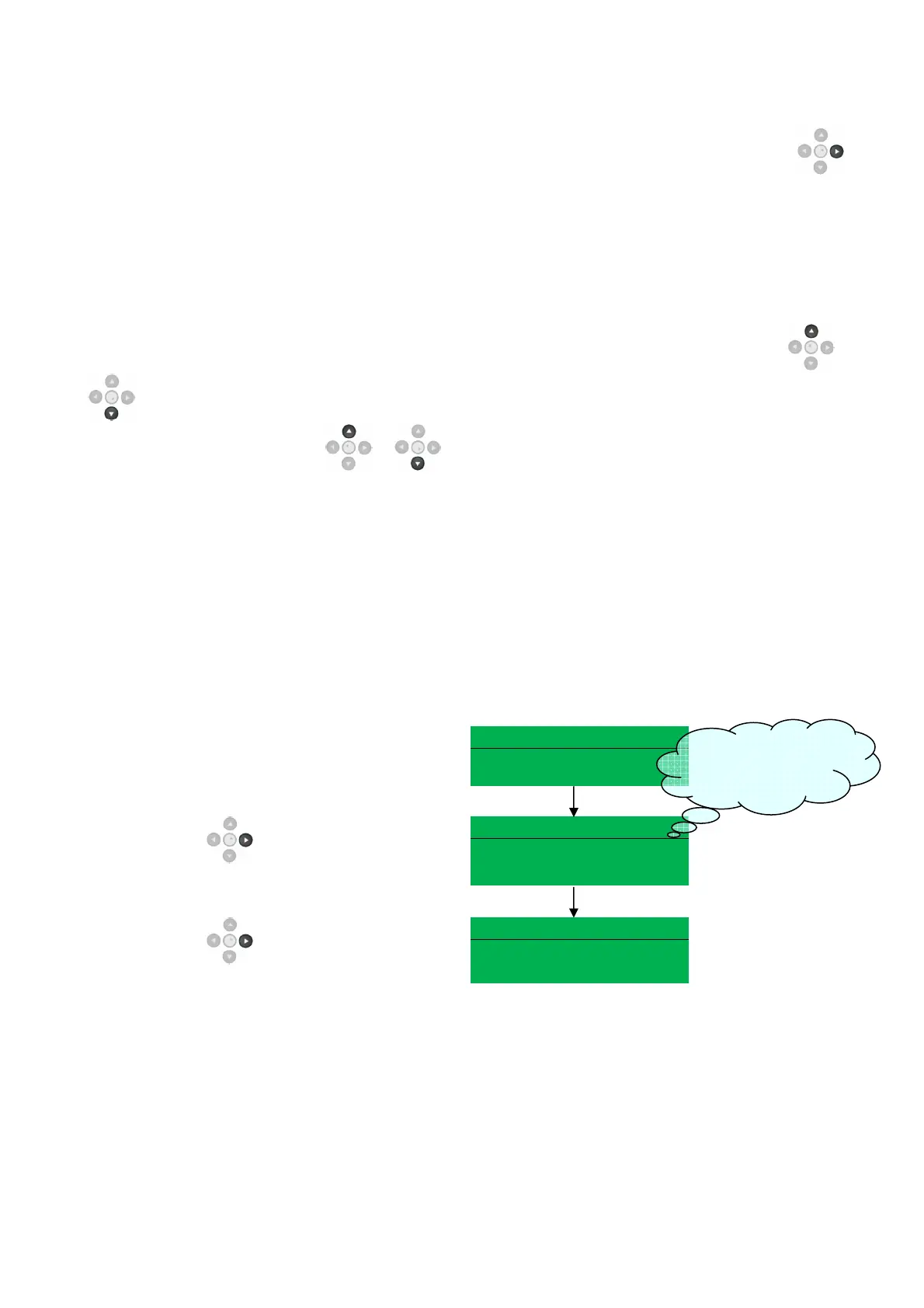

Page order:-
Status, Engine, Generator, Mains, Alarms, ECU DTCs (electronic engines only), Event log, Scheduler (if enabled),
About.
First page -
Status
Press to change to the next page -
Engine
Press to change to the next page -
Generator
If you want to view one of the
instruments towards the end of
the list, it may be quicker to
scroll up through the
To Next Page
