15.4 COMMUNICATIONS OPTION CONNECTIONS
15.4.1 DESCRIPTION
The 7000 series configuration software allows the controller to communicate with a PC. The computer connects to
the module as shown below. The operator is then able to control the module, starting or stopping the generator,
selecting operating modes, etc.
The various operating parameters (such as output volts, oil pressure, etc.) of the remote generator can be viewed.

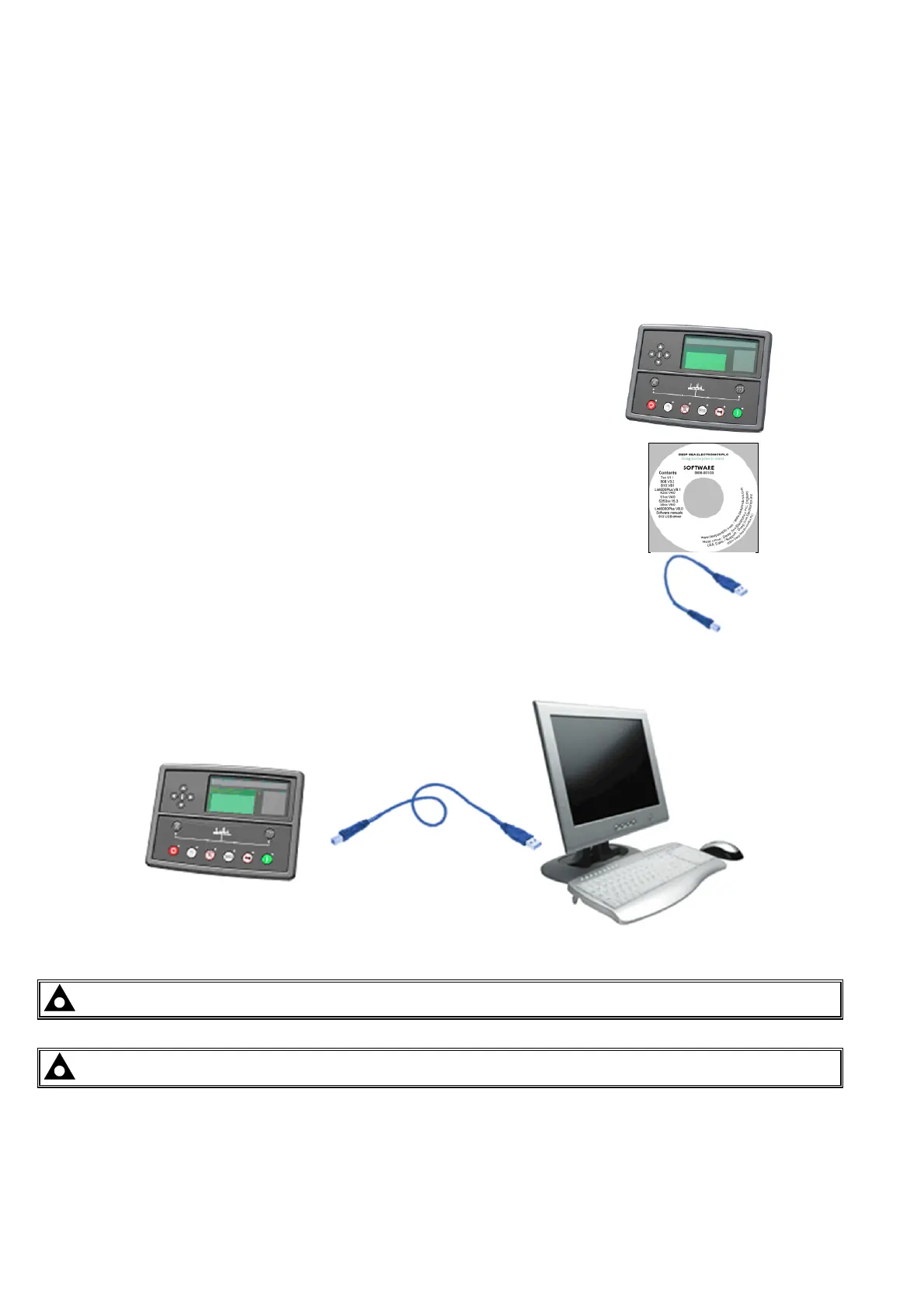

15.4.2 PC TO CONTROLLER (DIRECT) CONNECTION
To connect a 7000 series module to a PC the following items are required: -
• 7000 series module
• 7000 series configuration software (Supplied on configuration suite
software CD).
• USB cable Type A to Type B.
NOTE:- The DC supply must be connected to the module for configuration by PC.
NOTE:- Refer to 7xxx software Manual for further details on configuring, monitoring and control.
