Dell 3115CN - Page 371

2 - 30
Chapter 2 Operation of Diag.
Version 1 2006.11.21
DO-37 ADC (CTD) Sensor Solenoid
DO-39 ADC (CTD) Sensor LED
DO-3b OHP LED (Not Used)
DO-3d Black Erase Lamp
DO-3f Yellow, Magenta, Cyan Erase Lamp
DO-5b Exit Clutch
DO-5d Duplex Fan

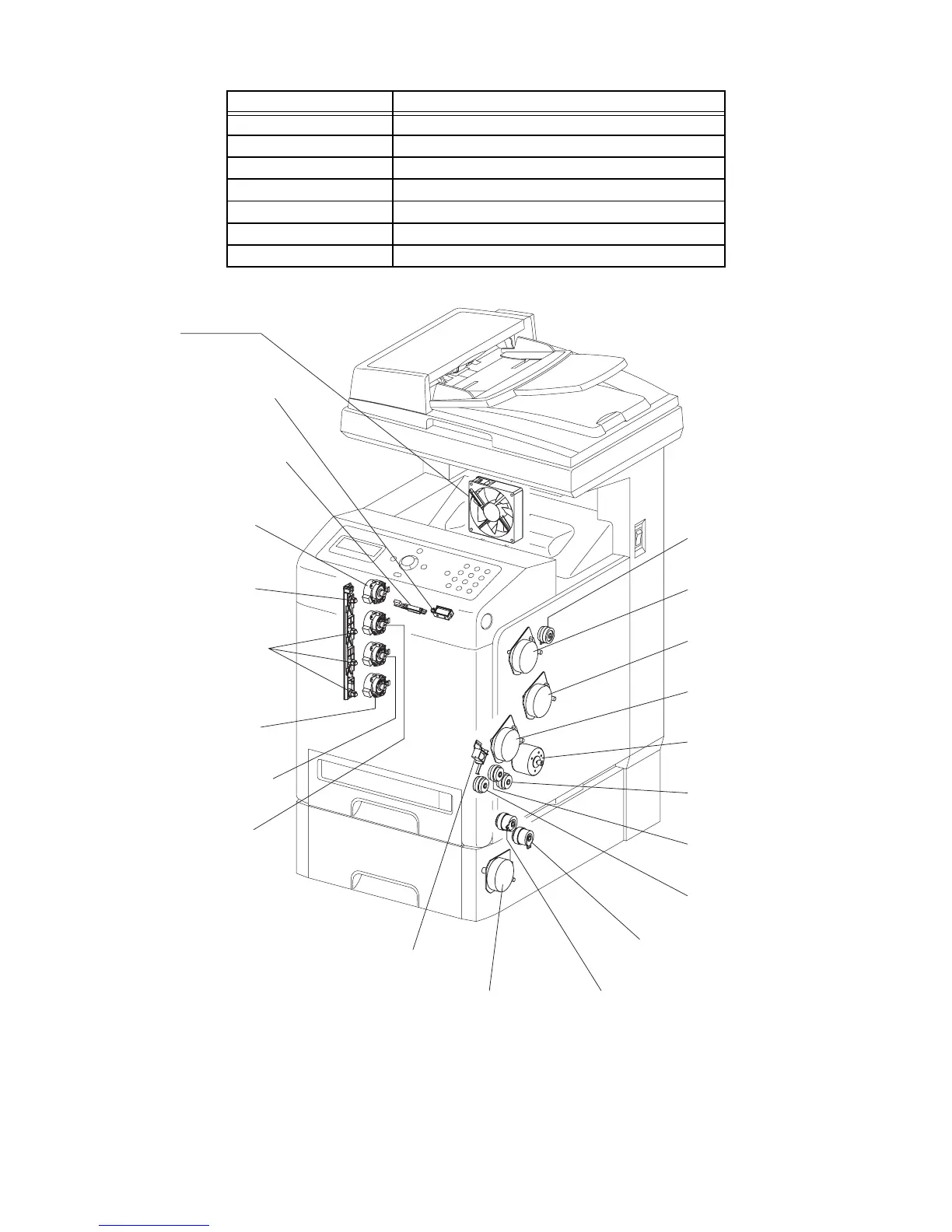

Code Components
Gnb02016KA
Main Motor
[DO-0/1/2/3]
Sub Motor
[DO-5/6/7/8]
Black Toner Motor
[DO-27]
Black Erase Lamp
[DO-3d]
Yellow, Magenta and
Cyan Erase Lamp
[DO-3f]
Yellow Toner Motor
[DO-21]
Magenta Toner Motor
[DO-23]
Cyan Toner Motor
[DO-25]
DEVE Motor
[DO-f/10/11]
PH Motor
[DO-a/b/c/d]
Tray 1 Feed Clutch
[DO-2f]
Regi Clutch
[DO-29]
MPF Turn Clutch
[DO-2b]
Tray 2 Feed Clutch
[DO-31]
MPF Feed Solenoid
[DO-2d]
Exit Clutch
[DO-5b]
Tray 2 Turn Clutch
[DO-33]
Tray 2 Feed Motor
[DO-19/1a/1b/1c]
ADC Sensor Solenoid
[DO-37]
LED on the ADC Sensor
[DO-39]
Fan
[DO-1e/1f]
