Dell 3115CN User Manual

3 - 86
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

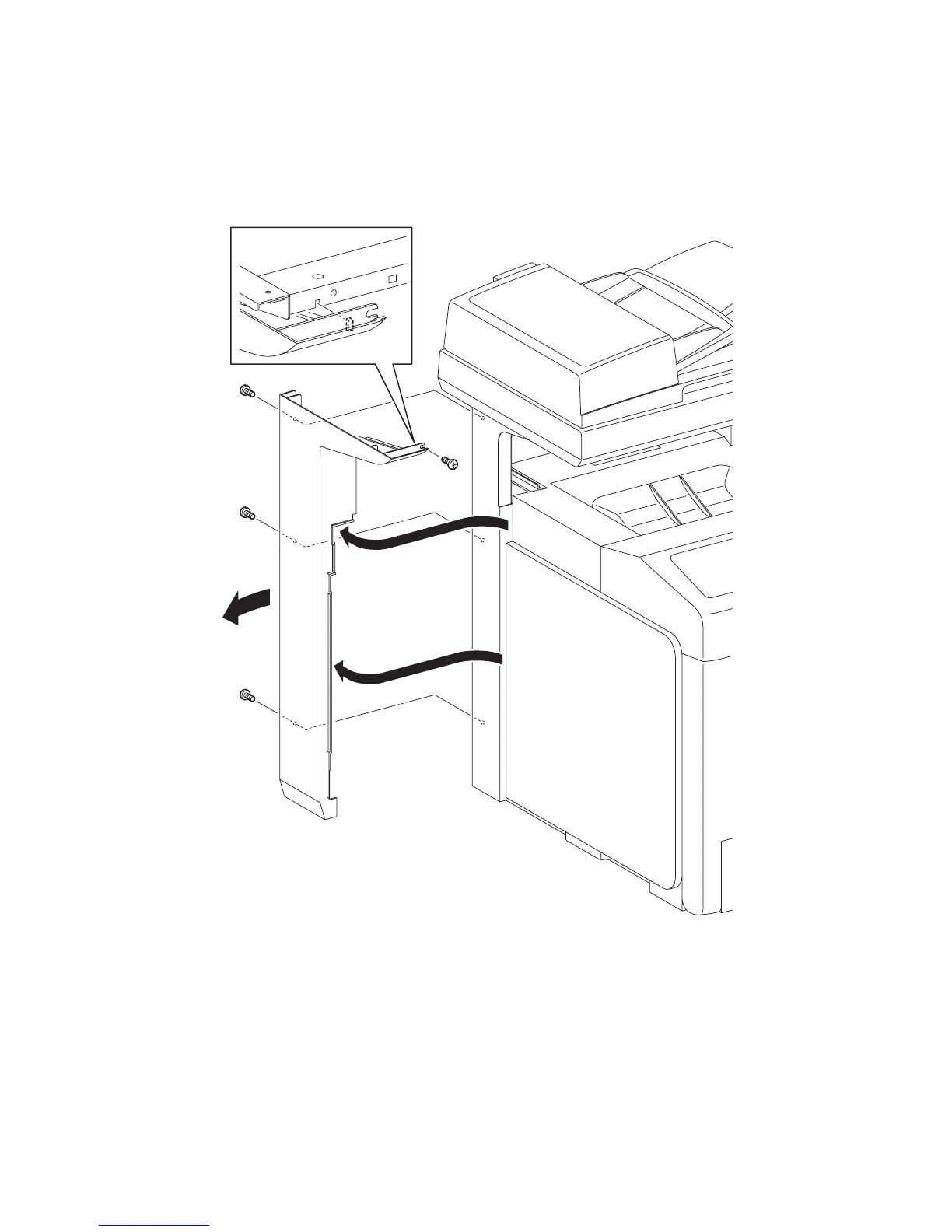

Removal 58 COVER POLE L (PL13.1.11)
Steps 1 through 3 are for reference. Before removing this component, check that Steps 1 through 3
have been performed.
1) Remove the REAR COVER. (Removal 49)
2) Remove the COVER BOTTOM. (Removal 50)
3) Remove the COVER POLE IN L. (Removal 57)
4) Remove the four screws (silver, 6mm) that fix the COVER POLE L (PL13.1.11) to the printer.
5) Release from the printer the lugs on the screw mounting positions on the front section of the
COVER POLE L.
6) Slide the rear section of the COVER POLE L outward.
7) Remove the COVER POLE L from the printer by releasing the rim on the front section of the
COVER POLE L from the TOP COVER (PL13.1.1) and from the inside of the LEFT COVER
(PL13.1.10).
Go to the next removal steps:
Removal 59 LEFT COVER (PL13.1.10) or Removal 60 BOX ASSY PRT AIO (PL13.4.13)
Gnb03165KA
4)
4)
4)
6)
7)
7)
4)
5)

Dell 3115CN Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	16 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (color, normal quality, A4/US Letter)	17 ppm
Digital sender	No
Maximum duty cycle	60000 pages per month
Number of print cartridges	4
Scanner type	Flatbed scanner
PC free copying	Yes
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Multi-Purpose tray input capacity	150 sheets
Sound power level (standby)	40 dB
Sound pressure level (printing)	52 dB
Display	LCD
Market positioning	Business
Safety	IEC/EN60950-1:2001; IEC60825-1; CE Mark (EU); NEMKO; GS Mark; GOST & Hygienic; SASO; SABS; UL/cUL Listed; FDA/DHHS
Dimensions (WxDxH)	460 x 570 x 730 mm
Power requirements	220-240V, 47 - 63 Hz
Networking features	Ethernet 10/100 BaseT
Wireless technology	IEEE 802.11b/g
All-in-one functions	Copy, Fax, Scan
Maximum internal memory	1152 GB
Color all-in-one functions	print, scan
Compatible operating systems	Windows Vista/Vista x64, Microsoft Windows XP SP1-2, XP 64 bit, NT 4.0 SP6a, 2000 SP2-4, Server 2003 SP1, Server 2003 x64, Mac OS X, UNIX (SolarisTM 10, HP-UX11i), Linux (Red Hat 8/9, SuSE 9, TurboLinux 10)
Paper tray media types	Card stock, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	DellTCP/IP & UDP/IP (LPD, Port9100, IPP6, SMB6, Netware v 5, FTP, HTTP, HTTPS6, RARP, AutoIP, WINS6, SMTP, FTP, DDNS6, SNMP, DHCP, BOOTP, mDNS6); NetBEUI (SMB6); Netware P-server6; Ethertalk6; AppleTalk
Standard interfaces	USB 2.0
Bundled software	ScanSoft PaperPort v10, Dell Printer Configuration Web Tool, Dell Colour Track 2, Dell Toner Management System
Sustainability certificates	ENERGY STAR
Power consumption (off)	0 W
Power consumption (standby)	108 W
Power consumption (PowerSave)	18 W
Power consumption (average operating)	465 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	5 - 32 °C
Storage relative humidity (H-H)	15 - 80 %
Operating relative humidity (H-H)	15 - 85 %
Certification	CE; EN55022:1994 Class B+A1:1995+A2:1997; EN61000-3-2:2000+A2:2005; EN 61000-3-3:1995+A1:2001; EN55024:1998+A1:2001+A2:2003; FCC CFR; ICES-003; GOST; SABS
