Dell 3115CN User Manual

3 - 184
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Replacement 50 ADF SCANNER ASSY (PL13.8.1)

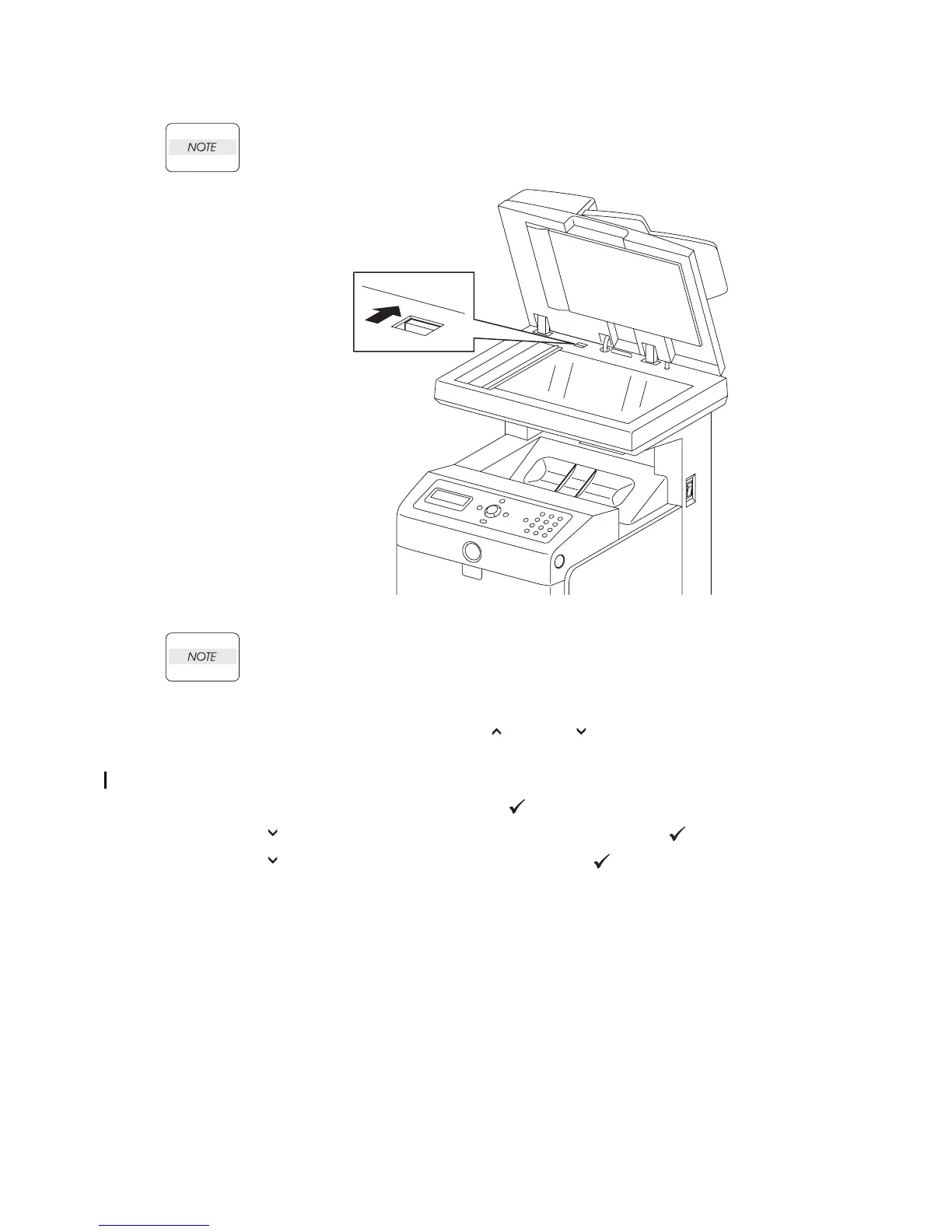

After all the replacement procedures (Replacement 75) are completed, open the ADF
ASSY and move the carriage locking lever rearward to the releasing position.
Steps 17) through 31) described below are the adjustment procedure to be performed
after the ADF SCANNER ASSY is replaced.
18) Engage the power code with the printer and the outlet.
19) Turn on the power while holding down the " " and the " " keys.
20) Release the keys when "Please wait…" is displayed.
21) In "Customer Mode", "FAX/Scanner Diag" and "Printer Diag" are displayed.
22) Select the "FAX/Scanner Diag" and press the " " key.
23) Press the " " key to select the "Scanner Maintenance" and press the " " key.
24) Press the " " key to select the "Parameter" and press the " " key.
Gnb03230KA

Dell 3115CN Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	16 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (color, normal quality, A4/US Letter)	17 ppm
Digital sender	No
Maximum duty cycle	60000 pages per month
Number of print cartridges	4
Scanner type	Flatbed scanner
PC free copying	Yes
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Multi-Purpose tray input capacity	150 sheets
Sound power level (standby)	40 dB
Sound pressure level (printing)	52 dB
Display	LCD
Market positioning	Business
Safety	IEC/EN60950-1:2001; IEC60825-1; CE Mark (EU); NEMKO; GS Mark; GOST & Hygienic; SASO; SABS; UL/cUL Listed; FDA/DHHS
Dimensions (WxDxH)	460 x 570 x 730 mm
Power requirements	220-240V, 47 - 63 Hz
Networking features	Ethernet 10/100 BaseT
Wireless technology	IEEE 802.11b/g
All-in-one functions	Copy, Fax, Scan
Maximum internal memory	1152 GB
Color all-in-one functions	print, scan
Compatible operating systems	Windows Vista/Vista x64, Microsoft Windows XP SP1-2, XP 64 bit, NT 4.0 SP6a, 2000 SP2-4, Server 2003 SP1, Server 2003 x64, Mac OS X, UNIX (SolarisTM 10, HP-UX11i), Linux (Red Hat 8/9, SuSE 9, TurboLinux 10)
Paper tray media types	Card stock, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	DellTCP/IP & UDP/IP (LPD, Port9100, IPP6, SMB6, Netware v 5, FTP, HTTP, HTTPS6, RARP, AutoIP, WINS6, SMTP, FTP, DDNS6, SNMP, DHCP, BOOTP, mDNS6); NetBEUI (SMB6); Netware P-server6; Ethertalk6; AppleTalk
Standard interfaces	USB 2.0
Bundled software	ScanSoft PaperPort v10, Dell Printer Configuration Web Tool, Dell Colour Track 2, Dell Toner Management System
Sustainability certificates	ENERGY STAR
Power consumption (off)	0 W
Power consumption (standby)	108 W
Power consumption (PowerSave)	18 W
Power consumption (average operating)	465 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	5 - 32 °C
Storage relative humidity (H-H)	15 - 80 %
Operating relative humidity (H-H)	15 - 85 %
Certification	CE; EN55022:1994 Class B+A1:1995+A2:1997; EN61000-3-2:2000+A2:2005; EN 61000-3-3:1995+A1:2001; EN55024:1998+A1:2001+A2:2003; FCC CFR; ICES-003; GOST; SABS
